Quick Details
-
Size:
-
13024*3244*3830 mm
-
Place of Origin:
-
Shandong, China
-
Function:
-
lpg tanker
-
Inner diameter:
-
3200mm
-
Overall dimensions:
-
13024*3244*3830 mm
-
Designing pressure:
-
1.91 Mpa
-
Working pressure:
-
1.61 Mpa
-
Filling medium:
-
Liquid petroleum/propane gas
-
Curb weight:
-
49400kg
-
Full capacity:
-
100m³
-
Heat treatment:
-
Bulk
-
Filling factor:
-
520 Kg/ m³
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
Chengda
-
Size:
-
13024*3244*3830 mm
-
Place of Origin:
-
Shandong, China
-
Function:
-
lpg tanker
-
Inner diameter:
-
3200mm
-
Overall dimensions:
-
13024*3244*3830 mm
-
Designing pressure:
-
1.91 Mpa
-
Working pressure:
-
1.61 Mpa
-
Filling medium:
-
Liquid petroleum/propane gas
-
Curb weight:
-
49400kg
-
Full capacity:
-
100m³
-
Heat treatment:
-
Bulk
-
Filling factor:
-
520 Kg/ m³
Product Description

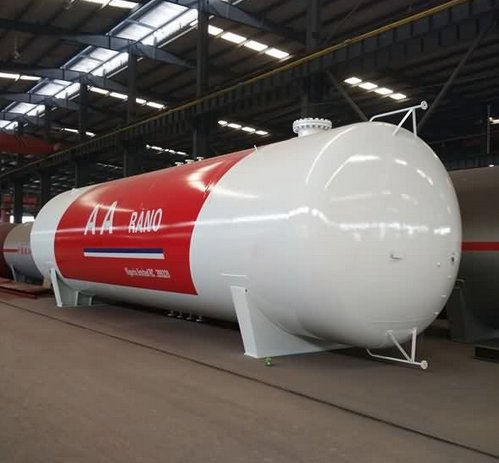

100m3
LPG storage tank
|
Technical Specification
|
|
Parameter
|
|
|
Tank
|
Tank name
|
LPG storage tank
|
|
|
|
Overall dimensions
|
13024*3244*3830 mm
|
|
|
|
Inner diameter
|
3200mm
|
|
|
|
Vessel type
|
on the ground
|
|
|
|
Designing pressure
|
1.91 Mpa
|
|
|
|
Working pressure
|
1.61 Mpa
|
|
|
|
|
|
|
|
|
Designing temperature
|
-19~50
|
|
|
|
Filling medium
|
Liquid petroleum/propane gas
|
|
|
|
Corrosion margin
|
1.00 mm
|
|
|
|
Curb weight
|
49400kg
|
|
|
|
Full capacity
|
100m³
|
|
|
|
Heat treatment
|
Bulk
|
|
|
|
Filling factor
|
520 Kg/ m³
|
|
|
|
Tanker & pressure parts material
|
Q345R
|
|
|
|
Hydraulic test pressure
|
2.22 Mpa
|
|
|
|
Gas tight test pressure
|
1.91 Mpa
|
|
|
|
Produce standard
|
ASME standard and GB150 standard
|
|
|
|
Optional accessories
|
safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc.
|
|
|
Liquid indicator
|
Model
|
UHZ-518C14
|
|
|
|
Version
|
Magnetic
|
|
|
|
Nominal pressure
|
2.5 Mpa
|
|
|
|
Scope of testing
|
50~2500 mm
|
|
|
|
precision
|
2.5
|
|
|
Safety Valve
|
Model
|
A42F-2.5-80
|
|
|
|
Version
|
Built-in
|
|
|
|
Nominal pressure
|
2.5 Mpa
|
|
|
|
Nominal radius
|
DN80
|
|
|
|
Opening pressure
|
1.68-1.76 Mpa
|
|
|
|
Re-seating pressure
|
≥0.8 Mpa opening pressure
|
|
|
Handling System
|
Feed pipe
|
DN80
|
|
|
|
Drain pipe
|
DN80
|
|
|
|
Admission port
|
DN50
|
|
|
|
Sewage outfall port
|
DN80
|
|
|
|
Vent nozzle port
|
DN80
|
|
Details Images
Packing & Delivery
Container
Simplified packaging for container shipments reduces damage and reduces the likelihood and efficiency of errors in the quantity of goods.
Bulk ship
High discharge efficiency, low requirement for terminal construction, more maneuverable and flexible.
Ro-ro ship
Efficient handling, reduced docking time, increased ship utilization and greater adaptability to carry special cargo and large cargo.
