Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weierqi
-
Product Name:
-
German Type Suspension
-
Application:
-
Trailer Truck Used
-
Quality:
-
100% Guaranteed
-
Logo:
-
Customized Logo
-
Package:
-
Standard Package
-
Surface treatment:
-
Painting
-
Material:
-
Steel
-
Spring thickness:
-
12mm
-
OEM:
-
OEM Accepted
-
Color:
-
Customized Color
Quick Details
-
OE NO.:
-
Customized
-
Max Payload:
-
Customized
-
Size:
-
Customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weierqi
-
Product Name:
-
German Type Suspension
-
Application:
-
Trailer Truck Used
-
Quality:
-
100% Guaranteed
-
Logo:
-
Customized Logo
-
Package:
-
Standard Package
-
Surface treatment:
-
Painting
-
Material:
-
Steel
-
Spring thickness:
-
12mm
-
OEM:
-
OEM Accepted
-
Color:
-
Customized Color

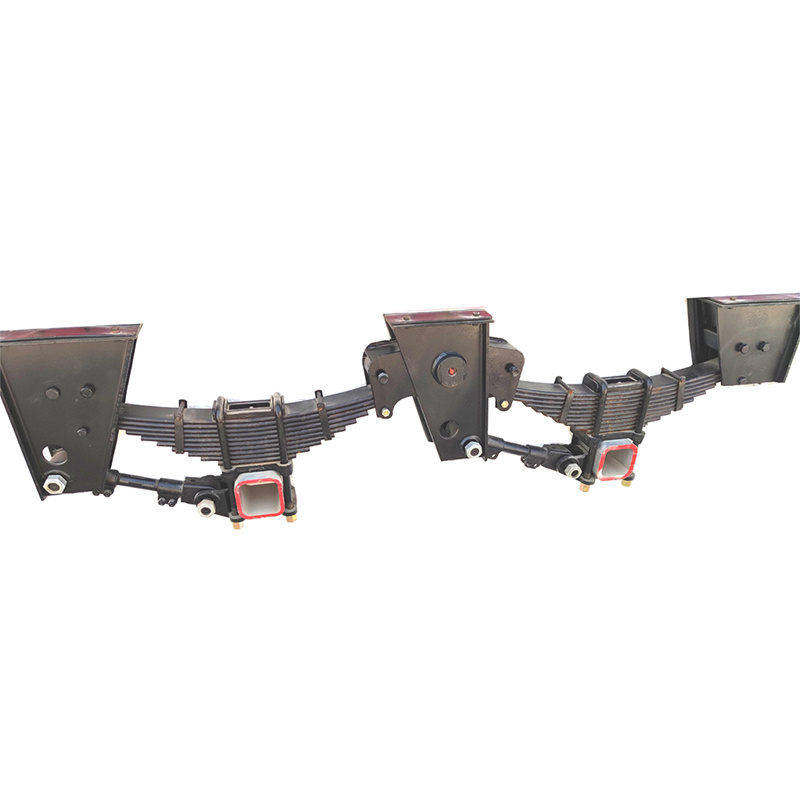

Product Description
Semi-trailer suspension effectively reduces the severe vibration during vehicle operation and ensures the best braking performance of the vehicle. And suspension can be matched with different width/thickness/number of pieces, we can recommend the number of leaf springs according to the load. Use high quality steel, long life and large load.
|
Model
|
Height Of Towing Plate
|
L1
(mm) |
L2
(mm) |
L3
(mm) |
L4
(mm) |
L5
(mm) |
H
(mm) |
|||||||
|
2/3180
|
1180
|
485
|
1310
|
495
|
1135
|
1155
|
180
|
|||||||
|
2/3230
|
1230
|
485
|
1310
|
495
|
1135
|
1155
|
230
|
|||||||
|
2/3270
|
1270
|
485
|
1310
|
495
|
1135
|
1155
|
270
|
|||||||
|
2/3320
|
1320
|
485
|
1310
|
495
|
1135
|
1155
|
320
|
|||||||
|
1. Can be equipped with 13/16/20T axles.
2. Can be equipped with round shaft/square shaft. 3. You can choose front/reverse installation. 4. Can choose the leaf spring specification. |
|
|
|
|
|
|
|
|||||||
|
Model
|
NO.of spring piece
|
Spring thickness
|
A
|
B
|
C
|
D
|
E
|
|
01-2900A
|
12
|
12mm
|
490mm
|
440mm
|
639mm
|
/
|
/
|
|
01-2900B
|
14
|
12mm
|
515mm
|
465mm
|
636.5mm
|
/
|
/
|
|
02-2900A
|
12
|
12mm
|
490mm
|
440mm
|
1320mm
|
639mm
|
/
|
|
02-2900B
|
14
|
12mm
|
515mm
|
465mm
|
1318mm
|
636.5mm
|
/
|
|
03-2900A
|
12
|
12mm
|
490mm
|
440mm
|
1320mm
|
639mm
|
4000mm
|
|
03-2900B
|
14
|
12mm
|
515mm
|
465mm
|
1318mm
|
636.5mm
|
4010mm
|
|
Model
|
H
(mm) |
Offset Distance
(mm) |
Axle Spacing
(mm) |
Air Bag Spec
(mm) |
Axle Load
(kg) |
|||||
|
GAS-38010
|
380
|
90
|
1220-1360
|
∅360
|
10000
|
|||||
|
GAS-43012
|
430
|
90
|
1220-1360
|
∅360
|
12000
|
|||||
|
GAS-48012
|
480
|
90
|
1220-1360
|
∅360
|
12000
|
|||||
|
GAS-38013
|
380
|
90
|
1220-1360
|
∅360
|
13000
|
|||||
|
GAS-43013
|
430
|
90
|
1220-1360
|
∅360
|
13000
|
|||||
|
GAS-48013
|
480
|
90
|
1220-1360
|
∅360
|
13000
|
|||||
|
1. It can be equipped with lifting air suspension according to customer requirements.
2. According to customer requirements, there are reverse/formal air suspensions. |
|
|
|
|
|
|||||
|
Model
|
Capacity
(kg) |
Bearing
|
Axle Tube
(mm) |
Brake Lining Size
|
Dual Spacing
(mm) |
Tyre Screw
|
Track
(mm) |
Spring Center
(mm) |
|
DC24
|
2400
|
33213
33118 |
150*150*12
|
φ420*200
|
1850
|
10-M22*1.5
|
1400
|
980
|
|
DC24
|
2800
|
33215
33119 |
150*150*14
|
φ420*200
|
1850
|
10-M22*1.5
|
1550
|
900
|
|
DC24
|
3200
|
32314
32222 |
150*150*16
|
φ420*200
|
1850
|
10-M22*1.5
|
1550
|
900
|
Product Display
Product Details
Product Application
Packaging & Shipping
Take Delivery:
All the product will be fully tested before shipment. Professional operation instruction of the machine.one-year warranty provided, provide the consumable parts at cost price after the warranty period. 24-hour technical support by emails, calling or videos.
