Quick Details
-
Model Number:
-
HK60-Q-WT Ball Valve
-
Brand Name:
-
COVNA
-
Customized support:
-
CE, ROHS, ISO9001
-
Type:
-
3 Way Ball Valves 4 inches, BALL VALVES
-
Control Mode:
-
ON/OFF Type or Regulation Type
-
Port Configuration:
-
3 Way L Port/L Port
-
Material:
-
SS304, SS316
-
Sealing Material:
-
PTFE
-
Pressure:
-
1.0~1.6MPa
-
Threaded Connection:
-
Tri Clamp, Welded
-
Voltage:
-
DC24V (±10%), AC110-220V, 50/60Hz
Quick Details
-
Port Size:
-
1/2"~4", DN15~DN100
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HK60-Q-WT Ball Valve
-
Brand Name:
-
COVNA
-
Customized support:
-
CE, ROHS, ISO9001
-
Type:
-
3 Way Ball Valves 4 inches, BALL VALVES
-
Control Mode:
-
ON/OFF Type or Regulation Type
-
Port Configuration:
-
3 Way L Port/L Port
-
Material:
-
SS304, SS316
-
Sealing Material:
-
PTFE
-
Pressure:
-
1.0~1.6MPa
-
Threaded Connection:
-
Tri Clamp, Welded
-
Voltage:
-
DC24V (±10%), AC110-220V, 50/60Hz
1

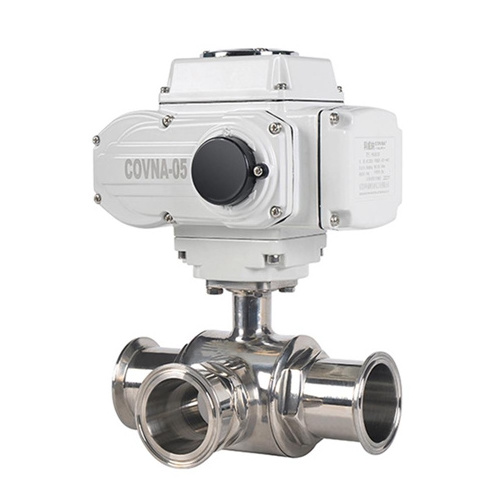

COVNA 2 inch 4 inches 3 Way Ball Valves Stainless Steel Sanitary Motorized Ball Valve 12V
Optional Protection Range :
It depends on the torque of actuator.
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Application: Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
Click here to ask more info about the quote and the catalog.
Technical Parameter for Actuator
Features Of COVNA Quarter-Turn Electric Actuator:
• Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
• High output torque up to 4000N.m
• Low failure rate, overloading protection
• ISO5211 mounting for ball and butterfly valve
• IP65 weather proof protection class for outdoor use
• Offering online technical support to help you install the actuator and valve
• 1 Year warranty
