Y2 series three-phase asynchronous motors,developed with new techniques,are renewal and upgrading products of series.
Y2 series motors are defined as totally enclosed,fan cooled,squirrel cage type and noted for their novel design,beautiful model,compact structured,low noise,high efficiency,large torque,excellent starting performance,easy serving,etc.The motors are adopted with F class insulation and designed with assessing method for insulation system according to international practice,it enhances greatly have reached and international advanced level of the same king of products at the initial days of the 90S.
Y2 series motors can be widely used as driving equipment of various machineries,such as machine tools,blowers,pumps,compressors,transporters,agricultural and food processing.Pedestal installation size and centre height and other indexes of the motor completely measures by Y series three-phase asynchronous motor.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TOPPER
-
Model Number:
-
Y2
-
Frequency:
-
50/60Hz
-
Product name:
-
induction motor
-
Application:
-
Machine Tool
-
Material:
-
Cast Iron
-
Mounting Position:
-
Foot Monted. Flange Mounted
-
Packing:
-
Wooden Box
-
Brand:
-
TOPPER
-
Output Power:
-
0.75-315KW
-
Voltage:
-
110/220/380/415/440/460/660
-
Color:
-
Customer Request
Quick Details
-
AC Voltage:
-
380V
-
Warranty:
-
1year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TOPPER
-
Model Number:
-
Y2
-
Frequency:
-
50/60Hz
-
Product name:
-
induction motor
-
Application:
-
Machine Tool
-
Material:
-
Cast Iron
-
Mounting Position:
-
Foot Monted. Flange Mounted
-
Packing:
-
Wooden Box
-
Brand:
-
TOPPER
-
Output Power:
-
0.75-315KW
-
Voltage:
-
110/220/380/415/440/460/660
-
Color:
-
Customer Request
Products Description

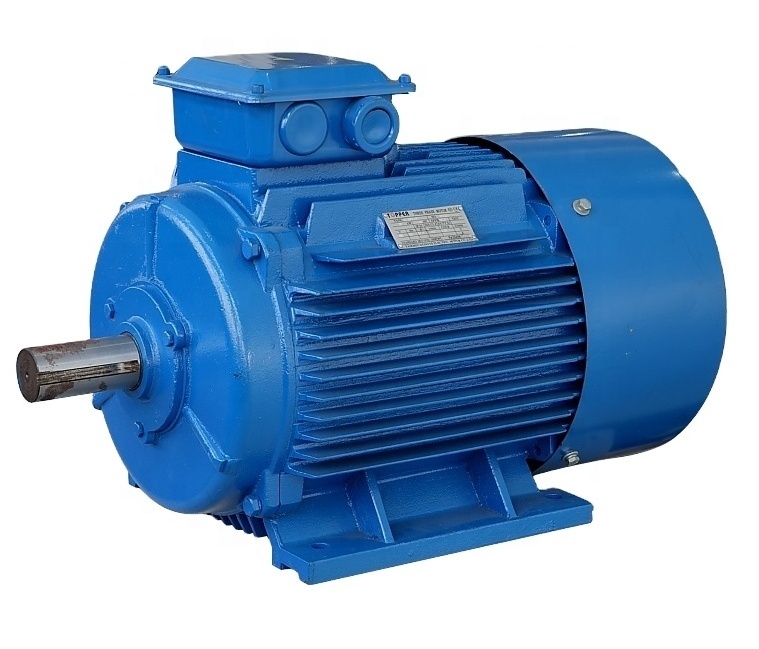

Y2 SERIES THREE-PHASE ASYNCHRONOUS INDUCTION MOTOR
Specification
|
Ambient temperature：
|
-15℃＜θ＜40℃
|
|
Altitude：
|
not exceeding 1000m
|
|
Rated voltage：
|
220/380V 230/440V 380/660V 400/690V
|
|
Rated frequency：
|
50Hz/60Hz
|
|
Protection class：
|
IP54/IP55
|
|
Insulation class：
|
B/F
|
|
Cooling method：
|
IC 411
|
|
Duty：
|
S1(continuous)
|
