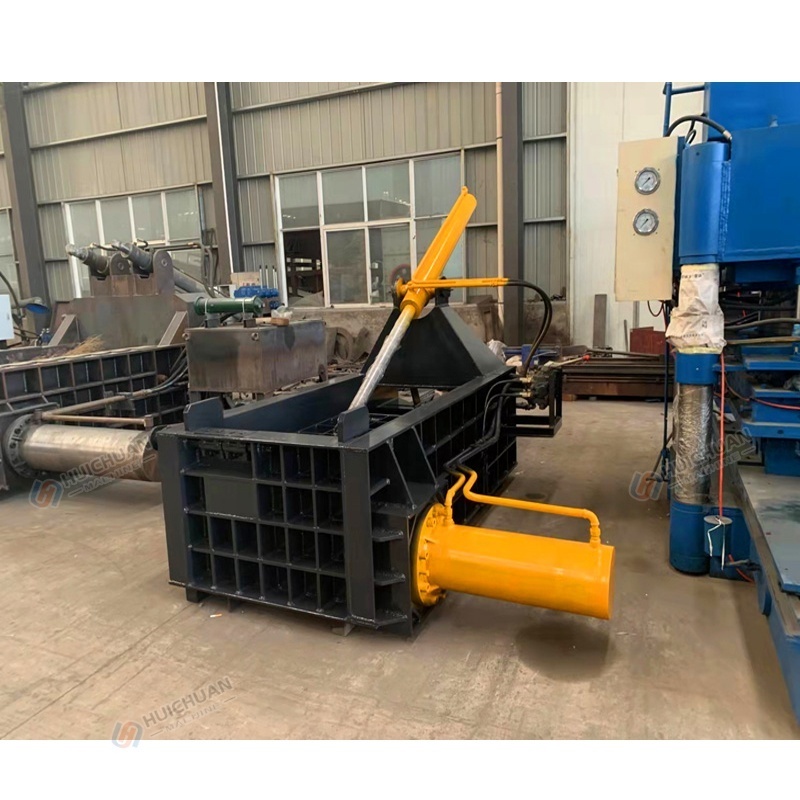

Shear Baler Machine Metal Compress Baler Machine Two Baler Ram Metal Horizontal 400,000 Hydraulic Scrap Metal New Product 2020

Shear Baler Machine Metal Compress Baler Machine Two Baler Ram Metal Horizontal 400,000 Hydraulic Scrap Metal New Product 2020

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4560

≥5 Pieces

US $4490

≥50 Pieces

US $4000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power (kW):: 7.5

Weight (KG):: 3500

Model:: UDSFD-56

Output:: 500 500

Nominal Pressure:: 630KN

Press box size:: 1000*600*500mm

Bale weight:: 15-30kg

Power:: 7.5kw

Bale dimension:: 190*190mm

Type of bale out:: Scrap Metal Baler Recycling Machine

Certification:: CE.ISO

Capacity:: 2.5-4 Tons

Quick Details

Place of Origin:: Shandong

Brand Name:: Huichuan

Model Number:: UDSFD-56

Power (kW):: 7.5

Weight (KG):: 3500

Model:: UDSFD-56

Output:: 500 500

Nominal Pressure:: 630KN

Press box size:: 1000*600*500mm

Bale weight:: 15-30kg

Power:: 7.5kw

Bale dimension:: 190*190mm

Type of bale out:: Scrap Metal Baler Recycling Machine

Certification:: CE.ISO

Capacity:: 2.5-4 Tons

Products Flow Chart

Specification

Two Baler Ram Metal Horizontal 400,000 Hydraulic Scrap Metal Shear Baler Machine Metal Compress Baler Machine

Overview Metal briquetting machine is a device that can pressurize waste metal to produce blocks. It is a multi-purpose equipment with high automation, high output, low price, simple operation, and pollution-free environment.

型号	630	1000	1300A	1300B	1300C	1600	1600A
Force (KN)	630	1000	1300	1300	1300	1539	1539
System Force (Mpa)	25	25	25	25	25	25	25
Chamber Size (mm)	1000x600x500	1000x700x550	1200x700x550	1200x700x550	1200x800x550	1200x800x550	1600x800x800
Bale Size(mm)	200x200 Φ150x200-450	250x250 220x220 200x200	300x300 250x250 220x220 200x200	300x300 250x250	300x300 250x250	300x300x300-500	300x400x300-500
Bale Weight (kg)	/	/	/	/	/	50-90	70-110
cycling Time（s）	60	70	80	90	90	90	100
Capacity（t）	4-6	6-8	8-12	8-12	8-12	12-16	14-18
Capacity（kg/h）	500-750	750-1000	750-1500	1000-1800	1500-2000	/	/
Motor（kw）	11	11	15	15	15	18.5	18.5
Machine Wright（t）	4.2	5	6	6	6	7	12
Overall Dimension (mm)	3000x1800x1600	3200x2000x1600	3600x2000x2000	3600x2200x2000	3600x2400x2000	3950x2620x2000	4350x2700x2100

Product Details

Structure

Structure of metal briquetting machine The overall structure of the metal briquetting machine consists of mechanical system, electrical system, hydraulic system, etc.

Outstanding advantages

Hydraulic metal briquetting machines have been widely promoted and used due to their high extrusion pressure, high efficiency, smooth operation, low noise, safety and reliability, and good block quality.

① Adopting a rotating cover structure, the material box has a large opening area, making it particularly convenient for feeding large, empty, and thin materials; It can be manually or mechanically fed.

② All moving components are hydraulically driven, ensuring smooth operation; The packaging pressure is high, the bundle is tight, and the packaging efficiency is high. ③ The directional valve is easy to operate, convenient, safe and reliable. ④ There is no significant vibration during machine operation and there are no special requirements for the foundation. Ordinary concrete flooring is sufficient.
