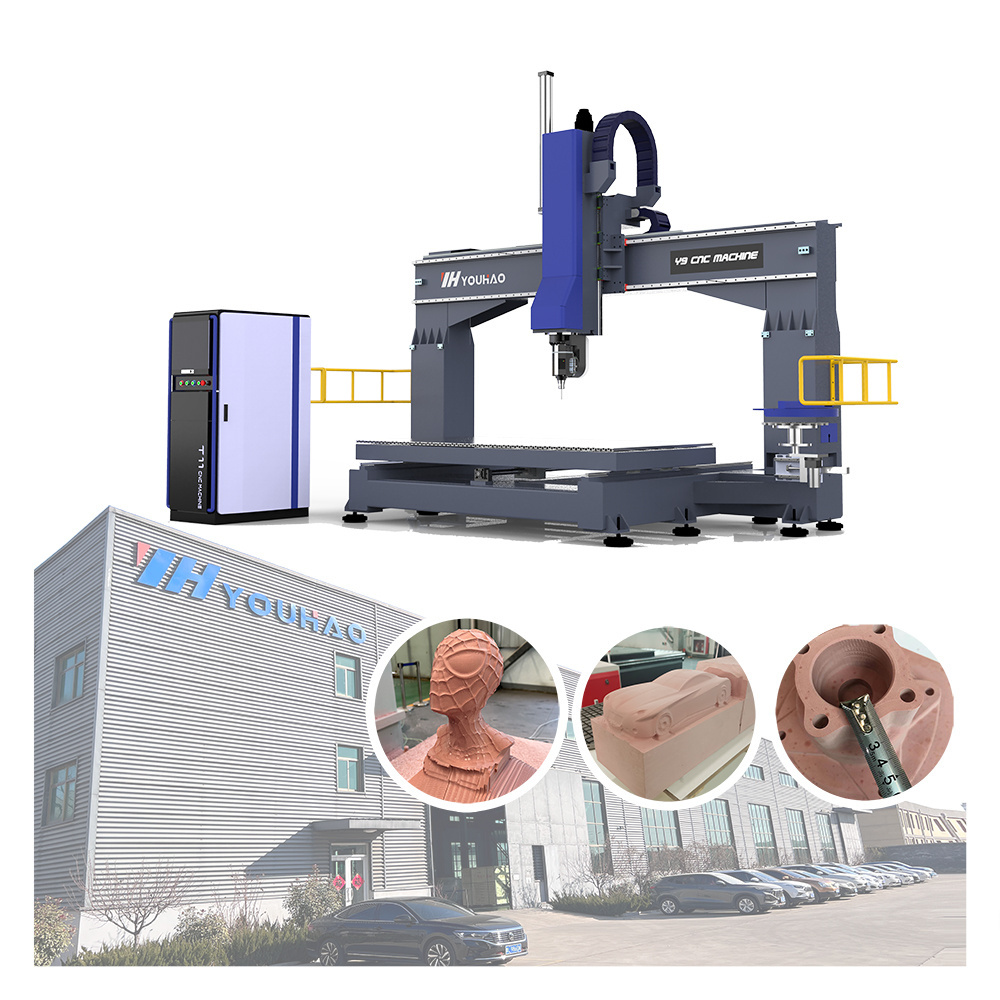

High Speed Sculpture Model CNC Wood Foam Milling 5 Axis 2030 3040 Big Size 5 Axis wood CNC Router Carving Machine for Jade

High Speed Sculpture Model CNC Wood Foam Milling 5 Axis 2030 3040 Big Size 5 Axis wood CNC Router Carving Machine for Jade

FOB Reference Price: Get Latest Price

≥1 Sets

US $12980

≥2 Sets

US $9400

≥3 Sets

US $8960

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.05 mm

Travel (X Axis)(mm):: 1200 mm

Travel (Y Axis)(mm):: 1200 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Spindle Motor Power(kW):: 3.5/4.5/6KW

Place of Origin:: Shandong, China

Brand Name:: Youhao

Voltage:: 380V/220V

Dimension(L*W*H):: 3600x2000x2000

Power (kW):: 3.5

Weight (KG):: 6587

Product name:: 5 Axis Cnc Router

Max. cutting aluminum profile size:: 6500*600*500mm

Max. cutting saw/blade diameter:: Diameter 350mm

Max. travelling speed:: XYZ: 75/75/15m/min

Repositioning accuracy:: +0.01mm

Working Voltage:: 380V 3Ph 50/60Hz

Application:: Wood Working

After Warranty Service:: Video technical support, Online support, Spare parts

Keywords:: Cnc Wood Router Engraver

Working table:: Vacuum Table + Tslot

Quick Details

Working Table Size(mm):: 1200×1200

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 18000 - 24000 rpm

Positioning Accuracy (mm):: 0.05 mm

Travel (X Axis)(mm):: 1200 mm

Travel (Y Axis)(mm):: 1200 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Spindle Motor Power(kW):: 3.5/4.5/6KW

Place of Origin:: Shandong, China

Brand Name:: Youhao

Voltage:: 380V/220V

Dimension(L*W*H):: 3600x2000x2000

Power (kW):: 3.5

Weight (KG):: 6587

Product name:: 5 Axis Cnc Router

Max. cutting aluminum profile size:: 6500*600*500mm

Max. cutting saw/blade diameter:: Diameter 350mm

Max. travelling speed:: XYZ: 75/75/15m/min

Repositioning accuracy:: +0.01mm

Working Voltage:: 380V 3Ph 50/60Hz

Application:: Wood Working

After Warranty Service:: Video technical support, Online support, Spare parts

Keywords:: Cnc Wood Router Engraver

Working table:: Vacuum Table + Tslot

High Speed Sculpture Model CNC Wood Foam Milling 5 Axis 2030 3040 Big Size 5 Axis wood CNC Router Carving Machine for Jade

This machine is widely used in all kinds of foam material, EPS, wood, soft metal, plastic, arcylic,stone,PVC,Composite board, etc
And slotting, chamfering, drilling, milling groove and other multi-angle processing can be finished by machine

Heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability Configured advanced DSP control
system on line special controlling system, indepent power supply, qualick calcaulation, strong anti-interferencess peroformance,
Own more powerful application performance

Model	5A-1212	5A-1325
A C ROTARY	A ±110 degree C ±320 degree
Spindle Power	10-12kw Italy spindle
Control system	TAIWAN SYNTEC
Inverter	Fuling
Motor	Yaskawa Servo
Guide rail	Taiwan HIWIN rails

Hiteco

BIROTARY UNITSThey are made in advantageous configuration with 5th rotary axis tilted or in the traditional configuration with
horizontal 5th
rotary axis, in both cases with or without brakes stiffening static 4th and 5th axis

SYNTEC

A professional PC based digital controller manufacturer, which has been deeply engaged in the software and hardware technology
research and development of machine tool controllers for a long time.

YASKAWA servo motor

Economical,
stable and reliable

Applications

Packaging Details: High Speed Sculpture Model CNC Wood Foam Milling 5 Axis 2030 3040 Big Size 5 Axis wood CNC Router Carving Machine for Jade

1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.

We can also make package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.
