Quick Details
-
Place of Origin:
-
Henan, China, Henan, China
-
Brand Name:
-
youxintong, youxintong
-
Voltage:
-
220V/380V/CUSTOMIZED, AC 110V/220V/380V
-
Dimension(L*W*H):
-
customize, 2*1.1*1.5m
-
Weight (KG):
-
800 kg
-
Henan, China:
-
dedusting
-
Conveying distance:
-
10m-100m
-
Operational throughput:
-
40t/h
-
Frame Material:
-
Carbon Steel Stainless Steel
-
Type:
-
High Speed
Quick Details
-
Power:
-
18.5kw, 55kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
customize
-
Place of Origin:
-
Henan, China, Henan, China
-
Brand Name:
-
youxintong, youxintong
-
Voltage:
-
220V/380V/CUSTOMIZED, AC 110V/220V/380V
-
Dimension(L*W*H):
-
customize, 2*1.1*1.5m
-
Weight (KG):
-
800 kg
-
Henan, China:
-
dedusting
-
Conveying distance:
-
10m-100m
-
Operational throughput:
-
40t/h
-
Frame Material:
-
Carbon Steel Stainless Steel
-
Type:
-
High Speed
Product Description

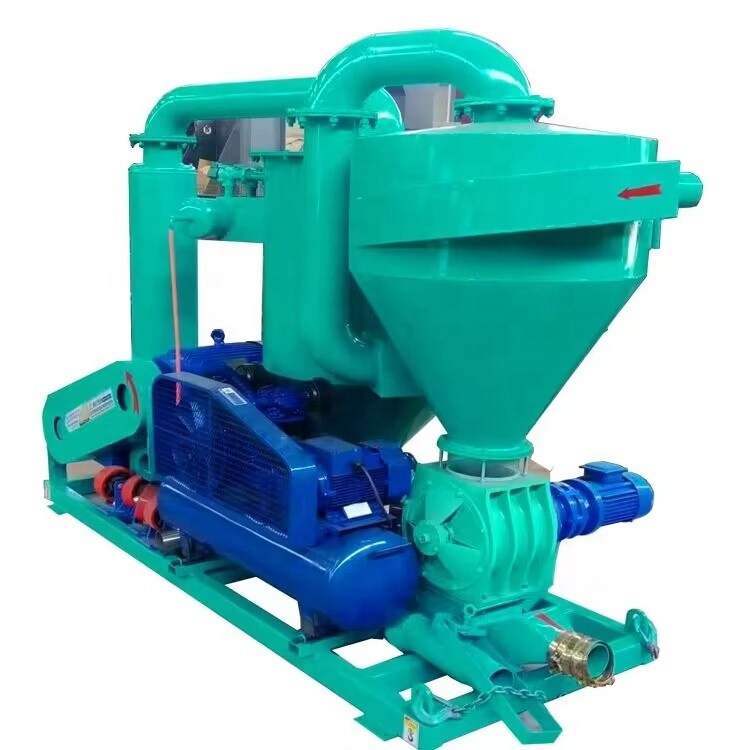

YXT series pneumatic conveyor, is an advanced material handling machinery, can be horizontal, inclined, vertical and other all-round transport. Such as rice, rice, wheat, corn, sorghum, peanuts, sand, wine grains, fly ash, cement, flour and other granular and powdery materials. Especially suitable for farms, stations, wharves, wineries, cargo ships and other large grain depot replenishment, out of the warehouse, warehouse, stacking and grain processing. Feed processing and beer brewing industries in the production process of bulk, bulk transport, bulk unloading and other mechanized operations. This machine has the function of removing impurities and dewatering grains when transporting grains.
Specification
|
Model
|
Max conveying capacity (T/H)
|
Max horizontal conveying distance (m)
|
max lifting height (m)
|
Power of fan and air lock(kw)
|
Feed pipe diameter (mm)
|
|
FPC-5
|
5
|
30
|
5
|
7.5+0.75
|
124
|
|
FPC-10
|
10
|
50
|
8
|
11+0.75
|
150
|
|
FPC-15
|
15
|
70
|
12
|
15+1.1
|
150
|
|
FPC-20
|
20
|
120
|
18
|
22+1.1
|
160
|
|
FPC-30
|
30
|
170
|
30
|
37+1.5
|
160
|
|
FPC-50
|
50
|
200
|
42
|
55+1.5
|
200
|
Packing & Delivery
The pneumatic conveyor is mainly composed of fan, brake dragon, air closure device, motor (or diesel engine directly driven) connection pipe and conveying pipe. The working principle is: The negative pressure air generated by the fan is sucked into the material through the suction nozzle soft pipe, and the air is separated from the material through the kshacron. After the material is separated, the gas enters the fan through the small kshacron and the connecting pipe and becomes positive pressure air into the positive pressure pipe. After the separated material rotates down into the air closure device, and the material is discharged into the positive pressure pipe of the fan through the air closure device. By the positive pressure air flow through the pipeline to the designated location.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
