Quick Details
-
Brand Name:
-
KOOEN
-
Application:
-
Pet Bottle Recycling
-
Voltage:
-
380V,3Phase,50HZ(customerized)
-
Dimension(L*W*H):
-
different due to different machine model
-
Power (kW):
-
150
-
Weight (T):
-
12
-
Capacity:
-
300/500/1000/2000/3000kg/h
-
Raw material:
-
waste pet bottles
-
Material:
-
SUS304 Stainless Steel
-
Keywords:
-
PET Bottle Washing Recycling Line
-
Name:
-
PET bottle recyclig machine crates
-
Type:
-
PET Bottle Plastic Recycling Line
-
Final product:
-
Clean Plastic Flakes
-
component:
-
plastic cutter
Quick Details
-
Machine Type:
-
PET Bottle Washing Line
-
Max.Production Capacity (kg/h):
-
3000
-
Place of Origin:
-
Jiangsu, China (Mainland)
-
Brand Name:
-
KOOEN
-
Application:
-
Pet Bottle Recycling
-
Voltage:
-
380V,3Phase,50HZ(customerized)
-
Dimension(L*W*H):
-
different due to different machine model
-
Power (kW):
-
150
-
Weight (T):
-
12
-
Capacity:
-
300/500/1000/2000/3000kg/h
-
Raw material:
-
waste pet bottles
-
Material:
-
SUS304 Stainless Steel
-
Keywords:
-
PET Bottle Washing Recycling Line
-
Name:
-
PET bottle recyclig machine crates
-
Type:
-
PET Bottle Plastic Recycling Line
-
Final product:
-
Clean Plastic Flakes
-
component:
-
plastic cutter
Product Description
KES/KESB series of single shaft shredder machine
|
Model
|
Motor power (KW)
|
QTY. of moving blades
|
QTY. of fixed blades
|
Capacity
(kg/hour)
|
|
KES-4060
|
30
|
34
|
4
|
300kg/h
|
|
KES-4080
|
37
|
46
|
4
|
500kg/h
|
|
KES-40100
|
45
|
58
|
4
|
1000kg/h
|
|
KES-40120
|
55
|
70
|
6
|
1500kg/h
|
|
KES-40150
|
75
|
88
|
6
|
2000kg/h
|
|
KESB-48120
|
90
|
102+33
|
3
|
1000-1200kg/h
|
|
KESB-48150
|
90
|
102+33
|
3
|
1500-2000kg/h
|
|
KESB-48200
|
55+55
|
177
|
4
|
3000kg/h
|
|
KESB-48250
|
55+55
|
102+33
|
4
|
4000kg/h
|
Application:
Suitable for shredding materials, such as plastic lumps, plastic bottle/containers, plastic pipes, plastic film (LDPE agriculture film, PP woven bags etc), wood, paper, aluminum cans, fiber, etc.
( Note, KESB is our Swing arm heavy model single shaft shredder machine with big shredding cavity, suitable shredding big size materials such wooden pallets, etc. )
Suitable for shredding materials, such as plastic lumps, plastic bottle/containers, plastic pipes, plastic film (LDPE agriculture film, PP woven bags etc), wood, paper, aluminum cans, fiber, etc.
( Note, KESB is our Swing arm heavy model single shaft shredder machine with big shredding cavity, suitable shredding big size materials such wooden pallets, etc. )
More photos:

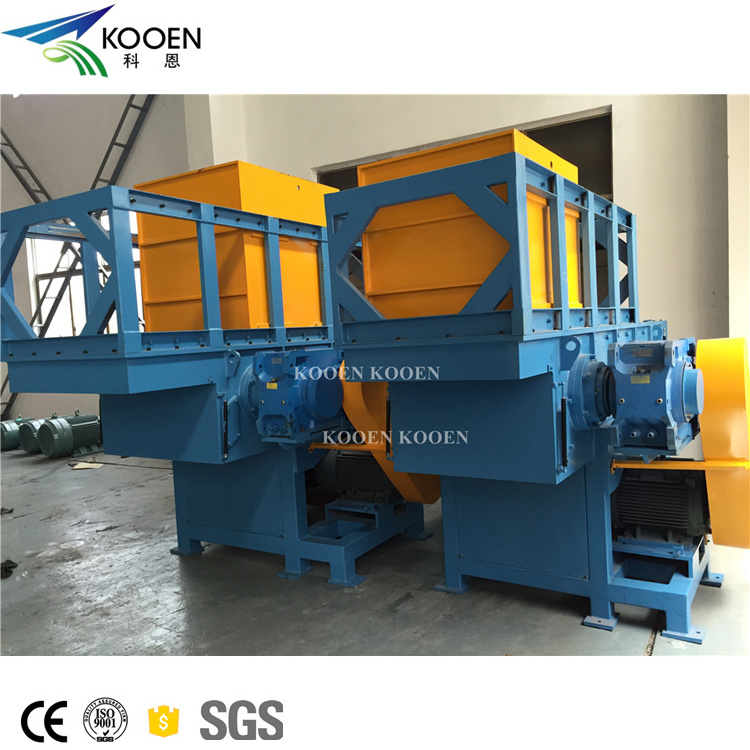

KES single shaft shredder machine (Hopper - Fixed model).
KES single shaft shredder machine (Hopper - moving model).
It not only can shredding conventional materials, but also be more suitable for shredding plastic pipes
KESB series swing-arm heavy duty shredder machine with big shredding arms.
Suitable shredding big size materials such wooden pallets, baled plastic films/bags, etc
Fix blade+ moving blade
Blade materials is SKD-11, from Japan
Main shaft
Main shaft through linear cutting method, ensure accuracy, it also through nitriding treatment, ensure hardness;
Screen structure
Different mesh structure and different mesh diameter are used for shredding different materials
Main motor
we use world famous brand motor
Gearbox
we use the best gearbox from China
Electric parts
we use world famous brand electric components
======================================================================================================================================================================================
KESD/KED Series of double shaft shredder machine
|
Model
|
Motor power (KW)
|
Thickness of blade (mm)
|
Rotation speed
(r/min)
|
Capacity
（kg/hour)
|
|
KESD-2140
|
7.5
|
20
|
17
|
100-200kg/h
|
|
KESD-2180
|
7.5+7.5
|
20
|
15
|
300kg/h
|
|
KESD-3280
|
15+15
|
20
|
15
|
500kg/h
|
|
KESD-32100
|
22+22
|
40
|
15
|
1000kg/h
|
|
KESD-32120
|
30+30
|
40
|
15
|
1500-2000kg/h
|
|
KESD-40130
|
37+37
|
40
|
14
|
3000kg/h
|
|
KESD-40160
|
45+45
|
50
|
11
|
4000-5000kg/h
|
|
KED-800
|
30KW*2
|
78
|
6
|
500-800kg/h
|
|
KED-1000
|
37KW*2
|
96
|
6
|
1000kg/h
|
|
KED-1200
|
45KW*2
|
114
|
9
|
1500kg/h
|
|
KED-1500
|
55KW*2
|
142
|
9
|
2000kg/h
|
Application
:
Applicable to Plastic containers/crate, Timber, Aluminum profile, Iron/metal, Home Appliance, Tire, Plastic film (LDPE agriculture film/ PP woven bags), etc
(Note: KED series two rotors shaft shredder is special designed by our company to shredding soft plastics, such LDPE agriculture films, LLDPE strength films, PP woven bags, jumbo bags, big bags, etc)
Applicable to Plastic containers/crate, Timber, Aluminum profile, Iron/metal, Home Appliance, Tire, Plastic film (LDPE agriculture film/ PP woven bags), etc
(Note: KED series two rotors shaft shredder is special designed by our company to shredding soft plastics, such LDPE agriculture films, LLDPE strength films, PP woven bags, jumbo bags, big bags, etc)
More photos:
KESD series double shaft shredder machine
KESD double shaft shredder machine main shaft with moving blade
Main shaft through nitriding treatment, ensure hardness;
Blade materials is SKD-11, from Japan
Blade materials is SKD-11, from Japan
KED series two rotor shredder machine
Special designed by our company to shredding soft plastics, such LDPE agriculture films, LLDPE strength films, PP woven bags,
jumbo bags, big bags, etc
jumbo bags, big bags, etc
KED two rotors shredder machine main shaft with moving blade
Main shaft through linear cutting method, ensure accuracy, it also through nitriding treatment, ensure hardness;
Blade materials is SKD-11, from Japan
Blade materials is SKD-11, from Japan
Main motor
we use world famous brand motor
Electric parts
we use world famous brand electric components
KOOEN single shaft /double shaft shredder/shredding machine working videos
http://www.kooenmachine.com/shredder-machine-crusher-machine/
(Website link)
http://www.kooenmachine.com/shredder-machine-crusher-video/ (Video link)
http://www.kooenmachine.com/shredder-machine-crusher-video/ (Video link)
FAQ
For choosing proper machine and saving your time, please read bellow guides carefully:
1. what materials need to shredding? plastic? wood? tire? or others?
2. what capacity (kg/hour) of this shredder machine?
3. please let me know required final products size(mm)?
1. what materials need to shredding? plastic? wood? tire? or others?
2. what capacity (kg/hour) of this shredder machine?
3. please let me know required final products size(mm)?
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines
and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are
the professional and trustable supplier for turnkey projects. Let us do win-win business together.
If you want to see more information/videos of our single/double shaft shredding machine, please log on our web:
www.kooenmachine.com
