Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lotush
-
Model Number:
-
elbow connector
-
Material:
-
PP/PVC/UPVC/HDPE
-
Size:
-
20-110mm
-
MOQ:
-
100 Pieces
-
Service:
-
OEM\ODM
-
Pressure:
-
High Pressure
-
Packing:
-
Carton
-
Feature:
-
High Durability
-
Application:
-
Irrigation
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Warranty:
-
1year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lotush
-
Model Number:
-
elbow connector
-
Material:
-
PP/PVC/UPVC/HDPE
-
Size:
-
20-110mm
-
MOQ:
-
100 Pieces
-
Service:
-
OEM\ODM
-
Pressure:
-
High Pressure
-
Packing:
-
Carton
-
Feature:
-
High Durability
-
Application:
-
Irrigation

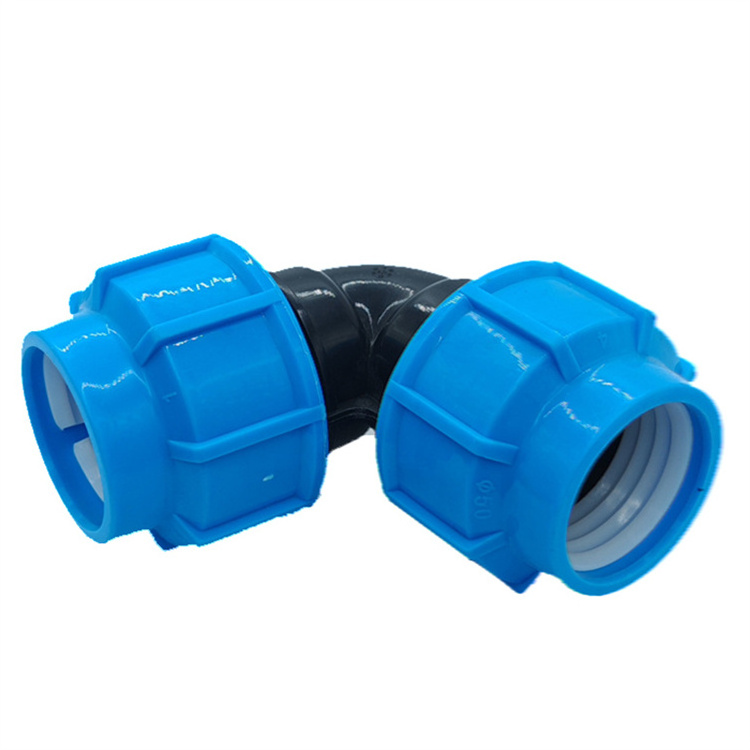

Connector Elbow Pvc Plastic Waste Pipe Fittings Pvc Tee
Products Description
Our PP Compression Fittings is made from the material Polypropylene and subject to the system pressure, has a working temperature of -10°C to +45°C, being manufactured to the highest quality and are fully matched for compatibility and manufactured in accordance with the most stringent international standards.
Product Paramenters
|
Part
|
Material
|
|
Body
|
Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature.
|
|
|
|
|
Blocking bush
|
Polypropylene
|
|
Nut
|
Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004)
|
|
|
|
|
Clinching ring
|
Polyacetal resin(POM)with high mechanical resistance
And hardness |
|
|
|
|
O Ring gasket
|
Special elastomeric acrylonitrile rubber (EPDM) for alimentary use
|
|
Reinforcing ring
|
AISI 430 (UNI X8Cr17,W,nr 14828) Stainless steel for female threads from 1"to 4"
|
Our PP Compression Fittings range have a heterophasic black polypropylene body suitable at high temperatures, with a polyacetal resin clinching ring and a blue dyed PP nut offering suitability to UV rays and system heat. These fittings also use an acrylonitrile rubber or lip seal gasket, based on the different fitting diameters.
Application
• Watering: Residential, municipal, sport fields, golf courses.
• Irrigation: Agriculture, horticulture, vineyards.
• Industry: Compressed air.
