Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
SINOMADA
-
Weight:
-
11600 kg
-
Dimension(L*W*H):
-
8036*3660*3170mm
Quick Details
-
Forward Speed(km/h):
-
44
-
Engine Brand:
-
TOP BRAND
-
Reverse Speed(km/h):
-
29.6
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
SINOMADA
-
Weight:
-
11600 kg
-
Dimension(L*W*H):
-
8036*3660*3170mm
Sinomada
Product Overview

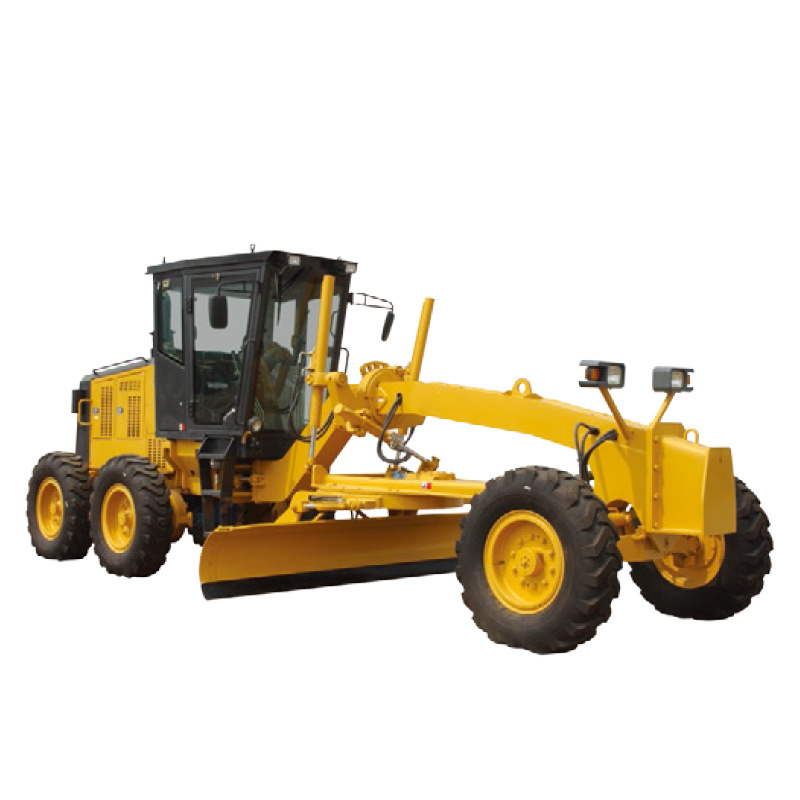

SHANTUI SG14 Brand New 140HP Road Machine Motor Grader
Engine model: Dongfeng Cummins (DCEC) 6BTAA5.9-C150
Rated power: 112kW/2200rpm
Operating weight: 11.6t
Technical Features
The engine is reliable in performance and high in power and this provides the product with stable and reliable power output under
various working conditions; the throttle adopts coordinated control and it possesses easy, convenient and reliable operation. The
6-speed gearbox with rational distribution of gear ratio provides the machine with 3 working speeds so that working reliability
and flexibility are guaranteed.
The rear axle is 3-section drive axle with NO-SPIN self-locking differential.
Electric instruments and hydraulic components from internal famous manufacturers ensure the reliability of the vehicle.
The brake system adopts advanced hydraulic brake control technology in the world and safe and reliable brake application is
guaranteed.
The articulated frame and the full-hydraulic front wheel steering provide the vehicle with small turning radius and flexible
steering.
The luxury, full-field and fully sealed cab can be equipped with warm-and-cool air-conditioner.
The novel and chic appearance, streamline glass fiber reinforced plastic engine hood provide easy engine maintenance and good heat dissipation.
Special tires for grader driving are applied and general purpose tires can be supplied to customers when needed.
Rated power: 112kW/2200rpm
Operating weight: 11.6t
Technical Features
The engine is reliable in performance and high in power and this provides the product with stable and reliable power output under
various working conditions; the throttle adopts coordinated control and it possesses easy, convenient and reliable operation. The
6-speed gearbox with rational distribution of gear ratio provides the machine with 3 working speeds so that working reliability
and flexibility are guaranteed.
The rear axle is 3-section drive axle with NO-SPIN self-locking differential.
Electric instruments and hydraulic components from internal famous manufacturers ensure the reliability of the vehicle.
The brake system adopts advanced hydraulic brake control technology in the world and safe and reliable brake application is
guaranteed.
The articulated frame and the full-hydraulic front wheel steering provide the vehicle with small turning radius and flexible
steering.
The luxury, full-field and fully sealed cab can be equipped with warm-and-cool air-conditioner.
The novel and chic appearance, streamline glass fiber reinforced plastic engine hood provide easy engine maintenance and good heat dissipation.
Special tires for grader driving are applied and general purpose tires can be supplied to customers when needed.
Product parameters
|
Engine
|
Engine model
|
Dongfeng Cummins (DCEC) 6BTAA5.9-C150
|
|
|
|
|
|
||||||
|
|
Rated power/speed
|
112kW/2200rpm
|
|
|
|
|
|
||||||
|
|
Transmission and torque converter: Electronic controlled transmission with 6 forward gears and 3 reverse gears.
|
|
|
|
|
|
|
||||||
|
Travel speed
|
Gear
|
1st
|
2nd
|
3rd
|
4th
|
5th
|
6th
|
||||||
|
|
Forward
|
0~5.4 km/h
|
0~8.3 km/h
|
0~13.2 km/h
|
0~20.6 km/h
|
0~29.6 km/h
|
0~44 km/h
|
||||||
|
|
Reverse
|
0~5.4 km/h
|
0~13.2 km/h
|
0~29.6 km/h
|
|
|
|
||||||
|
Travel
|
Tire Type
|
13.00-24TG PR12
|
|
|
|
|
|
||||||
|
Steering system
|
Max. steering angle of front wheel
|
±45°
|
|
|
|
|
|
||||||
|
|
Max. tilting angle of front wheel
|
±17°
|
|
|
|
|
|
||||||
|
|
Max. oscillating angle of front axle
|
±15°
|
|
|
|
|
|
||||||
|
|
Steering angle of frame
|
±25°
|
|
|
|
|
|
||||||
|
|
Max. oscillating angle of rear axle
|
±15°
|
|
|
|
|
|
||||||
|
|
Min. turning radius
|
6600 mm
|
|
|
|
|
|
||||||
|
Operation weight
|
Operating weight (standard configuration)
|
11600kg
|
|
|
|
|
|
||||||
|
|
Front axle load
|
3480kg
|
|
|
|
|
|
||||||
|
|
Rear axle load
|
8120kg
|
|
|
|
|
|
||||||
|
Blade
|
Max. lifting height
|
460mm
|
|
|
|
|
|
||||||
|
|
Max. cutting depth
|
500mm
|
|
|
|
|
|
||||||
|
|
Max. position angle
|
90°
|
|
|
|
|
|
||||||
|
|
Cutting angle adjustment range
|
30°- 70°
|
|
|
|
|
|
||||||
|
|
Rotational angle
|
360°
|
|
|
|
|
|
||||||
|
|
Length×height
|
3660×615mm
|
|
|
|
|
|
||||||
