Quick Details
-
Power:
-
1.1-7.5kw
-
Min. Lifting Height:
-
2.5m
-
Table Size:
-
As your demand
-
Overall Dimensions:
-
As your demand
-
Weight:
-
560 kg
-
Power Source:
-
AC DC or Diesel
-
Tyre:
-
Pneumatic rubber tire, Solid rubber tire, or Polyurethane
-
Paint:
-
Epoxy paint
-
Emergency Decline Valve:
-
Include
-
Explosion Proof Valve:
-
Include
-
Spillover Valve:
-
Include
-
Table Material:
-
Pattern steel board
-
Scissor Lift Tube:
-
High strength rectangular tube
-
Organ Cover:
-
Include
-
Color:
-
As your demand
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YT
-
Power:
-
1.1-7.5kw
-
Min. Lifting Height:
-
2.5m
-
Table Size:
-
As your demand
-
Overall Dimensions:
-
As your demand
-
Weight:
-
560 kg
-
Power Source:
-
AC DC or Diesel
-
Tyre:
-
Pneumatic rubber tire, Solid rubber tire, or Polyurethane
-
Paint:
-
Epoxy paint
-
Emergency Decline Valve:
-
Include
-
Explosion Proof Valve:
-
Include
-
Spillover Valve:
-
Include
-
Table Material:
-
Pattern steel board
-
Scissor Lift Tube:
-
High strength rectangular tube
-
Organ Cover:
-
Include
-
Color:
-
As your demand
Scissor lift, scissor car lift, scissor lift China
Application place

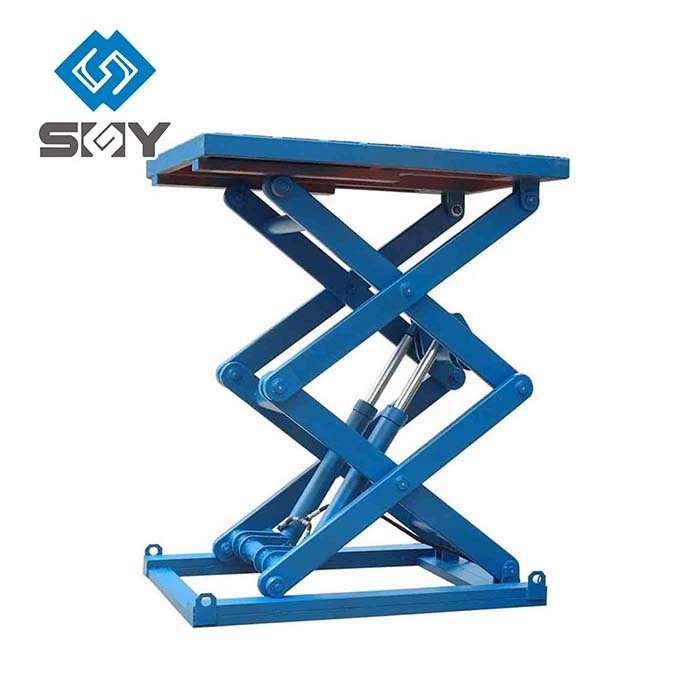

Mini Hydraulic Scissor Lift Table 2000kg is a special design for special people and building. Mini Hydraulic Scissor Lift Table 2000kg can also used to lift or vertical transmission cargo to the specified height. Mini Hydraulic Scissor Lift Table 2000kg is usually installed in a pit that we can design and teach you to make. If not convernient, you can also use the Guide Rail instead of the pit.
Main Body Structure of scissor lift, scissor car lift, scissor lift China
1. Fence: Usually 900mm with electricity protective device and a door can easily open and close manually.
2.Handle: You can press it if the power is off to avoid the worker hurt.
3.
Manual Switch:
Two manual switchs which can be controlled both on the table and ground.
4.Distribution box: Include the "up","down" and "pause" button.
5.Scissor lift structure: High strengthen rectangular tube to ensure lifting steady and safely.
6.Table Material :
The pattern steel board against slipping.
7.Organ Cover: To be installed to against the dust and damp.
Technology Datas of scissor lift, scissor car lift, scissor lift China
|
Model |
Table size |
Capacity |
Net lifting height |
Min height |
Total dimension |
|
SGY1-1.5 |
1200×1200mm |
1T |
1.5m |
560mm |
1200×1200×560mm |
|
SGY0.3-2.9 |
1400×750mm |
0.3T |
2.9m |
710mm |
1400×750×710mm |
|
SGY 2-4 |
1600×1600mm |
2T |
4 m |
670mm |
1600×1600×670mm |
|
SGY 0.3-5 |
1800×1200mm |
0.3T |
5m |
760mm |
1800×1200×760mm |
|
SGY 1-1.5 |
2000×1500mm |
1T |
1.5m |
520mm |
2000×1500×520mm |
|
SGY 1-4.2 |
2000×2000mm |
1T |
4.2m |
850mm |
2000×2000×850mm |
|
SGY 3-3.5 |
2000×2000mm |
3T |
3.5m |
800mm |
2000×2000×800mm |
|
SGY 2-5 |
2200×1500mm |
2T |
5m |
1050mm |
2200×1500×1050mm |
|
SGY 1.5-8.5 |
2400×1600mm |
1.5T |
8.5m |
1450mm |
2400×1600×1450mm |
|
SGY 2-3.5 |
2400×2000mm |
2T |
3.5m |
780mm |
2400×2000×780mm |
|
SGY 3-7 |
2500×1400mm |
3T |
7m |
1250mm |
2500×1400×1250mm |
|
SGY 5-5 |
2800×2000mm |
5T |
5m |
1020mm |
2800×2000×1020mm |
|
SGY 2-4.5 |
2800×2600mm |
2T |
4.5m |
810mm |
2800×2600×810mm |
|
SGY 2-2 |
3000×1300mm |
2T |
2m |
600mm |
3000×1300×600mm |
|
SGY 1-5.8 |
3000×2400mm |
1T |
5.8m |
770mm |
3000×2400×770mm |
|
SGY 3-7 |
3000×2500mm |
3T |
7m |
1080mm |
3000×2500×1080mm |
|
SGY 4-1.65 |
3200×1850mm |
4T |
1.65m |
600mm |
3200×1850×600mm |
|
SGY 28-1.9 |
4000×3500mm |
28T |
1.9m |
800mm |
4000×3500×800mm |
|
SGY 2.5-6 |
4500×2200mm |
2.5T |
6m |
1000mm |
4500×2200×1000mm |
|
SGY 4-3.15 |
5000×2400mm |
4T |
3.15m |
700mm |
5000×2400×700mm |
|
SGY 3-2.8 |
6000×3500mm |
3T |
2.8m |
750mm |
6000×3500×750mm |
|
SGY 4-1 |
6000×2000mm |
4T |
1m |
420mm |
6000×2000×420mm |
|
SGY 3.5-6 |
6000×2800mm |
3.5T |
6m |
850mm |
6000×2800×850mm |
|
SGY 6.5-4.2 |
8000×3000mm |
6.5T |
4.2m |
850mm |
8000×3000×850mm |
Safety Precautions of scissor lift, scissor car lift, scissor lift China
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
-
Anti-dropping device: Prevent falling of platform
Warranty of scissor lift, scissor car lift, scissor lift China
- 12 months from delivery apart from artificial damage.
-
Free lifelong technical service.
