Quick Details
-
Max. Turned Length (mm):
-
1500 mm
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
220v
-
Weight (KG):
-
1400
-
Model:
-
CA-1516
-
Max processing length:
-
1500mm
-
Max turning diameter:
-
160mm-300mm
-
Air pressure:
-
0.6-0.8Mpa
-
Max feed rate:
-
2000mm/min
-
min setting unit:
-
0.01cm
-
Transmission type:
-
Ball screw for Y axis
-
Motor power:
-
4kw
-
Cutter material:
-
hard alloy blade
-
Control System:
-
LCD screen display control system
Quick Details
-
Max. Swing Diameter (mm):
-
300 mm
-
Max. Length of Workpiece (mm):
-
1500 mm
-
Place of Origin:
-
Shandong, China
-
Max. Turned Length (mm):
-
1500 mm
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
220v
-
Weight (KG):
-
1400
-
Model:
-
CA-1516
-
Max processing length:
-
1500mm
-
Max turning diameter:
-
160mm-300mm
-
Air pressure:
-
0.6-0.8Mpa
-
Max feed rate:
-
2000mm/min
-
min setting unit:
-
0.01cm
-
Transmission type:
-
Ball screw for Y axis
-
Motor power:
-
4kw
-
Cutter material:
-
hard alloy blade
-
Control System:
-
LCD screen display control system

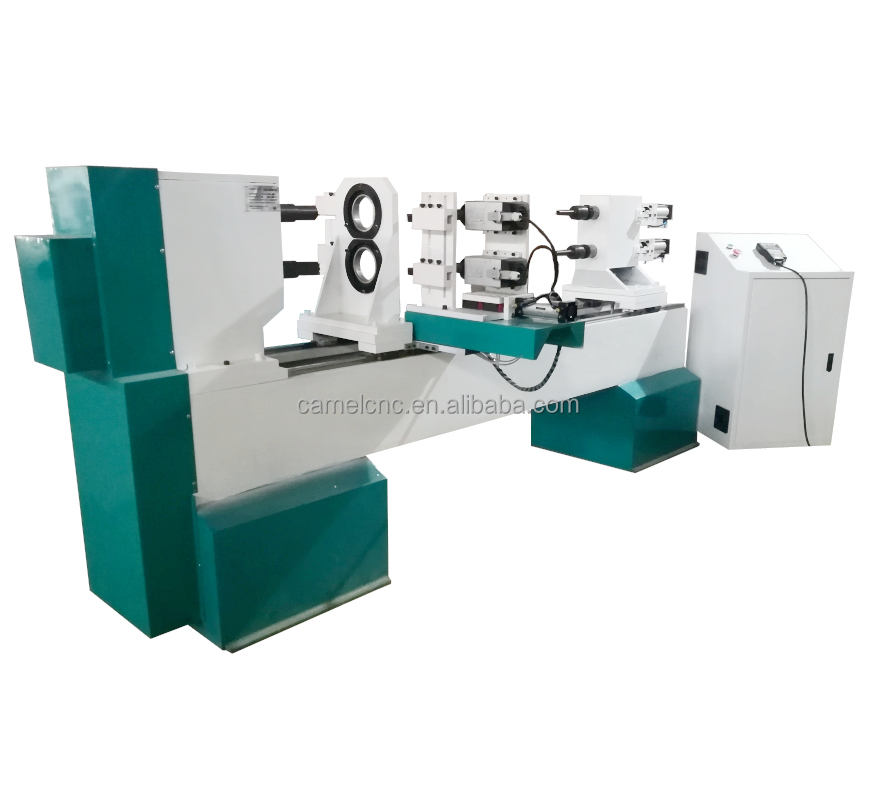

Large wood turning lathe machine CA-1516 cnc wood lathe for baseball bat
1.Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine
weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
2.Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
3.Adopting advanced LCD control system with wireless wheel which is easy for operating
4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6.Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
7.One time tool setting to finish the whole work piece.
8.Turning,broaching and engraving can be done with one machine by high speed
weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
2.Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
3.Adopting advanced LCD control system with wireless wheel which is easy for operating
4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6.Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
7.One time tool setting to finish the whole work piece.
8.Turning,broaching and engraving can be done with one machine by high speed
Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts,baseball bats
|
1
|
Model
|
CA-1516
|
|
2
|
Max processing length
|
1500mm(can custom 2000/2500/3000mm)
|
|
3
|
Max turning diameter
|
160mm-300mm
|
|
4
|
Air pressure
|
0.6-0.8Mpa
|
|
5
|
Power supply
|
AC 220V 1phase 50HZ/60H
|
|
6
|
Max feed rate
|
2000mm/min
|
|
7
|
min setting unit
|
0.01cm
|
|
8
|
Transmission type
|
Ball screw for Y axis
|
|
9
|
Guider
|
Taiwan Hiwin orbit
|
|
10
|
Main shaft rotating speed
|
0-3000r/min
|
|
11
|
Motor power
|
4kw
|
|
12
|
Cutter material
|
hard alloy blade
|
|
13
|
Control System
|
LCD screen display control system
|
|
14
|
Hand controller recognise file
|
*.dxf
|
|
15
|
Drawing Software
|
AutoCAD
|
|
16
|
Command Language
|
G code
|
Double axis four blade The two-axis four-knife design greatly increases the production efficiency while ensuring the smoothness of the workpiece.
standard working size 1500mm length, 300 mm diameter when one rotary work. when double rotary work together, its working diameter is 160mm, other length 2000/2500/3000mm can be customized, diameter max can make 400mm.
LCD screen with hand wheel
The CNC integrated cabinet includes integrated circuit systems such as CNC panels, frequency converters, and drivers, and is the core control unit of the equipment.
Advanced LCD screen display controller with handwheel controller adopt international standard CNC language G code,the work is stable, and the installation and debugging is simple.
The CNC integrated cabinet includes integrated circuit systems such as CNC panels, frequency converters, and drivers, and is the core control unit of the equipment.
Advanced LCD screen display controller with handwheel controller adopt international standard CNC language G code,the work is stable, and the installation and debugging is simple.
Pneumatic pressing cylinder,just press the switch to press the wood to tighten the wood. no need for cumbersome operations.
The super-long feeding handle saves time and effort, and can be easily slid with a slight break. With the aid of pneumatic tools, the workpiece clamping can be easily completed.
The super-long feeding handle saves time and effort, and can be easily slid with a slight break. With the aid of pneumatic tools, the workpiece clamping can be easily completed.
Two sets air cooled spindle with servo motor and drive for 3d carving/slotting/twisting
Using well-known domestic brands of air cooling spindle,low noise, strong cutting ability, to ensure the long time working
Using well-known domestic brands of air cooling spindle,low noise, strong cutting ability, to ensure the long time working
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function.
We can recommend the most suitable machine according to our experience.
Q2: This is the first time i buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.
Q7: How is the payment?
Normally we accept T/ or LC, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
