Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Keyi
-
Single Pulse Energy:
-
: 120J
-
Pulse Width:
-
0.1-20ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0.3mm
-
Dimensions:
-
1450*800*1100mm
-
Weight (KG):
-
220 KG
-
Marketing Type:
-
New Product 2021
-
Product name:
-

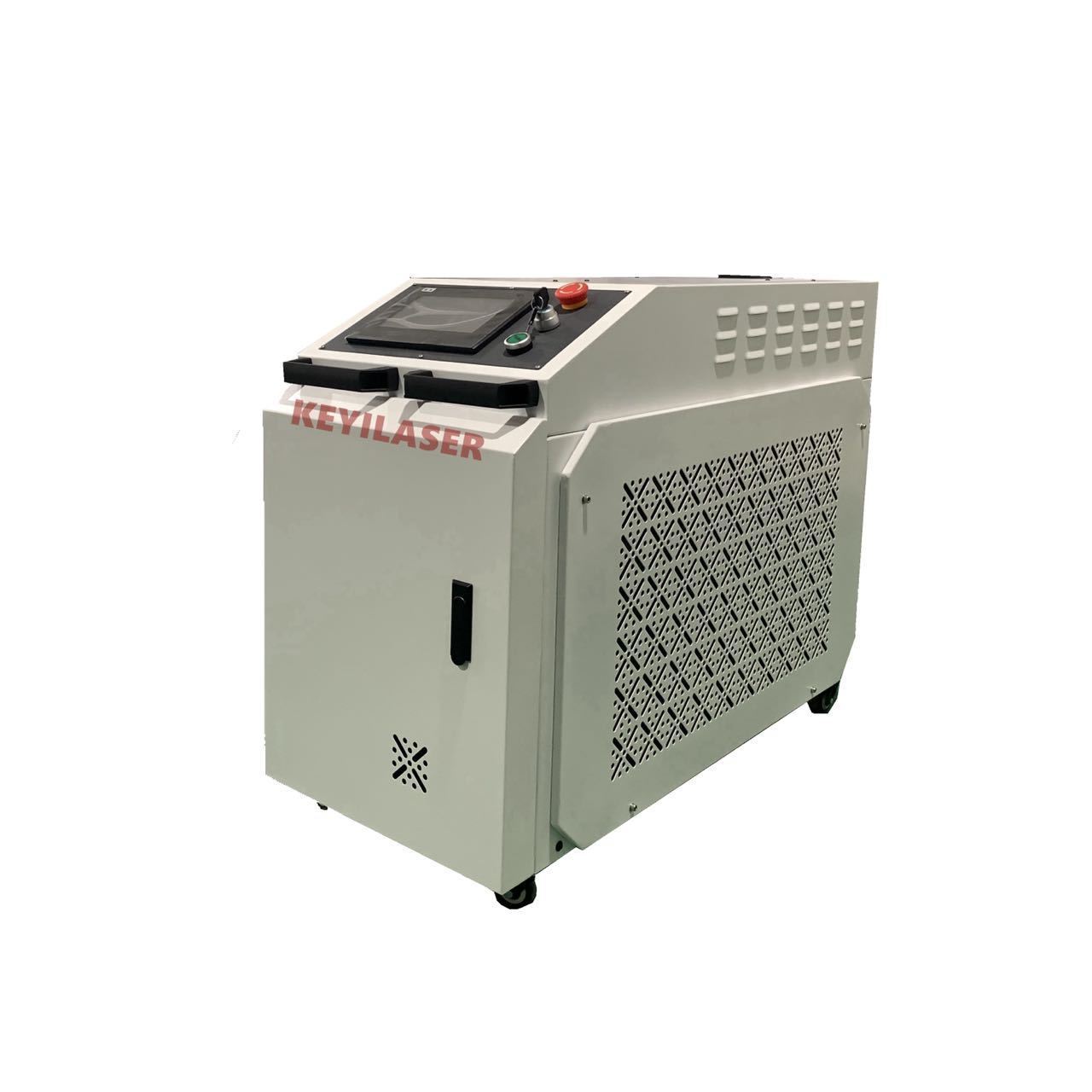

1500w fiber laser welding machine handheld wobble head
-
Power:
-
1500w
-
Working mode::
-
Continuous
-
Standard output laser power:
-
2%
-
Weldong speed::
-
0-120mm/s
-
Application::
-
carbon steel, stainless steel, galvanized sheet
-
Certification:
-
ce
-
Application:
-
Metal Stainless Steel Laser Welder
-
Laser type:
-
Fiber Laser Source
Quick Details
-
Max. Output Power:
-
1500W
-
Use:
-
welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Keyi
-
Single Pulse Energy:
-
: 120J
-
Pulse Width:
-
0.1-20ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0.3mm
-
Dimensions:
-
1450*800*1100mm
-
Weight (KG):
-
220 KG
-
Marketing Type:
-
New Product 2021
-
Product name:
-
1500w fiber laser welding machine handheld wobble head
-
Power:
-
1500w
-
Working mode::
-
Continuous
-
Standard output laser power:
-
2%
-
Weldong speed::
-
0-120mm/s
-
Application::
-
carbon steel, stainless steel, galvanized sheet
-
Certification:
-
ce
-
Application:
-
Metal Stainless Steel Laser Welder
-
Laser type:
-
Fiber Laser Source
Product Overview
Product Paramenters
|
Laser power
|
500W/1000W/1500W/2000W
|
|
Wavelength
|
1080±10nm
|
|
Working mode
|
CW / pulsed
|
|
Beam quality
|
M2＜1.1；M2,＜1.15；M2,＜1.2
|
|
Laser stable
|
±2%
|
|
power supply
|
AC220V±10% 50/60Hz ; AC380V±10%3P+PE
|
|
Power consumption
|
≤4KW；≤5KW；≤6KW
|
|
WeldingHead
|
KEYI Customized HD-X1 ; KEYI Customized HD-X2
|
|
Cooling system
|
Customized Industrial Double Temperature and Double Couble Chiller
|
|
Fible length
|
5-10m，can be customized
|
|
Working condition
|
15~35℃
|
|
Humidity environment
|
＜70%，no condensation
|
|
Welding thickness range
|
Max.1mm；Max.3mm；Max.5mm；
|
|
Application materials
|
Carbon steel,stainless steel,galvanized sheet etc.
|
|
Welding speed
|
0-150mm/s
|
