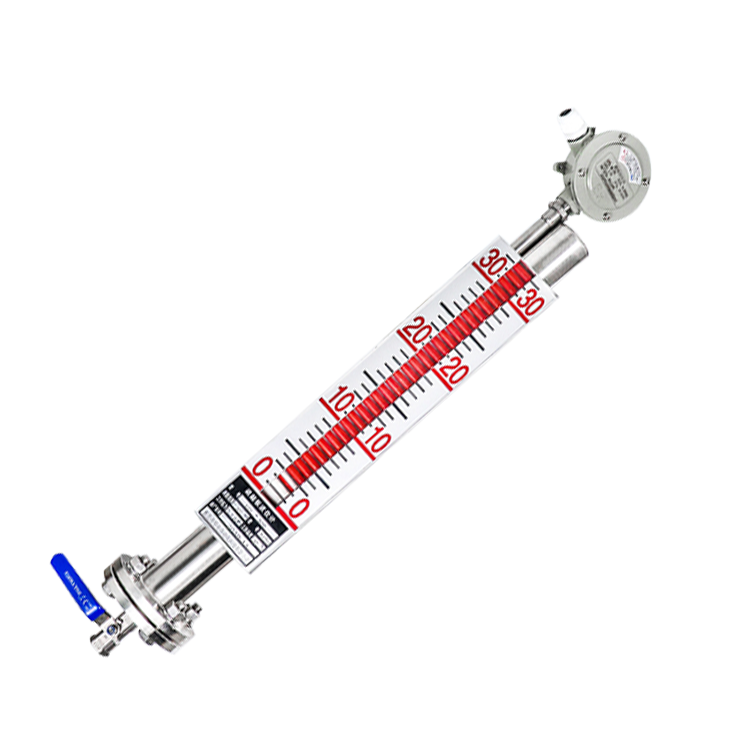

Description

UHZ-10 introducing and absorbing domestic and foreign products, and to digest, absorb, improve the original magnetic level gauge standards promulgated by the Ministry of Chemical Industry HG/T21584 -95 developed products. Can be used in a variety of media level measurement towers, tanks, tank, spherical vessels and boilers and other equipment. The magnetic level gauge series can achieve high sealed, leak-proof and adaptation level measurement under high pressure, high temperature, corrosive conditions.The entire process of measuring non-blind, eye-catching display, intuitive readings. In particular site instruction part, because no direct contact with the liquid medium, so the high temperature, high pressure, high viscosity, toxic, harmful, corrosive media, can show its superiority. Therefore, it is more thanthe traditional glass, plate level gauge with higher reliability, security, advanced,practical.

The gauge of the most notable feature is the liquid medium and the indicator completely isolated, so in any case are very safe, durable, and various types of level gauge coupled with level alarm, control switches, or community level can be achieved the bit, the lower offside alarm control or interlock; coupled with reed chipset level transmitter can be level, sector-bit signal into a standard

two-wire 4-20mADC signal transmitted to a computer, regulator, liquid digit display device, to achieve long-range indication, detection, recording and control, the series level gauge widely used: the level of the production process in petroleum, chemical, metallurgy, pharmaceutical, food, electricity and other measurement and control.

Detailed Images

Specification

Features

It total, compared with ordinary glass tube and glass plate surface, with the following characteristics:

(1) Level gauge the main components (body) in direct contact with the medium are made of stainless steel material or other special materials, indicating that components are not in contact with the media, and therefore containing flammable, explosive, toxic, corrosive media container use the gauge is safe and reliable.
(2)Two-color (white vapor, liquid red) turned columns, flap display, indicating continuous visual eye-catching, no blind spots, in any case will not be a false level.
(3)Less sealing surface, reducing static seal leakage points above 95%, and thus, to overcome the petroleum, chemical industry pressure vessel parts run,run, drip, leak and other weak links than the original plate level gauge.
(4)Simple structure, easy installation and maintenance, large-scale, design pressure, long life, wide range of applications.
(5)Magnetic float level gauge, with a level gauge can replace more than one glass plate liquid level gauge, and the installation extremely easy to use. Meanwhile, the use of plant development level remote transmitter, alarm and automatic control device, can be realized on the lower level alarm and control automation.

Applications

Selection Guide
