Professional design ISO CE No binder machine to make straw briquettes/wood sawdust briquette forming machine

Packing detailed information of the machine to make straw briquettes:

1) wooden case for packing one set machine to make straw briquettes;

2) for more sets machine to make straw briquettes or the product line, we use the standard container.

Main data of the machine to make straw briquettes :

If you want to choose the suitable machine, you should pay attention of these factor:

A/ Introduction:

The briquettes are a kinds of biofuel substitube to coal and charcoal. They are used to heat industrial boilers in order to produce electricity from steam. The most common use of the briquettes are in the developing world, where energy sources are not widely available. There has been a move to the use of briquettes in the developed world through the use of cofiring, when the briquettes are combined with coal in order to creat the heat supplied to the boiler. This reduces carbon dioxide emissions by partially replacing coal used in power plants with materials that are already contained in the carbon cycle.

B/ Raw material(because different material will need different machines):

Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks ,nutshell, coconut shell. the moisture and diameter of the raw material ( before the raw material into the briquette machine, we should confirm that:

1. diameter (size): 3-5mm ( if can not meet the requirement, it will need a crusher ;

2. moisture: 8-12% , (if can not meet the requirement, it will need a dryer).

C/ Working Principle:
The main part of briquette machine is: screw, mold, heating ring. After heating at first, when the sawdust of other materials at diameter of 2-5mm be send into the briquette machine, the materials will be heating in the mold, then it be mold into briquette: sawdust stick with a hole in the middle.

D/ Final product:

the finished product you need (you need the sawdust briquette or the charcoal)

1)/ the sawdust briquette very popular in Europe market, and it can be used as one kind of fuel

a. The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge;

b. The available diameter could be: 50mm, 60mm, 70mm, 80mm and so on;

c. The available length could be :20cm, 30cm, 40cm, 50cm;

d. The feature of the final product : Specific gravity: 1300—1900kg/m  Calorific value: 4500—5000kcal/kg

2)/ The charcoal:

Generally speaking, there is two kinds of charcoal

Raw wood charcoal

For the raw wood charcoal, one set of carbonization furnace will be enough, but the raw wood charcoal have no regular shape, and the calorific value will be lower than the machine-made charcoal .

Sawdust briquette charcoal (machine-made charcoal)

For the machine-made charcoal, first you need the briquette machine to extrude the sawdust to sawdust briquette, then put the sawdust briquette into the carbonization stove, you can get the regular shaped and better-quality charcoal.

E/ the electrical supply in your country:

In China, our electrical supply is 3Phase, 380V, 50Hz , if the electrical supply are different with us, we will change the electrical power for you.

F/ the final usage of the product:

It will depends on the usage, if you just need the briquette stick do fuel, the briquette machine are ok (if your raw material meet the requirement). but if you want to get charcoal, you need the other set of carbonization stove to carbonizing the wood.

G/ Production line:

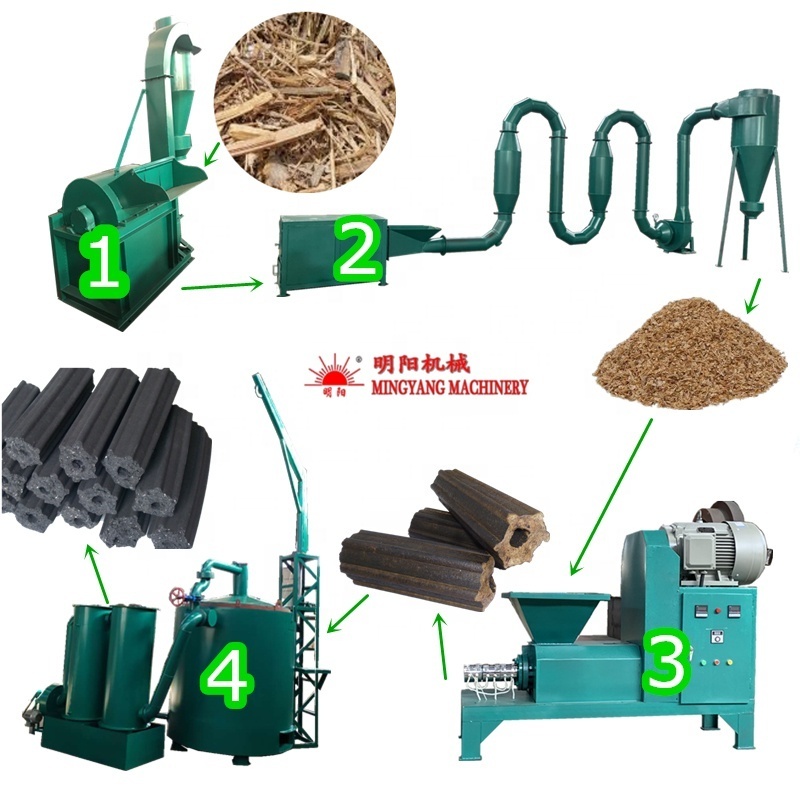

All the steps have been finished, this is the flow chart to make charcoal. You will be intersted in this chart. And then call me to talk about the detailed information.
