Quick Details
-
Walkie Talkie Type:
-
Waterproof radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Puxing long distance walkie talkie
-
Model Number:
-
PX-558 long distance walkie talkie
-
Dimensions:
-
110x50x35MM
-
Frequency Range:
-
136-174/400-470/446/245MHZ
-
Product Name:
-
waki taki waterproof vhf uhf radios long distance walkie talkie
-
color:
-
black
-
weight:
-
190g(including battery)
-
Battery:
-
1300/1600mAh
-
Output Power:
-
4W/5W
-
Operating Voltage:
-
7.4V DC
-
Certificate:
-
FCC CE IP67
-
Warranty:
-
12 Months
-
waterproof:
-
IP67
-
Certification:
-
ce
Quick Details
-
Talk Range:
-
5-10KM
-
Terminal style:
-
Handheld
-
Storage Channel:
-
16 Channels
-
Walkie Talkie Type:
-
Waterproof radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Puxing long distance walkie talkie
-
Model Number:
-
PX-558 long distance walkie talkie
-
Dimensions:
-
110x50x35MM
-
Frequency Range:
-
136-174/400-470/446/245MHZ
-
Product Name:
-
waki taki waterproof vhf uhf radios long distance walkie talkie
-
color:
-
black
-
weight:
-
190g(including battery)
-
Battery:
-
1300/1600mAh
-
Output Power:
-
4W/5W
-
Operating Voltage:
-
7.4V DC
-
Certificate:
-
FCC CE IP67
-
Warranty:
-
12 Months
-
waterproof:
-
IP67
-
Certification:
-
ce

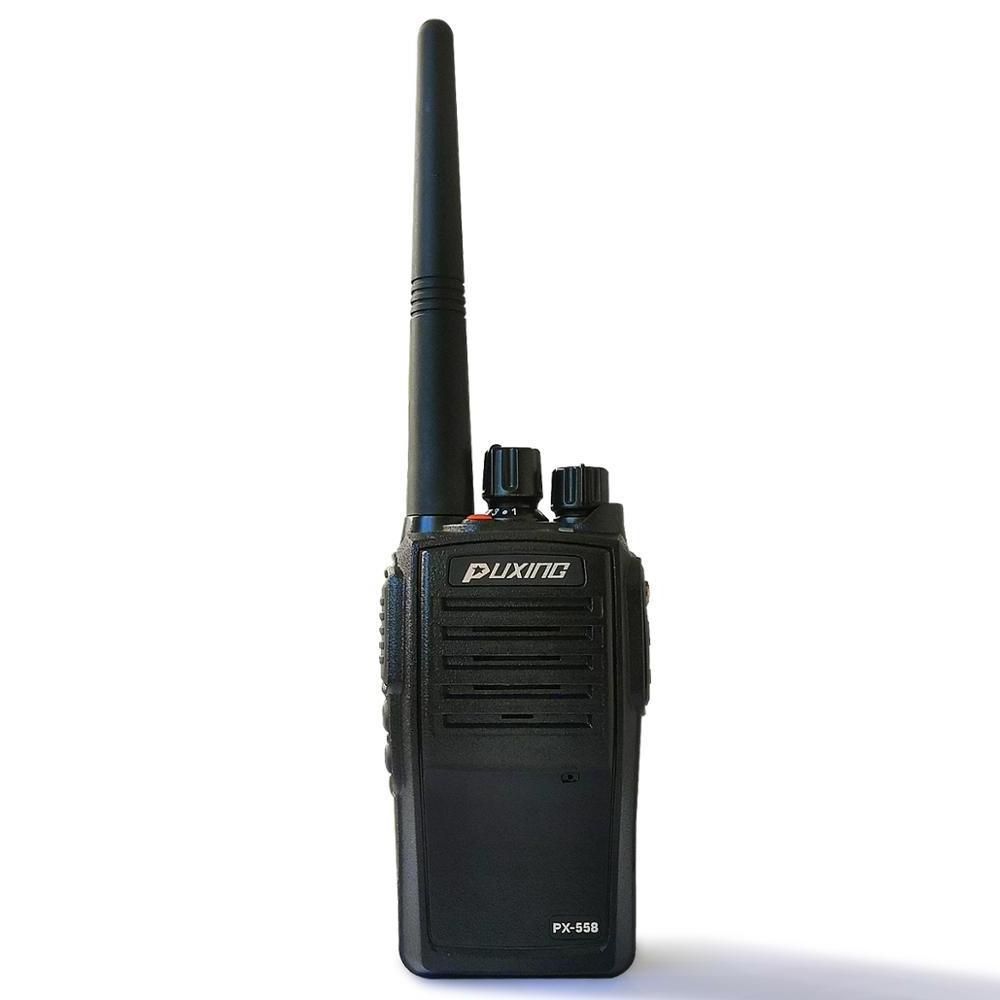

PX-558 5W 16 channels waki taki waterproof vhf uhf radios long distance walkie talkie
| MODEL | PX-558 IP67 compact two way radio | |
| Waterproof and dustproof | IP67/suit for wade through water marine application | |
| Size | 110x50x35MM compact ruggy case/anti-dropping | |
| Frequency range | 136-174/400-470/446/245MHZ | |
| Power output | 4W/5W | |
| Battery | 1300/1600mAh | |
| New design PCB | strong performance+better penetration | |
| Channel capacity | 16 channels | |
| Weight | 190g | |
| Operating voltage | 7.4V DC | |
| Operating temperature | -20°C +55°C | |
| Functions | ruggy case / VOX 1-9level;PTT ID transmission mode selection | |
| non-standard CTCSS input.Moitor scan/scan temperary delete | ||
| high/low power selectable/talk around/reverse frequency | ||
| busy channels lockout/DTMF ANI encode/50 CTCSS and 105 DCS | ||
| side keys programmable/emergency call/end roger | ||
| Transmitter | ||
| Modulation | 16KΦF3E | 11KΦF3E |
| Adjacent Channel | ≥70dB | ≥60dB |
| Hum & Noise | ≥40dB | ≥36dB |
| Spurious Emission | ≥-36dB | ≥-36dB |
| Audio power output | 500mW / 10% | |
| Audio Response | +2~-3dB(0.3~3KHz) | +2~-3dB(0.3~2.25KHz) |
| Channel spacing | 12.5/20/25KHz | |
| Frequency stability | ±2.5ppm | |
| Phase-locked step | 5KHz,6.25KHz | |
| Wide band | Narrow band | |
| Audio Distortion | ≤5% | |
| Receiver | ||
| Wide band | Narrow band | |
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV |
| Adjacent Channel Selectivity | ≥55dB | ≥55dB |
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥55dB | ≥55dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) |
| Hum & Noise | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | |
| Squelch level | 0-9 adjustable | |
| TOT | 0-270S | |
Main Items:
- 1 x Host
- 1 x DC7.4V single Li-ion Battery compatible
- 1 x Antenna
- 1 x Belt Clip
- 1 x Use’s Manual
- 1 x Charger
- 1 x Hand strap
1. Q: What’s your MOQ?
A: 1pc if we have stock, if custom order, the moq is 500pcs, if your order qty can not reach 500pcs, pls contact us to discuss if there is any other solutions.
2. Q: Are you factory?
A: Yes, our factory was established in Quanzhou City in the year 1987, and moved to Xiamen city in the year 2005. We are a 10-year gold supplier on Alibaba, and awarded high trade assurance limit.
3. Q: Can you accept OEM&ODM order?
A: Yes, we are good at OEM&ODM and we provided this service for many Top brand all over the world.
4. Q: Do you have any certification?
A: Yes, we have CE, FCC and RoHS certificate. If you need other certificate, please contact us.
5. Q: When can you ship the products after payment?
A: For sample order, we can ship in about 7 days, if bulk order, normally 45days if no stock.
6. Q: What is your payment terms?
A: T/T or PayPal or L/C, also can accept Alibaba Trade Assurance.
7. Q: How to ship?
A: Normally small orders to be ship by courier (DHL,TNT,FedEx,UPS,etc.), bulk orders to be ship by sea or air, depends on customer’s requests.
8. Q: How long is the warranty?
A: We will do 100% QC inspection before shipment . And w e guarantee 12months for radios and 6months for accessories from the date you get the goods, excludes damaged by human .
