Quick Details
-
Power:
-
7.5 kw
-
Dimension(L*W*H):
-
1200*600*300 cm
-
Weight (KG):
-
450
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
key words:
-
grinding wood chips to sawdust machine
-
model:
-
PSW 420
-
motor:
-
7.5 kw
-
suitable feed lod diameter:
-
< 100 mm
-
capacity 3*3 mm:
-
1T/H
-
working speed:
-
2600 r/min
-
cutter plater diameter:
-
420 mm
-
blade size:
-
90*60*8 mm
-
MOQ:
-
1 set of grinding wood chips to sawdust machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
pasen machine
-
Voltage:
-
380v 220v
-
Power:
-
7.5 kw
-
Dimension(L*W*H):
-
1200*600*300 cm
-
Weight (KG):
-
450
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
key words:
-
grinding wood chips to sawdust machine
-
model:
-
PSW 420
-
motor:
-
7.5 kw
-
suitable feed lod diameter:
-
< 100 mm
-
capacity 3*3 mm:
-
1T/H
-
working speed:
-
2600 r/min
-
cutter plater diameter:
-
420 mm
-
blade size:
-
90*60*8 mm
-
MOQ:
-
1 set of grinding wood chips to sawdust machine

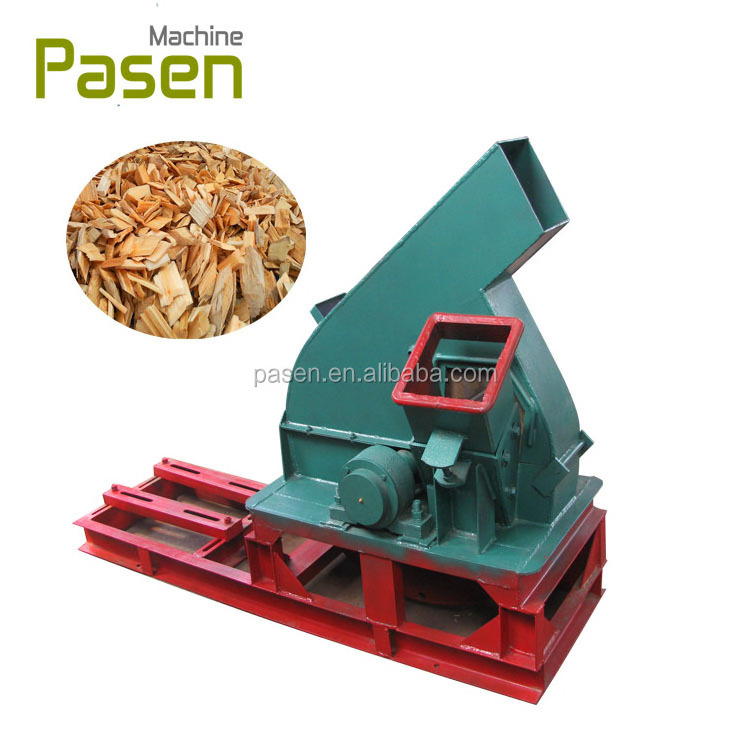

china golden supplier wood sawdust making machine / sawdust grinding machine / grinding wood chips to sawdust machine
Specifications of
wood sawdust making machine
1: with hammer and blade inside
2:sawdust size can be 0.3-10mm
3 capacity: 300-8000kg/h
Introduction of
wood sawdust making machine
This is one new design wood log crusher , suitable for wood material and all kinds of grain , agriculture waste and so on , it use the blades and hammers inside to crush/grind material into small pieces or powder ,
it’s the best and most efficient machine for feed plant , farm and forest working
Features of
wood sawdust making machine
1: it has 3 feeding hopper in one machine , separately for : big wood , bamboo , another for grain grinding ,
and the left one used for small size braches ,corncob, and agriculture waste
2: crushed /grinded size can be adjusted by changing the screen inside according to need , can be 0.2-10mm
3: Use one motor to save energe , also can save working place to have all function in one
4: Can be driven by electricity or by diesel engine
Technical detail of wood sawdust making machine
|
Type |
PSW -420 |
PSW -500 |
PSW -600 |
PSW -700 |
|
Motor |
7.5kw |
15kw |
18.5kw |
30KW |
|
Blade (pcs) |
4 |
4 |
4 |
6 |
|
Blade size |
90*60*8mm |
120*70*8mm |
150*70*8mm |
150*70*8mm |
|
Working speed |
2600r/min |
2000r/min |
2000r/min |
2000r/min |
|
Capacity (3*3mm) |
1t/h |
1.5 t/h |
2.2t/h |
3t/h |
|
Suitable onput Log diameter |
<100mm |
<180mm |
<230mm |
<250mm |
|
Cutter plater diameter |
420mm |
500mm |
600mm |
700mm |
wooden package and LCL loading and full container loading
|
Delivery Time |
Within 5-7 working days after receiving clients’ payment. |
|
Payment Terms |
T/T, L/C, D/P, D/A, Escrow, Paypal, Western Union |
|
Packing |
a. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea.
|
|
Quality Guarantee Terms |
Quality guarantee term is for one year. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
|
Service |
All produts purchased in our company are guaranteed to keep in good repair for two years. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.
|
