Quick Details
-
Dimension(L*W*H):
-
7m*1.3m*2.1m
-
Weight:
-
4000
-
Power (kW):
-
11
-
Speed of bobbins:
-
2200-4000 r/min
-
Direction ot twist:
-
S - Z
-
Twist scope:
-
35-404 twist/m
-
Spindle gauge:
-
250mm
-
Steel collar lift:
-
300mm
-
Operation method:
-
double hand
-
Frame:
-
Cast
-
Inverter:
-
ABB
-
Motor:
-
Siemens
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YiRun
-
Voltage:
-
380v/50Hz, 380v/50Hz
-
Dimension(L*W*H):
-
7m*1.3m*2.1m
-
Weight:
-
4000
-
Power (kW):
-
11
-
Speed of bobbins:
-
2200-4000 r/min
-
Direction ot twist:
-
S - Z
-
Twist scope:
-
35-404 twist/m
-
Spindle gauge:
-
250mm
-
Steel collar lift:
-
300mm
-
Operation method:
-
double hand
-
Frame:
-
Cast
-
Inverter:
-
ABB
-
Motor:
-
Siemens

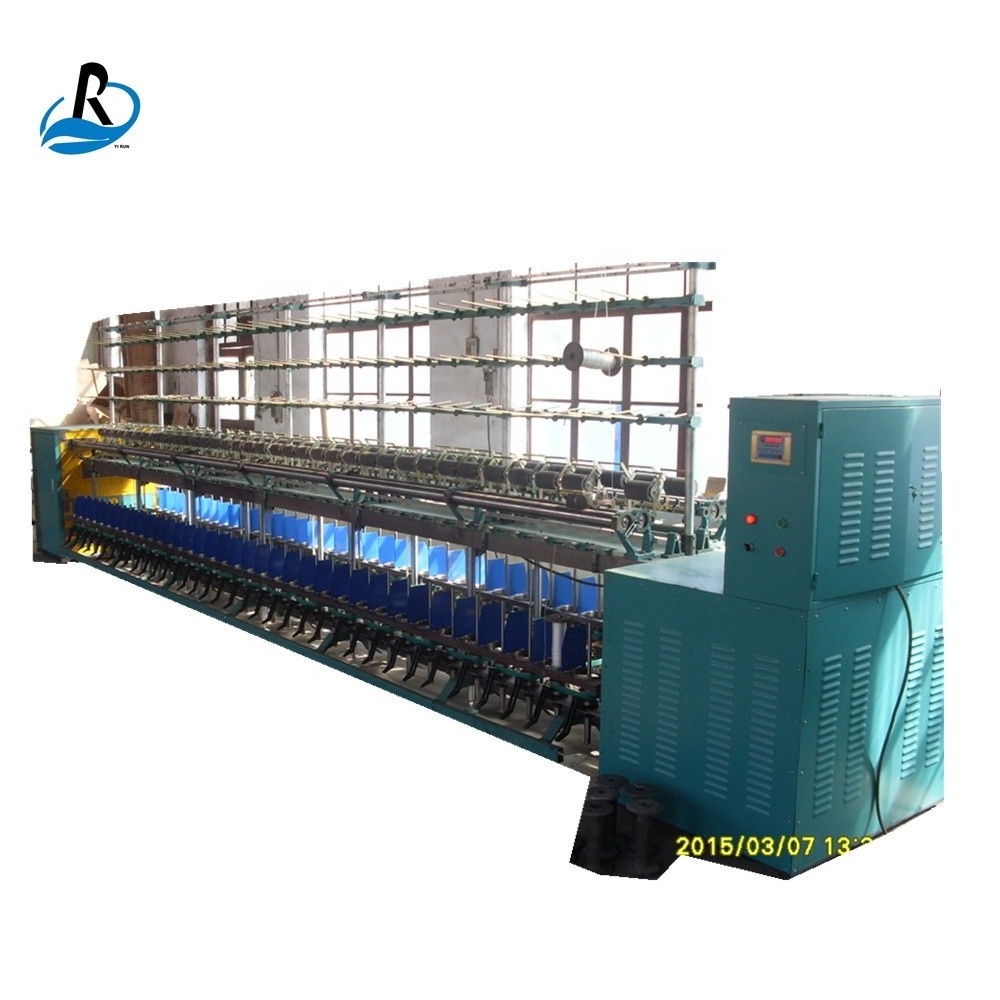

New Condition Ring Bobbin Twisted Rope Making Machine is used for twisting all kinds of plastic yarn/monofilament, cotton thread, and long chemical fibre tow into single-strand ropes, fishing lines and cord yarn etc.
Features:
1. compact structure and smooth running.
2. high speed and low noise.
3. adjustable ring plate for up and down.
| SPECIFICATION FOR NXJ-200 TWISTING MACHINE | |||
| Main performance parameters | Number of spindles | / | 16/24/32/40/48/56/64/72 |
| Motor power | kw | 7.5/7.5/11/11/15/15/22/22 | |
| Weight | kgs | 1900-6800 | |
| Steel Collar Lift | mm | 300 | |
| Spindle Gauge | mm | 250 | |
| Twist Scope | twist/m | 35-404 | |
| Speed of bobbins | r/min | 2200-4000 | |
SERVICE
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. The buyer have to pay the salary , and the air ticket, accommodation,
3. Meals and some related fees should be your responsibility.
4. It is in same condition if the buyer need the seller to send the interpreter.
GUARANTEE
1. Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free.
2. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
3. The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer's country.
