Quick Details
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Travel (X Axis)(mm):
-
500 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Positioning Accuracy (mm):
-
0.003
-
Repeatability (X/Y/Z) (mm):
-
Enquiry us
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2500*1750*1800
-
Model Number:
-
TCK56x500
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
3000
-
Machine Type:
-
CNC Turning Center
-
After-sales Service Provided:
-
Video Technical Support
-
Function:
-
Turning Milling Drilling
-
Local Service Location:
-
Indonesia Russia
-
Application:
-
Multi Purpose Metal Working
-
Color:
-
Customers' Requirement
-
Max. swing over bed:
-
400
-
Max. swing over cross slide:
-
140
-
X/Z axis travel:
-
400/500
-
Spindle unit:
-
140
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
1000
-
Year:
-
Least day
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Travel (X Axis)(mm):
-
500 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Positioning Accuracy (mm):
-
0.003
-
Repeatability (X/Y/Z) (mm):
-
Enquiry us
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2500*1750*1800
-
Model Number:
-
TCK56x500
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
3000
-
Machine Type:
-
CNC Turning Center
-
After-sales Service Provided:
-
Video Technical Support
-
Function:
-
Turning Milling Drilling
-
Local Service Location:
-
Indonesia Russia
-
Application:
-
Multi Purpose Metal Working
-
Color:
-
Customers' Requirement
-
Max. swing over bed:
-
400
-
Max. swing over cross slide:
-
140
-
X/Z axis travel:
-
400/500
-
Spindle unit:
-
140

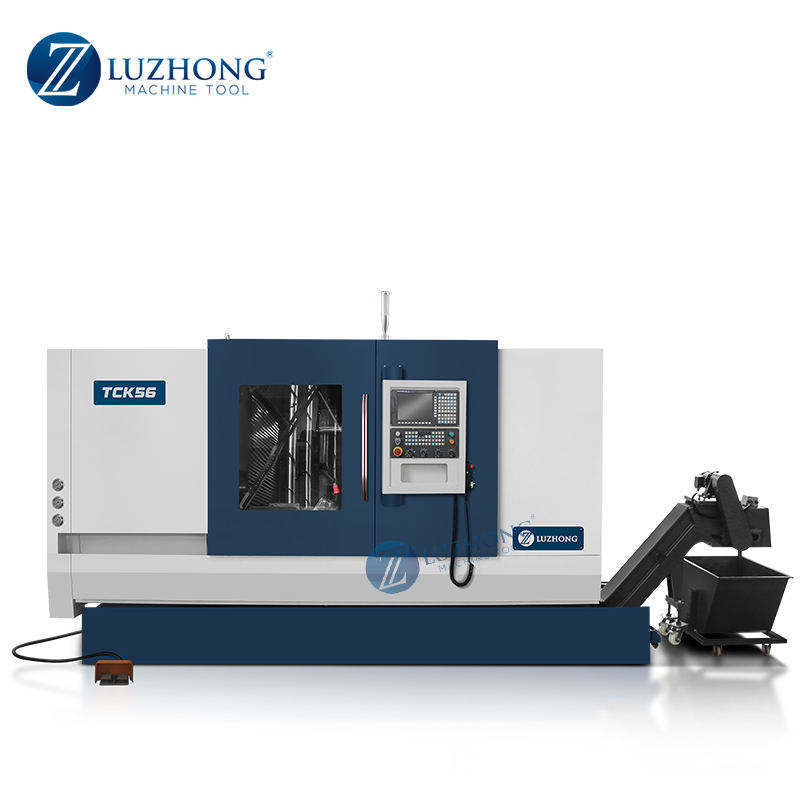

CNC Lathe milling machine with Y axis TCK56x500 5 Axis Slant Bed CNC Lathe for Sale
Product Description
Specification
FEATURES：
C axis
Y axis
4+4 milling head
C axis
Y axis
4+4 milling head
|
SPECIFICATIONS
|
Units
|
TCK56/1000
|
|
Max Swing Diameter over bed
|
mm
|
560
|
|
Max Swing Diameter over cross slide
|
mm
|
350
|
|
Max. workpiece lenght
|
mm
|
1000
|
|
Spindle bore diameter
|
mm
|
65
|
|
Bar capacity
|
mm
|
50
|
|
Spindle nose type
|
-
|
A2-6
|
|
Spindle speed range
|
rpm
|
50-4500
|
|
Turret/tool post
|
-
|
8 Position servo turret
|
|
fool size
|
mm
|
25*25
|
|
X axis travel
|
mm
|
200
|
|
Z axis travel
|
mm
|
1050
|
|
Xaxis rapid traverse
|
mm/min
|
30000
|
|
Z axis rapid traverse
|
mm/min
|
30000
|
|
Main motor power
|
kw
|
11/15
|
