Quick Details
-
Output Speed:
-
0.13~1116r/min
-
Warranty:
-
1 YEAR
-
Weight (KG):
-
30 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EVERGEAR
-
Housing:
-
Iron Cast, HT250/200
-
Heat treatment:
-
58-62 HRC
-
Input Form:
-
Solid Shaft Input, Motor
-
Mounting Position:
-
Foot Mounted. Flange Mounted
-
Gear material:
-
20CrMnTi, 40Cr
-
Noise:
-
80-90Db
-
Oil sealing:
-
NAK, high quality domestic
-
Bearing:
-
LYC, HRB, high quality domestic
-
Certificate:
-
CE, ISO9001
-
Output ends:
-
Solid shaft, flange
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
Max18000N.m
-
Input Speed:
-
1400rpm
-
Output Speed:
-
0.13~1116r/min
-
Warranty:
-
1 YEAR
-
Weight (KG):
-
30 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EVERGEAR
-
Housing:
-
Iron Cast, HT250/200
-
Heat treatment:
-
58-62 HRC
-
Input Form:
-
Solid Shaft Input, Motor
-
Mounting Position:
-
Foot Mounted. Flange Mounted
-
Gear material:
-
20CrMnTi, 40Cr
-
Noise:
-
80-90Db
-
Oil sealing:
-
NAK, high quality domestic
-
Bearing:
-
LYC, HRB, high quality domestic
-
Certificate:
-
CE, ISO9001
-
Output ends:
-
Solid shaft, flange

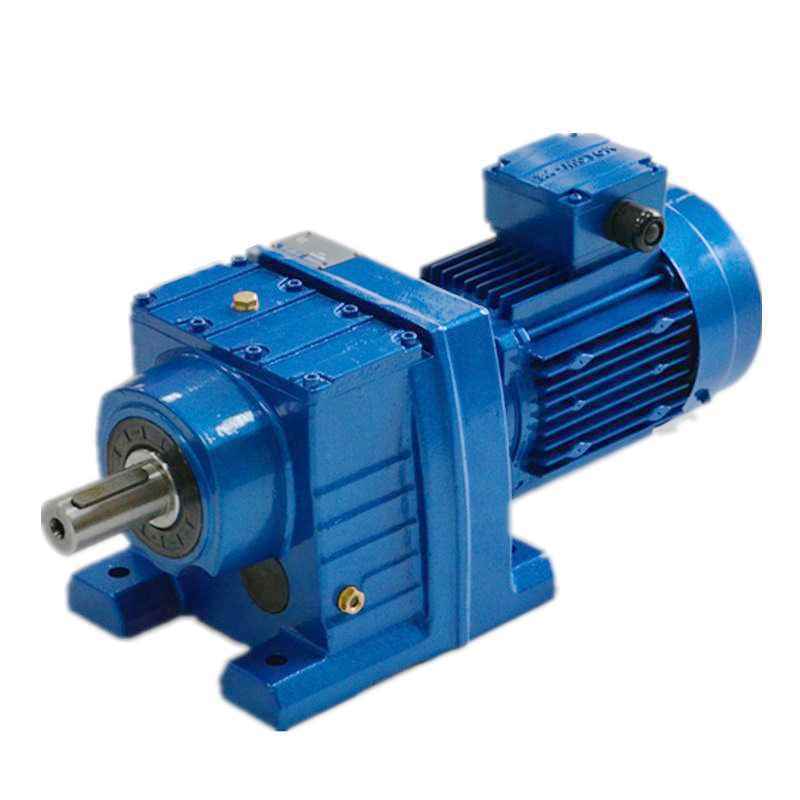

EVERGEAR R/S/F/K series motoreductor 10 hp con frenado helical gearbox
Design of R Series
R .
2/3 stage gear unit
Solid output shaft with foot mounting
RF.
2/3 stage gear unit
Solid output shaft with Flange mounting
RM.
2/3 stage gear unit
Solid output shaft, Flange-mounting with extended bearing hub
RX.
Single stage gear unit
Solid output shaft with foot-mounting
RXF.
Single stage gear unit
Solid output shaft with flange mounting
Mounting Position of
R
Series
Product Description
|
R Series Inline Shaft Helical Gear Motor (2/3 Stages)
|
|
|
|
|
|
|
|
|||||||
|
Size
|
R17
|
R27
|
R37
|
R47
|
R57
|
R67
|
R77
|
|||||||
|
Code of Output Designation
|
R, RF
|
|
|
R, RF, RFM
|
|
|
|
|||||||
|
Input Power(kw)
|
0.12-0.75
|
0.12-3
|
0.12-3
|
0.12-5.5
|
0.12-7.5
|
0.12-7.5
|
0.18-11
|
|||||||
|
Ratio
|
3.83-81364
|
3.37-138.79
|
3.41-134.82
|
3.06-172.76
|
4.28-169.54
|
4.29-190
|
4.54-225.68
|
|||||||
|
Max.Torque(Nm)
|
85
|
130
|
200
|
300
|
450
|
600
|
820
|
|||||||
|
|
R87
|
R97
|
R107
|
R137
|
R147
|
167
|
R177
|
|||||||
|
|
R, RF, RFM
|
|
|
|
|
|
|
|||||||
|
|
0.55-22
|
0.55-30
|
2.2-45
|
5.5-55
|
7.5-90
|
11-160
|
11-200
|
|||||||
|
|
4.54-253.56
|
4.5-285.61
|
4.39-250.65
|
4.94-216.82
|
5-170.22
|
10.24-229.71
|
8.74-216.07
|
|||||||
|
|
1550
|
3000
|
4300
|
8000
|
13000
|
18000
|
32000
|
|||||||
|
RX Series Inline Shaft Helical Gear Motor(Single Stage)
|
|
|
|
|
|
|
|
|||||||
|
RX57
|
RX67
|
RX77
|
RX87
|
RX97
|
RX107
|
RX127
|
RX157
|
|||||||
|
RX, RXF
|
|
|
|
|
|
|
|
|||||||
|
0.12-5.5
|
0.12-7.5
|
1.1-11
|
3-22
|
5.5-30
|
5.5-45
|
7.5-90
|
11-132
|
|||||||
|
1.26-5.5
|
1.4-6.07
|
1.42-5.63
|
1.39-6.45
|
1.42-5.79
|
1.44-6.63
|
1.56-7
|
1.63-6.2
|
|||||||
|
69
|
134
|
215
|
405
|
595
|
830
|
1110
|
1680
|
|||||||
|
TECHNICAL PERFORMANCE
|
|
|
|
|
||||
|
Housing Hardness
|
HBS190-240
|
|
|
|
||||
|
Gear Hardness
|
HRC58-62
|
|
|
|
||||
|
Gear Precision
|
5-6 Grade
|
|
|
|
||||
|
Efficiency
|
94-96%
|
|
|
|
||||
|
Noise
|
60-68dB
|
|
|
|
||||
|
Tem. Rise
|
40 Degree
|
|
|
|
||||
|
Tem. Rise(Oil)
|
50 Degree
|
|
|
|
||||
|
Vibration
|
20
|
|
|
|
||||
|
Backlash
|
20 Arcmin
|
|
|
|
||||
|
Lubricating Oil
|
GB L-CKC220-460, SHELL OMALA 220-460
|
|
|
|
||||
|
Bearing
|
China Top Brand: HRB/LYC/ZWZ/C&U, or Imported Brand as Requested: SKF, NSK, FAG
|
|
|
|
||||
|
Oil sealing
|
NAK(Taiwan brand) and other High Quality Domestic Brand, or as requested
|
|
|
|
||||
