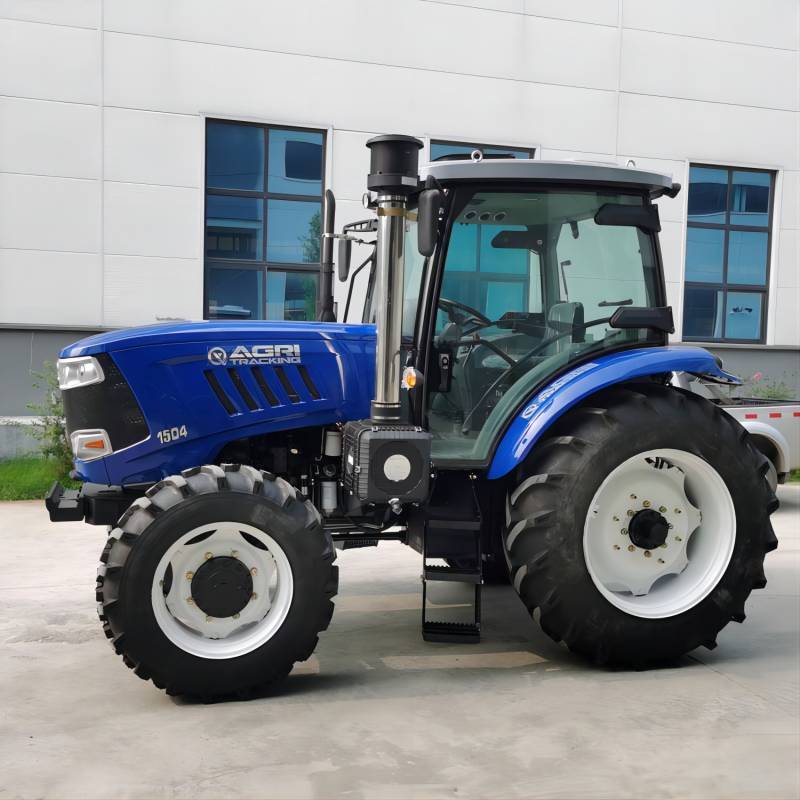

agricultural farming garden wheel tractor 150HP with grammer seat
agricultural farming garden wheel tractor 150HP with grammer seat
agricultural farming garden wheel tractor 150HP with grammer seat
agricultural farming garden wheel tractor 150HP with grammer seat
agricultural farming garden wheel tractor 150HP with grammer seat
agricultural farming garden wheel tractor 150HP with grammer seat
agricultural farming garden wheel tractor 150HP with grammer seat
agricultural farming garden wheel tractor 150HP with grammer seat

agricultural farming garden wheel tractor 150HP with grammer seat

FOB Reference Price: Get Latest Price
≥1 Sets
US $17000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

models:
AG1504
Overall dimensions(mm):
4750*2100*29850
Power output speed(rpm):
760/850 760/1000
The clutch:
14 inch double action
Transmission gear:
16*18 synchronizer
The wheelbase(mm):
2342
Forward speed range(km/h):
2.46-32.73
Regress velocity range(km/h):
2.15-28.69
The front wheel track(mm):
1630/1950
The rear wheel tread(mm):
1620-2420

Quick Details

Place of Origin:
Shandong, China
Engine Brand:
National Three
Weight:
4600 KG
models:
AG1504
Overall dimensions(mm):
4750*2100*29850
Power output speed(rpm):
760/850 760/1000
The clutch:
14 inch double action
Transmission gear:
16*18 synchronizer
The wheelbase(mm):
2342
Forward speed range(km/h):
2.46-32.73
Regress velocity range(km/h):
2.15-28.69
The front wheel track(mm):
1630/1950
The rear wheel tread(mm):
1620-2420
Products Description
1.Streamlined body design, showing the beauty of sports, is your right-hand man in the field when farming.
2.Powerful, introverted and elegant, every detail can let you feel the value for money.
3.Fine workmanship, energy conservation, environmental protection, low fuel consumption, make you double income wealth, easy to get rich.
4.Rapid response, systematic and thoughtful after-sales service is our quality commitment to you.
5.The concept of careful meticulous, make our brand walk farther and more influential.



PRODUCT SPECIFICATIONS
models
904-BA1(Safety awning)
904-BA2(the cab)
1004-B2(the cab)
Overall dimensions(mm)
4100*1590*2780
4100*1590*2700
4100*1950*2700
Engine power(kw)
66.2
66.2
73.5
Power output speed(rpm)
540/1000 540/760
540/1000 540/760
540/100 or 540/760
The clutch
11 inch double action
11 inch double action
11 inch double action
Transmission gear
12*12 mesh set Or 12+12 synchronizer
12*12 mesh set Or 12+12 synchronizer
12*12 mesh set Or 12+12 synchronizer
The wheelbase(mm)
2052
2052
2052
Forward speed range (km/h)
2.46-32.73
2.46-32.73
2.46-32.73
Regress velocity range (km/h)
2.15-28.69
2.15-28.69
2.15-28.69
The front wheel track (mm)
1450/1408
1450/1408
1450/1408
The rear wheel tread(mm)
1300-1700
1300-1700
1200-1500
Lifter
crush
crush
crush
Minimum ground clearance
375
375
375
Oil pressure capacity (L)
71 or 133
71 or 133
133
Hydraulic output
two groups
two grops
two grops
Front and rear counterweights(kg)
144/60
144/60
Engine emission
Country three or country four
Country three or country four
Country three or country four
Tire model
280/85R20,14.9-30 or 280/85R20,420/85R28 or 8.3-24/14.9-30 or paddy field 8.3-24/11-32
280/85R20,14.9-30 or 280/85R20,420/85R28 or 8.3-24/14.9-30 or paddy field 8.3-24/11-32
280/85R20,14.9-30 or 280/85R20,420/85R28 or 8.3-24/14.9-30 or paddy field 8.3-24/11-32
Auxiliary engine
Quanchai/Xinchai/Yunnei
Quanchai/Xinchai/Yunnei
Quanchai/Xinchai/Yunnei
Details Images
Luxury cab
Oil return filter
Radial tire
Convenient lifting handle
