Quick Details
-
Luminous Efficacy(lm/w):
-
120
-
Product Weight（kg）:
-
0.15
-
Luminous Intensity:
-
2817
-
Luminous Flux(lm):
-
2817
-
Optical Attenuation(%):
-
2
-
Power Dissipation:
-
26W
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
2400-7000
-
Operating Temperature(℃):
-
-20 - 40
-
Storage Temperature(℃):
-
-20 - 80
-
Place of Origin:
-
Guangdong, China
-
PCB material:
-
aluminum
-
Thickness of PCB:
-
2.0mm
-
PCB size:
-
L560XW20mm
-
LED type:
-
2835SMD LED
-
Spare parts:
-
with push-button for easy installation
-
LED quantity:
-
48pcs
-
IP Rating:
-
IP20
-
Warranty:
-
3 years
-
supply:
-
LED Tri-proof light, LED linear light
-
remarks:
-
OEM ODM
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Warranty(Year):
-
3-Year
-
Support Dimmer:
-
NO
-
Luminous Efficacy(lm/w):
-
120
-
Product Weight（kg）:
-
0.15
-
Luminous Intensity:
-
2817
-
Luminous Flux(lm):
-
2817
-
Optical Attenuation(%):
-
2
-
Power Dissipation:
-
26W
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
2400-7000
-
Operating Temperature(℃):
-
-20 - 40
-
Storage Temperature(℃):
-
-20 - 80
-
Place of Origin:
-
Guangdong, China
-
PCB material:
-
aluminum
-
Thickness of PCB:
-
2.0mm
-
PCB size:
-
L560XW20mm
-
LED type:
-
2835SMD LED
-
Spare parts:
-
with push-button for easy installation
-
LED quantity:
-
48pcs
-
IP Rating:
-
IP20
-
Warranty:
-
3 years
-
supply:
-
LED Tri-proof light, LED linear light
-
remarks:
-
OEM ODM

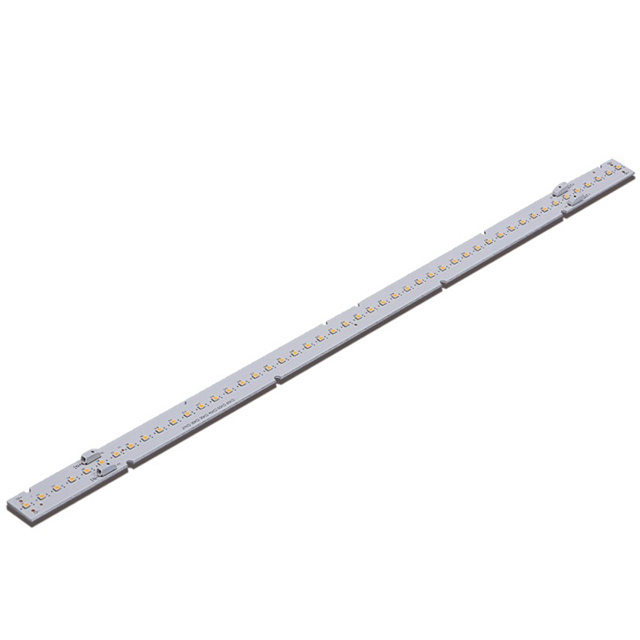

3 years warranty customized aluminum PCB 3030 SMD 2835SMD 5050 SMD LED linear modules for linear light LED tubes
Profile:
3 years warranty customized aluminum PCB 3030 SMD 2835SMD 5050 SMD LED linear modules for linear light LED tubes
Life span: 50000 hours
Lower power consumption
No UV no IR light radiation
No mercury or other inorganics
No spots, no shadow
Highest optical efficiency
Color temperature for white:
Warm white: 2400-3500K
Pure white: 4000-5500K
Cool white: 6000-7000K
Save and stable for using
CE, Rohs certification
Energy saving
Environment friendly
Warranty time: 3 years
Specifications:
3 years warranty customized aluminum PCB 3030 SMD 2835SMD 5050 SMD LED linear modules for linear light LED tubes
Golden wire copper bracket 2835SMD LED
Lumen efficiency: 170 LM/W
Aluminum PCB
LED quantity: 48pcs
PCB size:
Length: 560mm
Width: 20mm
1 Ounce copper layer
Push-in connector for easy assembling
Main characteristics:
| Model No. | LED Q'ty/pc |
Power |
Current | Flu(25 ℃) | Flu(65 ℃) | Voltage |
| CL-560X20-2835-48-10 | 48 | 10W | 150mA | 1520LM | 1420LM | DC30-36V |
| CL- 560X20-2835-48-17 | 48 | 17W | 250mA | 2340LM | 2168LM | DC30-36V |
| CL- 560X20-2835-48-21 | 48 | 21W | 300mA | 2814LM | 2604LM | DC30-36V |
Dimensions (mm):
Length: 560mm
Width: 20mm
Wire connections:
Environmental requirements:
Working temperature: -20 ~ 40 ℃
Storage temperature: -20 ~ 80 ℃
Working humidity: 30% ~ 85%
Storage humidity: 10% ~ 90%
Applications:
Energy saving programs
Sustainable energy
High-class stores, shopping malls
Hotel, entertainment place
Meeting room, multi-function hall
Exhibition, fashionable dress act lighting
Saloon, coffee house, photography area
Living room lighting, commercial lighting
Museum lighting
Architectural lighting
