- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380v/Customizable
-
Dimension(L*W*H):
-
1500mm*900mm*1200mm
-
Weight:
-
1000kg
-
Working Pressure:
-
25bar, 16bar
-
Marketing Type:
-
New Product 2022
-
Product name:
-
reciprocating piston Compressor
-
Motor power:
-
Customizable
-
Cooling type:
-
Air cooling / Water cooling
-
Noise level:
-
less
-
Feature:
-
reciprocating
-
Application:
-
Industrial / Hospital / Food / Medical
-
OEM:
-
Yes
-
Pressure:
-
1.6Mp / 2.4Mpa
-
MOQ:
-
1 PC
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sparta
-
Model Number:
-
custom-made model
-
Voltage:
-
220V/380v/Customizable
-
Dimension(L*W*H):
-
1500mm*900mm*1200mm
-
Weight:
-
1000kg
-
Working Pressure:
-
25bar, 16bar
-
Marketing Type:
-
New Product 2022
-
Product name:
-
reciprocating piston Compressor
-
Motor power:
-
Customizable
-
Cooling type:
-
Air cooling / Water cooling
-
Noise level:
-
less
-
Feature:
-
reciprocating
-
Application:
-
Industrial / Hospital / Food / Medical
-
OEM:
-
Yes
-
Pressure:
-
1.6Mp / 2.4Mpa
-
MOQ:
-
1 PC

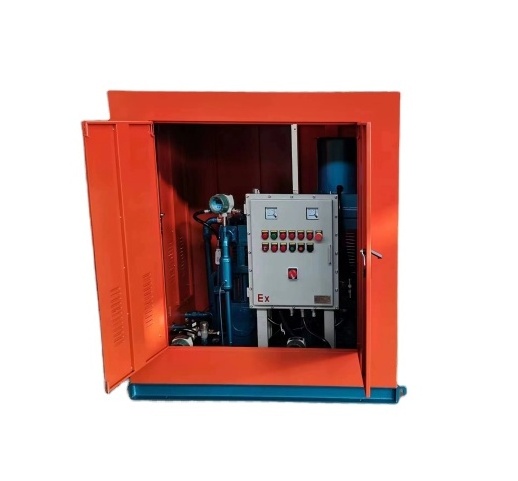

Customizable LPG CNG Liquefied Petroleum Gas Compressor With Insulation Compartment
The following pictures and parameters are for display only. All piston machines need to be customized with the manufacturer.
Please contact Ivy: +8615154113011
Please contact Ivy: +8615154113011
Product Description
Electric control:
Inlet air pressure, exhaust pressure, oil pressure exhaust temperature, and horizontal control Alarm shutdown, non-explosion-proof control cabinet, direct open.
service substance: liquefied gas
Ambient temperatures of 45℃ to – 45 ℃
inlet temperature: ≤35℃
delivery temperature: 50℃ (after cooling)
Ambient temperatures of 45℃ to – 45 ℃
inlet temperature: ≤35℃
delivery temperature: 50℃ (after cooling)
* External insulation chamber, suitable for outdoor use in extreme weather!
|
Project model
|
|
ZW-2.0/16-24
|
|
|
Compressed medium
|
|
liquefied gas
|
|
|
structural style
|
|
Vertical single action
|
|
|
Compressed series
|
|
1
|
|
|
number of cylinders
|
|
2
|
|
|
Exhaent (m³ / min)
|
|
2.0
|
|
|
Inspiratory Pressure (Mpa)
|
|
1.6
|
|
|
Exhaust pressure (Mpa)
|
|
2.4
|
|
|
suction temperature (℃)
|
|
≤40
|
|
|
delivery temperature (℃)
|
|
≤110
|
|
|
Speed Speed (r/min)
|
|
890
|
|
|
driving mode
|
|
leather belt
|
|
|
Relief Valve relief pressure (Mpa)
|
|
1.68±0.05
|
|
|
lubricating system
|
Forced lubricgtion
|
Crankshaft, connecting rod, and crosshead
|
|
|
|
oil-free lubrication
|
Cylinder, filler
|
|
|
lube
|
summer
|
L-DAB150
|
|
|
|
winter
|
L-DAB100
|
|
|
Explosion-proof motor model
|
|
YB225S-4
|
|
|
power (kw)
|
|
37
|
|
|
rated voltage (V)
|
|
380
|
|
|
Unit Weight (kg)
|
|
About 1000
|
|
|
outline dimension (m)
|
|
About 15009001200
|
|
|
|
|
Inlet air pressure, exhaust pressure, oil pressure exhaust temperature, and horizontal control Alarm shutdown, non-explosion-proof control cabinet, direct open
|
|
|
|
|
Compressor host, air intake filter, explosion-proof motor, instrument pipeline, safety valve, public base, random technical documents.
|
|
