Quick Details
-
Voltage:
-
380V/220V
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Longxiang
-
Model Number:
-
LX-D3
-
Warranty:
-
1 year
-
Certification:
-
ce
-
Heating System:
-
Electric Heater
-
Lighting System:
-
LED Light
-
Color:
-
Blue
-
Fans kind:
-
Centrifugal Fans
-
Filter system:
-
High Efficinet Ceiling Filter
-
Basement:
-
Steel Grill + Diamond Plate Ramp
-
Control system:
-
Standard Control System
-
Max.temperature:
-
60-80 Degree
-
Voltage/Frequency:
-
220v-380V
Quick Details
-
Power:
-
42KW
-
External Size:
-
7000*5200*3400mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380V/220V
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Longxiang
-
Model Number:
-
LX-D3
-
Warranty:
-
1 year
-
Certification:
-
ce
-
Heating System:
-
Electric Heater
-
Lighting System:
-
LED Light
-
Color:
-
Blue
-
Fans kind:
-
Centrifugal Fans
-
Filter system:
-
High Efficinet Ceiling Filter
-
Basement:
-
Steel Grill + Diamond Plate Ramp
-
Control system:
-
Standard Control System
-
Max.temperature:
-
60-80 Degree
-
Voltage/Frequency:
-
220v-380V
Products Description
|

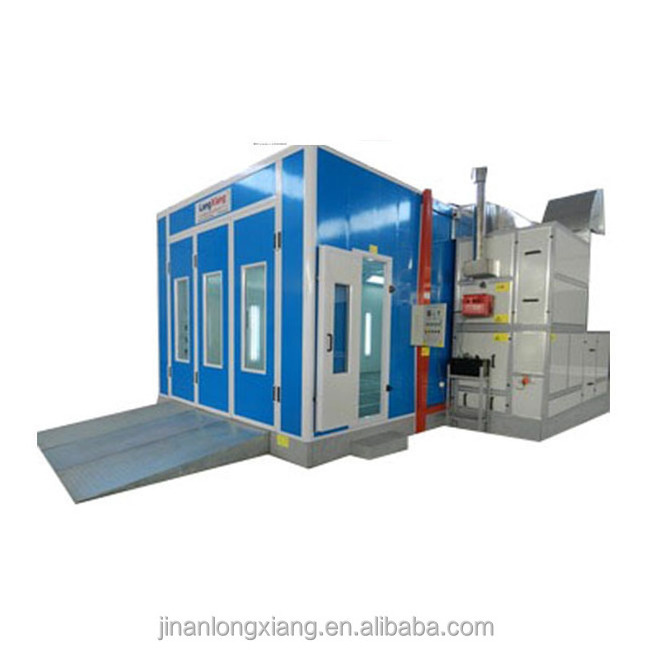

LX-D3
|
|
|
|
|
||||
|
Outside size
|
7000x5200x3400mm(LxWxH)
|
|
|
|
||||
|
Inside size
|
6900×3900×2650mm(L×W×H)
|
|
|
|
||||
|
Entrance door
|
3 folds，3000x2600 mm(W×H), bending steel door
|
|
|
|
||||
|
Emergency door
|
650*2000mm(W*H),equipped with handle lock
|
|
|
|
||||
|
Main System
|
|
|
|
|
||||
|
Cabin system
|
Wall panel
|
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel. |
|
|
||||
|
|
Basement
|
-Galvanized steel assemble,280mm high,with steel structure support,3 rows grills ,2 rows of diamond plates.
-2 ramps,external setting,620*2000mm(W*L)/pc |
|
|
||||
|
Ventilation system
|
Inlet fan
|
2*3kw double-intake centrifugal fans, air capacity:10000m³/h for each set
|
|
|
||||
|
|
Outlet fan
|
1*5.5kw double-intake centrifugal fans, air capacity:15000m³/h for each set
|
|
|
||||
|
|
Cabinet setting type
|
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .
-Cabinet for the fan*1unit ,air duct *2units, -Elbow:90°*1 unit |
|
|
||||
|
Heating system
|
|
10 Units 3KW infrared heating lamps
|
|
|
||||
|
|
|
Max temperature is 80 degree .
|
|
|
||||
|
|
|
Rate of temperature increase : 15-20min from 20~80 degree .
|
|
|
||||
|
Lighting system
|
Ceiling lights
|
8*4pcs*16w LED lighting
|
|
|
||||
|
|
Side lights
|
5*2pcs*16w LED lighting.
|
|
|
||||
|
Filtering system
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
|
|
||||
|
|
Ceiling filter
|
EU5 grade high efficient filter,filtering rate＞98%
|
|
|
||||
|
|
Floor filter
|
Multi-layer fiberglass filter,filtering rate＞70%
|
|
|
||||
|
Control system
|
Control panel
|
Intelligent control system
|
|
|
||||
|
|
Function
|
Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc
|
|
|
||||
|
Total power
|
42KW
|
|
|
|
||||
|
Voltage/
frequency
|
380V/220V ,50HZ/60HZ,3phase/1Phase
|
|
|
|
||||
