Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
HEB
-
Brand Name:
-
SHITAI
-
Model Number:
-
ST-02
-
Type:
-
PVC sound barrier panel
-
Product name:
-
Sound Barrier /Noise Barrier
-
Efficient:
-
27dB-45dB
-
Color:
-
Silvery/Green
-
Panel Style:
-
Louver Hole/ Micro Hole
-
Surface Treatment:
-
Galvanized+Powder Coating
-
Thcickness:
-
0.8-2.0
-
Material:
-
Hot-Dip Galvanized Panel,aluminium sheet
-
Inner material:
-
Glass Wool, rock wool
-
Package:
-
Pallet
-
Certificate:
-
ISO9001:2015, CE
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
HEB
-
Brand Name:
-
SHITAI
-
Model Number:
-
ST-02
-
Type:
-
PVC sound barrier panel
-
Product name:
-
Sound Barrier /Noise Barrier
-
Efficient:
-
27dB-45dB
-
Color:
-
Silvery/Green
-
Panel Style:
-
Louver Hole/ Micro Hole
-
Surface Treatment:
-
Galvanized+Powder Coating
-
Thcickness:
-
0.8-2.0
-
Material:
-
Hot-Dip Galvanized Panel,aluminium sheet
-
Inner material:
-
Glass Wool, rock wool
-
Package:
-
Pallet
-
Certificate:
-
ISO9001:2015, CE
Products Description
A noise barrier (also called a soundwall, sound berm, sound barrier, or acoustical barrier) is an Sound insulation and noise reductionexterior structure designed to protect inhabitants of sensitive land use areas from noise pollution.
Product Size
|
Parts list
|
Items
|
Product description
|
|
|

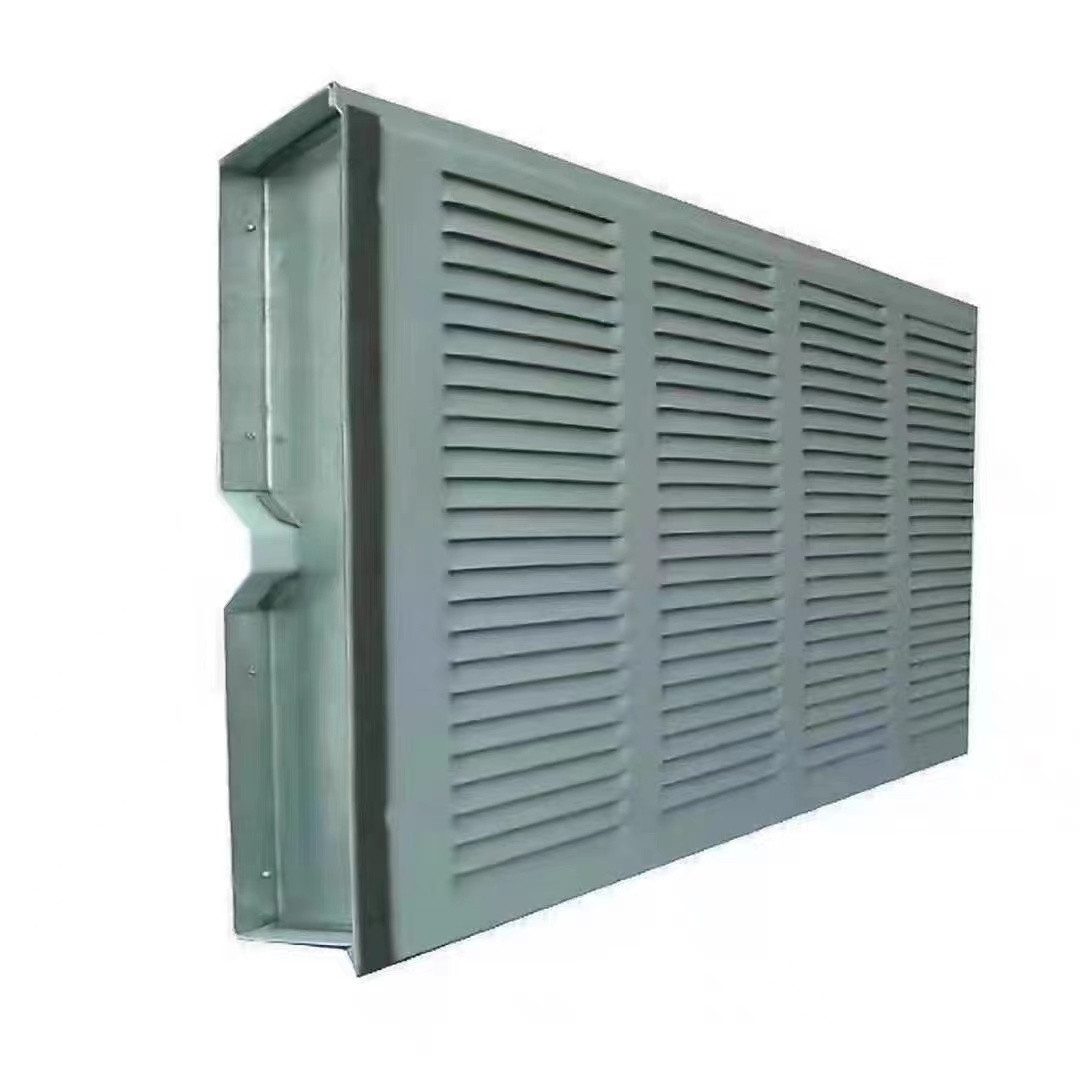

Noise barrier panel
|
Metal material
|
Galvanized sheet aluminum alloy sheet, color plate
|
|
|
|
Transparent material
|
Glass, PC board, acrylic board, etc.
|
|
|
|
Other material
|
High strength cement, cement wood chips, glass steel, etc.
|
|
|
|
Hole pattern
|
Louver holes; common hole spacing 20*137, 20*182
|
|
|
|
|
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2 holes 4 distances
|
|
|
|
Aperture ratio
|
Not less than 25%
|
|
|
|
Common size
|
500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc.
|
|
|
|
surface concave groove
|
Can be customized according to drawings or customer requirements
|
|
|
|
Surface treatment
|
Electrostatic powder coating, fluorocarbon spraying
|
|
|
|
Color
|
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
|
|
|
H shape post
|
Material
|
Q235B
|
|
|
|
Common size
|
100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc.
|
|
|
|
Common height
|
2m-6m up to12m
|
|
|
|
Flange
|
Size tolerance less than 2mm, thickness tolerance less than 0.4mm
|
|
|
|
|
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35
|
|
|
|
Surface treatment
|
Hot dip galvanizing-electrostatic powder coating, fluorocarbon spraying
|
|
|
|
Color
|
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
|
|
|
Noise absorb material
|
Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam aluminum fiber etc.
|
|
|
Composition structure
The noise barrier Screen body is mainly composed of shutter metal galvanized sheet, fiberglass mesh, and stone wool
Details Images
Application
Noise barrier is mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways, elevated composite roads, urban light rail and subways, and to control the impact of traffic noise on nearby urban areas. It can also be used for sound insulation and noise reduction in factories and other noise sources.
Packaging & Shipping
Composition structure
The noise barrier Screen body is mainly composed of shutter metal galvanized sheet, fiberglass mesh, and stone wool
Details Images
Application
Noise barrier is mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways, elevated composite roads, urban light rail and subways, and to control the impact of traffic noise on nearby urban areas. It can also be used for sound insulation and noise reduction in factories and other noise sources.
