Quick Details
-
power phase number:
-
1phase
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Taili
-
Model Number:
-
US-2
-
Warranty:
-
18 months
-
Type:
-
AC drive
-
Color:
-
Black, White
-
Communication:
-
Modbus 485
-
Certification:
-
CE REACH RoHS
Quick Details
-
Control Mode:
-
V/F control, simple vector control
-
Rated Power:
-
0.2kw,0.4kw,0.75kw,1.1kw
-
Nominal Voltage:
-
220VAC,110VAC
-
power phase number:
-
1phase
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Taili
-
Model Number:
-
US-2
-
Warranty:
-
18 months
-
Type:
-
AC drive
-
Color:
-
Black, White
-
Communication:
-
Modbus 485
-
Certification:
-
CE REACH RoHS
Variable Frequency Drive (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. VFD is also called Frequency Inverter , Variable Speed Drive , Adjustable Speed Drive , Adjustable Frequency Drive , AC Drive , AC Inverter , Micro Drive .
Taili Variable Frequency Drives(VFD) include US Series, UH Series, M Series, G Series, S18 Series, S20 Series, S30 Series, S36 Series are able to efficiently control motor speed, improve machine automation and save energy

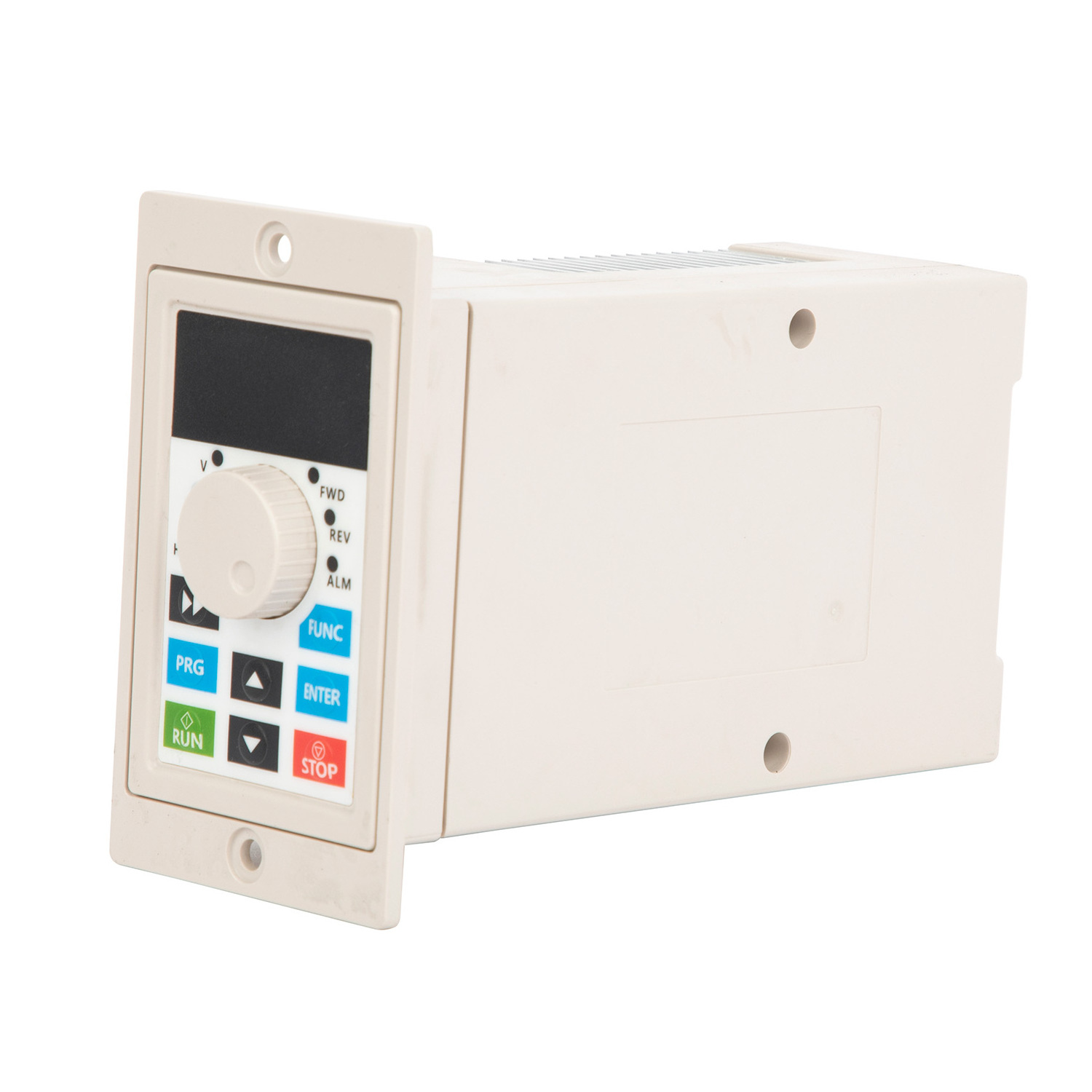

US-2
Series VFD
is convenient in speed regulatinon,good feel potentiometer knob,optimized structure,forced air cooling,strong electromagnetic compatibility,complete parameter function,instrument type installation,removable operation panel,low frequency high torque,optimized PWM,complete protection function,fast response
Technical characteristics:
Output frequency range:0-300Hz
Operation panel comes with speed regulating potentiometer
Built-in PID regulator for closed loop adjustment
Multifunctional open collector output
Support analoge input 0-5V
Can set arbitrarily V/F curve function, to meet special occasions needs
Use shift key can view the real time parameters
Adopt the new generation PIM module,the protection function is complete
Input frequency: 50Hz,60Hz optional
Output frequency: 0~300Hz
Input voltage: 1phase 200v~240v AC
Output voltag e:3phase 0~240v AC
Power available :0.2kw,0.4kw,0.75kw,1.1kw
US-2 Series model and technical specification
|
Model |
Power Capacity KVA |
Input Current A |
Output Current A |
Adapted Motor KW |
|
1 phase 200~240V AC ,50/60Hz |
||||
|
US-2-0-0.2G-1 |
3.0 |
2.3 |
1.6 |
0.2 |
|
US-2-0-0.4G-1 |
3.8 |
3.2 |
2.1 |
0.4 |
|
US-2-0-0.75G-1 |
5.6 |
4.0 |
3.7 |
0.75 |
|
US-2-0-1.1G-1 |
9.9 |
8.3 |
5.5 |
1.1 |
US-2
Series VFD Control Loop Wiring Diagram
Name of each part of US- 2 Series VFD:
US-2 Series VFD's Installation Size:
