Quick Details
-
Model Number:
-
WL -010
-
Power:
-
2.2kw,1.5kw other
-
Rated Loading Capacity:
-
200kg
-
Min. Lifting Height:
-
80mm
-
Max. Lifting Height:
-
12m
-
Table Size:
-
800*1000mm or according to customer's need
-
Overall Dimensions:
-
1200*800*1700mm---2500*1350*2300mm
-
Weight:
-
1200kg other or
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Choice
-
Application:
-
Wheelchair Lift,Disabled People
-
Type:
-
Inclined Type
-
Material:
-
High-duty Steel Structure
-
Platform:
-
Anti-skid Thick Plate
-
Voltage:
-
Local Voltage
-
Feature:
-
Easy Operation Safety Convenience
-
Usage:
-
Assembly Line
-
Certification:
-
CE ISO
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WL
-
Model Number:
-
WL -010
-
Power:
-
2.2kw,1.5kw other
-
Rated Loading Capacity:
-
200kg
-
Min. Lifting Height:
-
80mm
-
Max. Lifting Height:
-
12m
-
Table Size:
-
800*1000mm or according to customer's need
-
Overall Dimensions:
-
1200*800*1700mm---2500*1350*2300mm
-
Weight:
-
1200kg other or
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Choice
-
Application:
-
Wheelchair Lift,Disabled People
-
Type:
-
Inclined Type
-
Material:
-
High-duty Steel Structure
-
Platform:
-
Anti-skid Thick Plate
-
Voltage:
-
Local Voltage
-
Feature:
-
Easy Operation Safety Convenience
-
Usage:
-
Assembly Line
-
Certification:
-
CE ISO

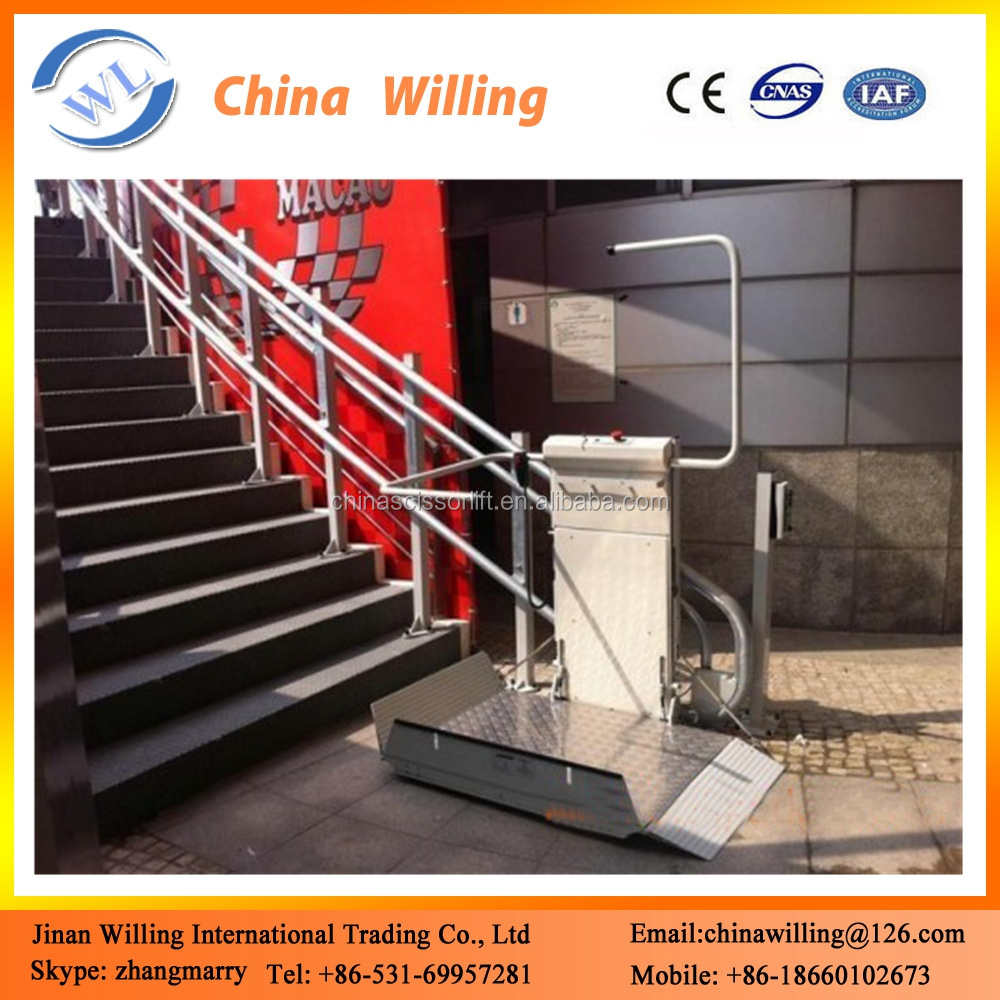

wheelchair stairway platform/removable stair handrail wheelchair lift
Inclined stair lift platform, installed in the corridor system uses a traction motor to move up and down along the track and carrying passengers safety device accessibility. It consists of the drive system, the guide rail, the rope wheel train, the mobile platform components. Used in the construction corridor system, wheelchair or climbing stairs difficult to climb stairs personnel and special equipment. Mainly by the main drive system, the auxiliary drive system, the main control system and safety system.
|
Model |
Travel Height(m) |
Load Capacity(kg) |
Platform size(mm) |
Self weight(kg) |
|
WL -010 |
1.0 |
260 |
800*1000 |
200 |
|
WL -015 |
1.5 |
250 |
||
|
WL -020 |
2.0 |
320 |
||
|
WL -025 |
2.5 |
400 |
||
|
WL -030 |
3.0 |
450 |
||
|
WL -035 |
3.5 |
520 |
||
|
WL -040 |
4.0 |
600 |
||
|
WL -050 |
5.0 |
720 |
||
|
WL -060 |
6.0 |
850 |
1. Without constant pressure direction button switch lock,DC 24 V,Equipped with urgent stop switch
2. Independent driving system and track into a whole,Guide and pillar materials are stainless steel
3. Durable electrostatic coating and paint, the sea of gray paint, stainless steel polishing, and standard color can choose
4. Pedestrian safety warning lights is installed on both ends of before and after the platform floor, amber light bulb
5. Over speeding safety device is installed at the bottom of the guide contains mechanical speed sensor and brake, electronic drive cut-out protector
6. The reaction at the bottom of the platform and the slope plate can detect obstacles, if encounter obstacles even stop running platform
7. Emergency situations can be manually drop platform and folding platform
8. When abnormal the platform can't use, safety protection does not reach the designated position can not run
|
Packing |
Plywood case or according to your requirments |
| Shipping | By sea ,from QIngdao Port |
