Conductor:
Stranded tinned copper conductor per DIN VDE 0295 and IEC 60228 Class 5
Insulation:
Electron beam cross-linked, halogen free and flame retardant compound
Sheath:
Electron beam cross-linked, halogen free and flame retardant compound
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
XLPE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZADP or OEM
-
Model Number:
-
solar cable
-
Product name:
-
solar dc cable
-
Working temperature::
-
-40℃ to + 120℃
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Solar Power Station/Solar power System
-
Conductor Material:
-
Tinned Copper
-
Jacket:
-
XLPE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZADP or OEM
-
Model Number:
-
solar cable
-
Product name:
-
solar dc cable
-
Working temperature::
-
-40℃ to + 120℃
Product Description

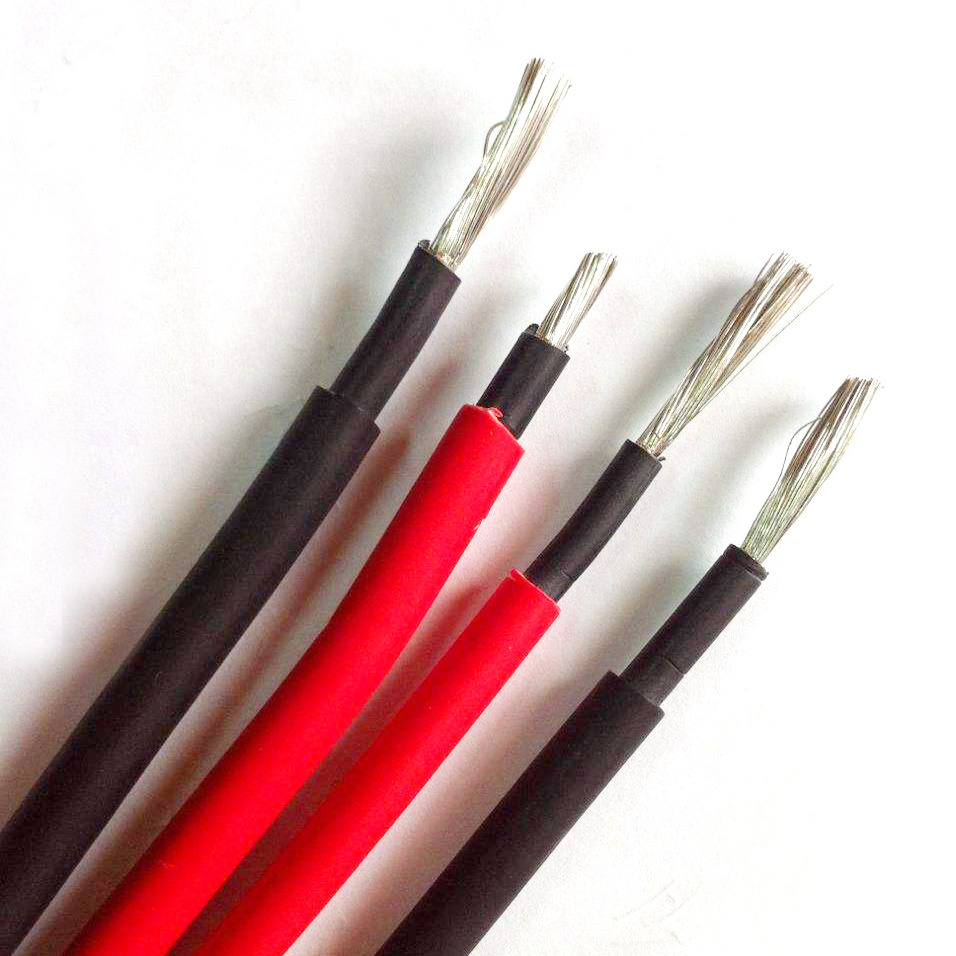

Solar Cable
|
Single Core PV1-F Solar Cable
|
|
|
|
|
|
|
|
|||||
|
(mm2)
|
Conductor Construction
(n/m)
|
Conductor
OD
(mm)
|
CableOuter
(mm)
|
Resistance Max.
(Ω/km)
|
Current
Carring Capacity
(A)
|
Insulation
Min.Wall
Thickness
(mm)
|
Sheath
Min.Wall
Thickness
(mm)
|
|||||
|
1x1.5mm2 solar cable
|
30/0.25
|
1.58
|
4.90
|
13.30
|
30
|
0.67
|
0.73
|
|||||
|
1x2.5mm2 pv cable
|
50/0.25
|
2.02
|
5.45
|
7.89
|
41
|
0.67
|
0.73
|
|||||
|
1x4mm2 solar pv cable
|
56/0.3
|
2.60
|
6.10
|
4.75
|
50
|
0.67
|
0.73
|
|||||
|
1x6mm2 pv solar cable
|
84/0.3
|
3.42
|
7.20
|
3.39
|
70
|
0.8
|
0.80
|
|||||
|
1x10mm2 solar panel cables
|
142/0.3
|
4.56
|
9.00
|
1.95
|
98
|
0.9
|
0.90
|
|||||
|
1x16mm2 solar system wiring
|
228/0.3
|
5.60
|
10.20
|
1.24
|
132
|
1.00
|
0.90
|
|||||
|
1x25mm2 photovoltaic cable
|
361/0.3
|
6.95
|
12.00
|
0.795
|
176
|
1.19
|
0.92
|
|||||
|
1x35mm2 photovoltaic cable
|
276/0.40
|
8.74
|
13.8
|
|
218
|
1.20
|
1.00
|
|||||
|
Twin Core PV1-F Solar Cable
|
|
|
|
|
|
|||||
|
Cross section
mm2 |
Conductor Construction
(n/mm) |
Conductor
OD (mm) |
Cable Outer
(mm) |
Resistance Max.
(Ω/km) |
Current Carring Capacity
(A) |
|||||
|
2 x 1.5mm2 twin core solar cable
|
30/0.25
|
1.58
|
8.3 ± 0.2
|
13.30
|
30
|
|||||
|
2 x 2.5mm2 two core solar pv cable
|
50/0.25
|
2.02
|
9.2 ± 0.2
|
7.98
|
41
|
|||||
|
2 x 4mm2 dual core solar cable
|
56/0.3
|
2.60
|
12.0 ± 0.2
|
4.75
|
50
|
|||||
|
2 x 6mm2 pv cable wire
|
84/0.3
|
3.42
|
13.5 ± 0.2
|
3.39
|
70
|
|||||
|
2 x 10mm2 solar cable wire
|
142/0.3
|
4.56
|
17.6 ± 0.2
|
1.95
|
98
|
|||||
|
2 x 16mm2 solar wire
|
228/0.3
|
5.60
|
19.8 ± 0.2
|
1.24
|
132
|
|||||
