Quick Details
-
Voltage:
-
220V/380V/415V/440V
-
Power:
-
3 KW
-
Dimension(L*W*H):
-
1380x510x1615mm
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
No overseas service provided
-
Falling part weight:
-
25KG
-
Height of working area:
-
240mm
-
Hit number:
-
250min-1
-
Size of top and botton die:
-
100x50mm
-
Max.square steel can be forged:
-
40x40
-
Max.round steel can be forged:
-
45mm
-
Speeds of motor:
-
1440 r.p.m
-
Total weight:
-
728KG
-
Certification:
-
CE
-
Weight:
-
728kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HELI
-
Machine Type:
-
Power Forging Press
-
Voltage:
-
220V/380V/415V/440V
-
Power:
-
3 KW
-
Dimension(L*W*H):
-
1380x510x1615mm
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
No overseas service provided
-
Falling part weight:
-
25KG
-
Height of working area:
-
240mm
-
Hit number:
-
250min-1
-
Size of top and botton die:
-
100x50mm
-
Max.square steel can be forged:
-
40x40
-
Max.round steel can be forged:
-
45mm
-
Speeds of motor:
-
1440 r.p.m
-
Total weight:
-
728KG
-
Certification:
-
CE
-
Weight:
-
728kg

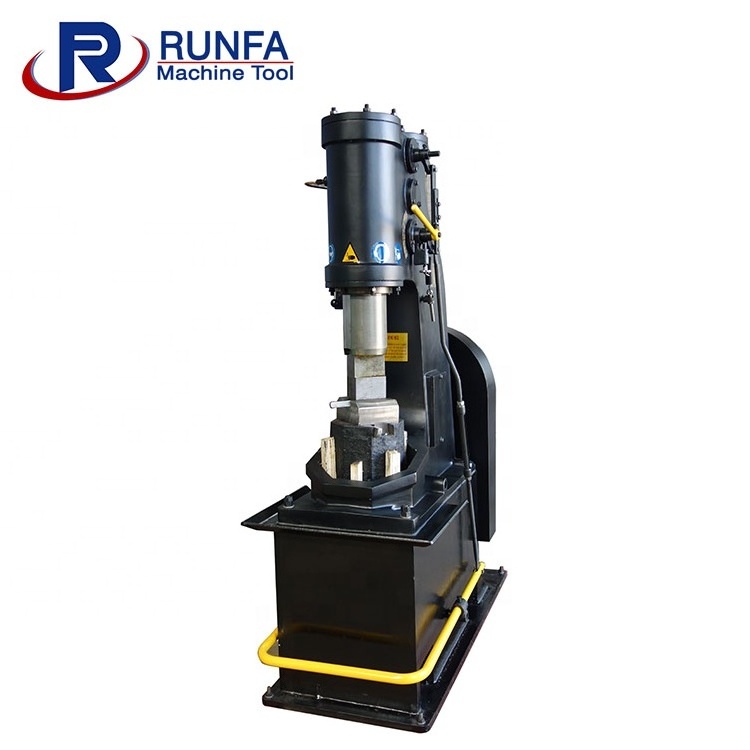

Air hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting, it is also used for forge in bolster dies.
For C41 Series DB OR FB type,you only need to connect power can use them.Because all parts assemble on base plate instead of making foundation for them.
So it is easy and convenient for any newer to use and operate it.
|
SPECIFICATION |
UNIT |
C41-25kg WITH BASE PLATE |
|
Max. hit energy |
kj |
0.27 |
|
Height of working area |
mm |
240 |
|
Hit number |
min-1 |
250 |
|
Dimension of top and bottom die surface(LxW) |
mm |
100 x 50 |
|
Max. square steel can be forged |
mm |
40 x 40 |
|
Max. round steel can be forged(Diameter) |
mm |
45 |
|
Motor power |
kw |
1 phase 3/220V 3 phase 3/380V |
|
Speeds of motor |
r.p.m |
1440 |
|
Base plate weight |
kg |
- |
|
Total weight |
kg |
960 |
|
Overall dimensions(L*W*H) |
mm |
1380X510X1715 |
