Quick Details
-
Brand Name:
-
TUOWEI,TOWEI
-
Model Number:
-
VMN-15-03-A-27
-
Max. Current:
-
16A
-
Operating Temperature:
-
125℃
-
Protection Level:
-
IP60
-
Product Name:
-
micro switch with long lever
-
Function:
-
ON-NC
-
Suitable:
-
stand fan, Juicer,Blender, etc.
-
Insulation Resistance:
-
100MΩ Min
-
Contact Resistance:
-
50mΩ Max
-
Certification:
-
CQC, TUV, CB, CUL, ROHS, TUV.UL.CQC
-
Service:
-
OEM/ODM
-
Sample:
-
Free samples
-
Lead time:
-
10-20 days
-
MOQ:
-
1 pc
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TUOWEI,TOWEI
-
Model Number:
-
VMN-15-03-A-27
-
Max. Current:
-
16A
-
Operating Temperature:
-
125℃
-
Protection Level:
-
IP60
-
Product Name:
-
micro switch with long lever
-
Function:
-
ON-NC
-
Suitable:
-
stand fan, Juicer,Blender, etc.
-
Insulation Resistance:
-
100MΩ Min
-
Contact Resistance:
-
50mΩ Max
-
Certification:
-
CQC, TUV, CB, CUL, ROHS, TUV.UL.CQC
-
Service:
-
OEM/ODM
-
Sample:
-
Free samples
-
Lead time:
-
10-20 days
-
MOQ:
-
1 pc

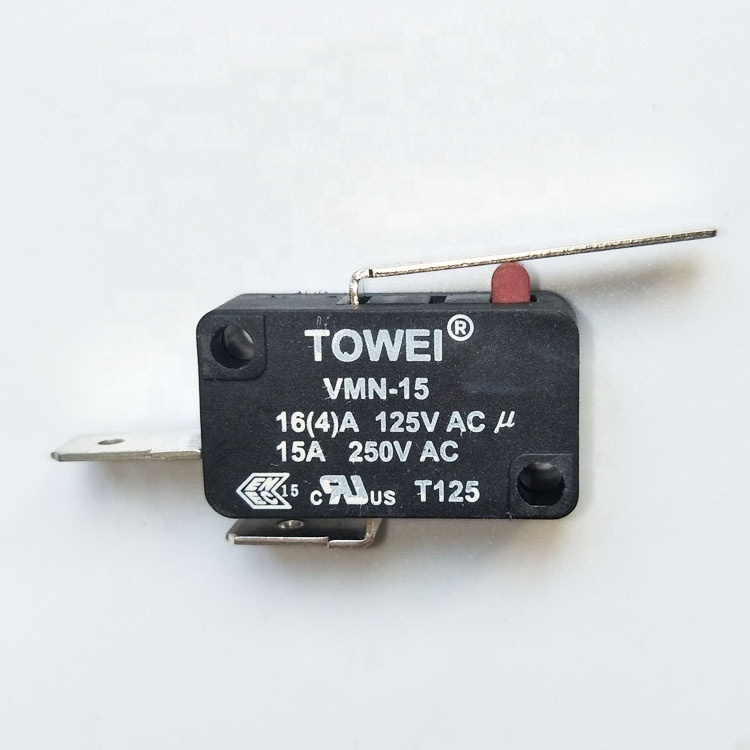

16(4)A ~120V.A.C 15A~250V.A.C. electric torch push button zippy micro switches with lever I tem No.:VMN-15-03-A-27
|
Technical Parameter |
|
|
Electrical Rating |
15A ~125V.A.C. /250V.A.C. |
|
HZ |
60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K cycles |
| Operation force | 200+-50GF |
| Withstand voltage | 1500 V.A.C |
| SPCOA | 24-18AWG UL1015 |
|
Material: |
|
| Housing: PA66 Grade: SABIC | |
| Terminals: Brass Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Contract: Copper | |
| Base: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
|
All kinds of electric Wall Fan, Juicer, Mixer, Blender, coffee machine, vacuum humidifier, cleaner,massage equipment,air purifier,lamps,toys,massager and so on..
|
|
