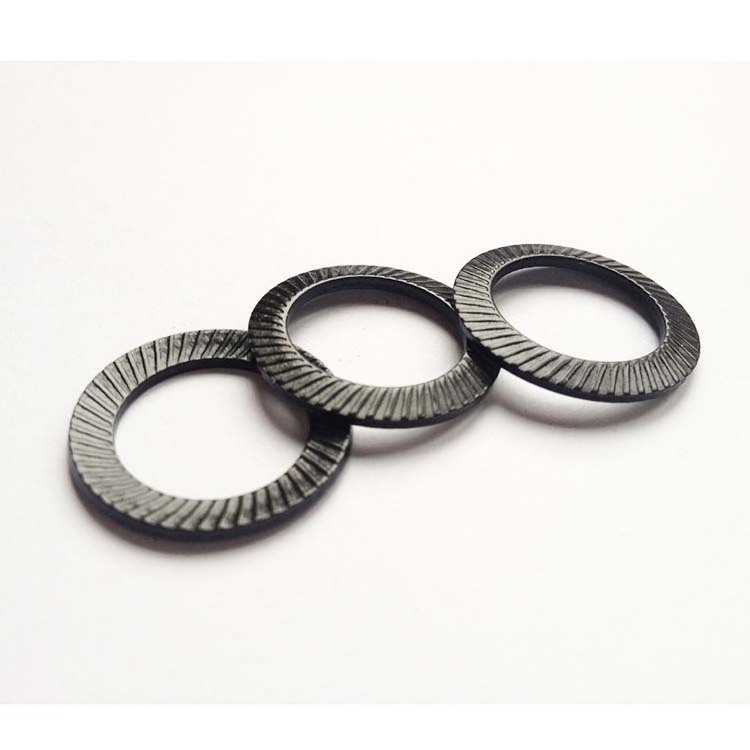

M1.6-M36 Serrated Knurled Safety Lock Washers DIN9250

M1.6-M36 Serrated Knurled Safety Lock Washers DIN9250

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.07

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

ID:: 8-60MM

Thickness:: 2.37-17mm

Product name:: M1.6-M36 Serrated Knurled Safety Lock Washers DIN9250

Certificate:: ISO9001:2008

Type:: Safety washer

Color:: Plain

Size:: As per custom

Application:: Locking

Quick Details

Place of Origin:: Guangdong, China

Material:: Stainless Steel 304

Outer Diameter:: 12.5-92MM

ID:: 8-60MM

Thickness:: 2.37-17mm

Product name:: M1.6-M36 Serrated Knurled Safety Lock Washers DIN9250

Certificate:: ISO9001:2008

Type:: Safety washer

Color:: Plain

Size:: As per custom

Application:: Locking

M1.6-M36 Serrated Knurled Safety Lock Washers DIN9250

Product Description

• PRODUCT DESCRIPTION

Standard

ISO, JIS, GB, ANSI, BSW, DIN or non standard as customize

Material

1.Stainless Steel: SS201, SS303, SS304, SS316, SS410, SS420
2.Steel:C45(K1045), C46(K1046),C20
3.Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
4.Bronze: C51000, C52100, C54400, etc
5.Iron: 1213, 12L14,1215
6.Aluminum/ Aluminum Alloy: Al6061, Al6063 etc
7.Carbon steel: C1006,C1010,C1018,C1022,C1035K,C1045, C435#, 40CrMo, 42CrMo
8.Alloy steel: SCM435,10B21
9.Titanium and Titanium Alloy: TAD, TA1-TA8, TB2, TC1-TC10

Grade

4.8,6.8,8.8,12.9,etc

Size

2*3,3*4,4*5,5*6,6*7,8*9,9*10,10*11,12*13

Specifications

Various shape size according to client’s requirement

Thread

unc,unf,metric thread

Finish

Plain, Zinc Plated(Clear/Blue/Yellow/Black), black oxide, H.D.G, DAC,GOEMET, as custom need

Payment term

T/T 30 % deposit, 70% balance payment before shipment

Package

solid cardboard box pack or kit packed

Type S					Type VS
Size	d1	d2	s	h	Size	d1	d2	s	h
M2	2.2	4	0.35	0.6	M5	5.3	9	1	1.3
M3	3.2	5.5	0.45	0.9	M6	6.4	10	1	1.4
M4	4.3	7	0.5	1	M8	8.4	13	1.2	1.7
M5	5.3	9	0.6	1.1	M10	10.5	16	1.5	2
M6	6.4	10	0.7	1.2	M12	13	18	1.5	2.1
M8	8.4	13	0.8	1.4	M14	15	22	1.5	2.2
M10	10.5	16	1	1.6	M16	17	24	2	2.6
M12	13	18	1.1	1.7	M18	19	27	2	2.7
M14	15	22	1.2	2	M20	21	30	2	2.8
M16	17	24	1.3	2.1	M22	23	33	2	3
M18	19	27	1.5	2.3	M24	25.6	36	2.5	3.4
M20	21	30	1.5	2.4	M27	28.6	39	2.5	3.5
M22	23	33	1.5	2.5	M30	31.6	45	2.5	3.8
M24	25.6	36	1.8	2.7	M33	34.6	50	3	4.5
M27	28.6	39	2	2.9	M36	38	54	3	4.5
M30	31.6	45	2	3.2
M33	34.8	50	2.5	4
M36	38	54	2.5	4.2
