Quick Details
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
0.15 T
-
Power (kW):
-
25
-
Technology:
-
IGBT
-
Suitable Metal:
-
Gold, Silver, Copper, Brass, Bronze, and their alloys
-
Duty cycle:
-
100%
-
Melting time:
-
3-5min
-
Max Temperature:
-
1600-1800℃
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE Certificate
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
COOLDO
-
Voltage:
-
Three-phase 340V ~420V 50/60Hz, Three-phase 340V ~420V 50/60Hz
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
0.15 T
-
Power (kW):
-
25
-
Technology:
-
IGBT
-
Suitable Metal:
-
Gold, Silver, Copper, Brass, Bronze, and their alloys
-
Duty cycle:
-
100%
-
Melting time:
-
3-5min
-
Max Temperature:
-
1600-1800℃
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE Certificate
Product Description

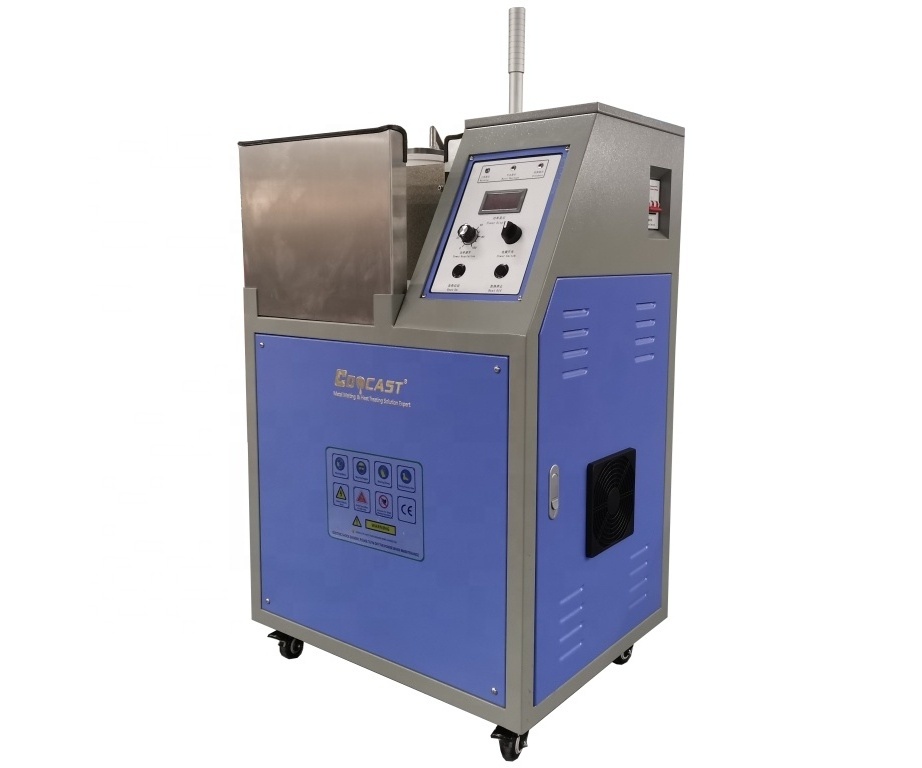

Speedy Melting 5KG 10KG 15KG Manual Tilting System Induction Gold Melting Furnace For Sale
CDOCAST manual tilting furnace is a small capacity tilting furnace for smelting gold, silver and copper, with capacity ranging from 1kg to 15kg.Due to the small amount of smelting, the manual casting design makes the operation easier and convenient.This machine is integrated design, multi-input mechanism and power parts are also integrated design, which can greatly reduce the size of the machine, which is a very good choice for some customers who do not have large space for running the machine. These inclined furnaces can smelt gold, silver, and platinum, so graphite crucible and quartz crucible are usually used. We use pure graphite crucible to melt gold, silver, copper, and quartz crucible to melt platinum and palladium. Gold smelters can quickly reach 1800 degrees in 3-5 minutes, especially when melting platinum, which can be melted in 2 minutes.
Parameter
|
Model number
|
CDO-MT26
|
CDO-MT27
|
CDO-MT28
|
CDO-MT29
|
|||
|
Applicable metal
|
Gold, Silver, Copper, Brass, Bronze, and their alloys
|
|
|
|
|||
|
Voltage
|
3p, 380V, 50/60Hz
|
|
|
|
|||
|
Power
|
15 kw (adjustable)
|
20 kw (adjustable)
|
25 kw (adjustable)
|
30 kw (adjustable)
|
|||
|
Weight
|
72 kg
|
75 kg
|
130 kg
|
130 kg
|
|||
|
Max capacity
|
Gold: 4 kg Silver:2kg
|
Gold: 6 kg Silver:3kg
|
Gold: 8 kg Silver:5-4kg
|
Gold: 10 kg Silver:5kg
|
|||
|
Melting time
|
2-5 min
|
3-6 min
|
5-10 min
|
6-12 min
|
|||
|
Dimension（LWH）
|
620*500*980mm
|
620*500*980mm
|
730*630*980mm
|
730*630*980mm
|
|||
|
Max temperature
|
1800℃
|
1800℃
|
1800℃
|
1800℃
|
|||
|
Temperature control k-type
|
Optional
|
Optional
|
Optional
|
Optional
|
|||
|
Water pump
|
Equipped
|
Equipped
|
Equipped
|
Equipped
|
|||
|
Crucible Size
|
Graphite crucible: Φ85*Φ60*136.5mm
|
Graphite crucible: Φ105*Φ70*155mm
|
Graphite crucible: Φ115*Φ78*183mm
|
Graphite crucible: Φ125*Φ90*183mm
|
|||
Application
Feature:
1: CDOCAST gold smelting machine has the ability of electromagnetic stirring, which can make the metal melting more homogeneous and evenly.
2: Comes with the Ability to work continuously for 24 hours, greatly increasing productivity.
3: The design of the pouring system makes it convenient for workers to operate, and can pour the molten liquid into the mold more precisely which can prevent the crucible from spilling the molten metal liquid n caused by the error operation of the old smelting machine is Configured with a variety of safety alarm system, if the occurrence of overcurrent, overpressure, water shortage and other conditions, the machine will stop running automaticlly , which can effectively protect the machine!
5: Thermocouple or infrared thermometer temperature control can be installed as optional part to monitor the temperature of the entire melting process.
6: CDOCAST Gold Smelting Furnace comes with Built-in water pump design, so you just need to connect the water and electricity which can run the furnace directly.
Related Products
Please click the pictures to see more products!
Integrated Type Gold Melting Furnace Medium Frequency Melting Furnace Gold Bullion Casting Machine
Packing & Delivery
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Factory
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
