Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FOCUS
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
300 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Screw Conveyor
-
Usage:
-
Grain Vertical Conveying
-
Frame Material:
-
Stainless Steel Finish
-
Motor:
-
Adjust Speed Motor
-
Feature:
-
Simple Operation
-
dicharge height:
-
1-4 m
-
Installation:
-
Technical Guidance
-
After Warranty Service:
-
1 year
Quick Details
-
Power:
-
0.8KW-2.2KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FOCUS
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
300 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Screw Conveyor
-
Usage:
-
Grain Vertical Conveying
-
Frame Material:
-
Stainless Steel Finish
-
Motor:
-
Adjust Speed Motor
-
Feature:
-
Simple Operation
-
dicharge height:
-
1-4 m
-
Installation:
-
Technical Guidance
-
After Warranty Service:
-
1 year

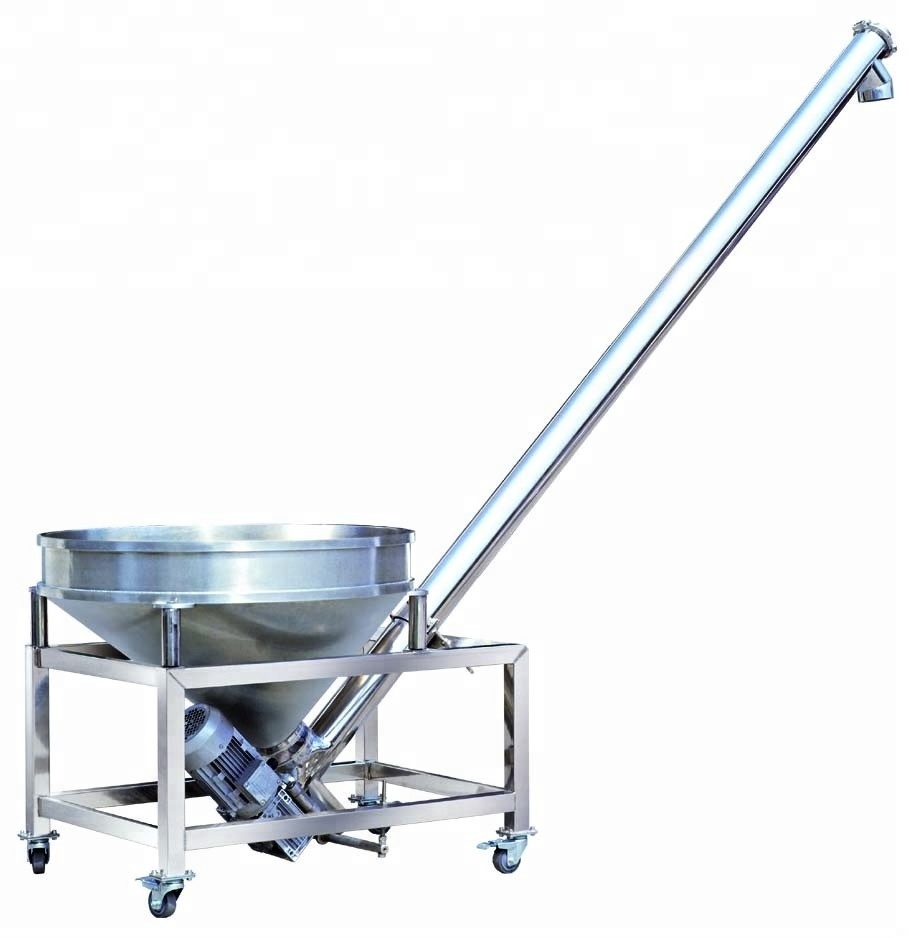

Function of Standard Screw Conveyor
- Screw conveyor is used to transport powder or small free flow products from low position to high place. such as milk powder, salts,seeds, flour etc.
- Worked with packaging machine for feeding variety powdery products.
- Two motors used for screw feeding and hopper vibrating, separately control.
- Products storage hopper can be separated from the screw and tube easily.
- Flexible Reversible running screw, fast dismountable screw and discharge gate insure easy cleaning.
|
||||
| Model | FM-3G3 | FM-3G5 | FM-3G7 | FM-3G12 |
| Capacity | 3CBM/H | 5CBM/H | 7CBM/H | 12CBM/H |
| Power supply | 0.81kw | 1.56kw | 1.56kw | 2.2kw |
| Pipe Dia. | φ114mm | φ141mm | φ159mm | φ219mm |
| Hopper volume | 200L | 200L | 200L | 200L |
| Voltage | 3phase 380V 50-60Hz | |||
| Angle of incline | 45 degree for standard, it can customeried for 30 or 60 degrees. | |||
| Discharge Hight | 1800mm for standard, others are available, the max height is 6M | |||
| Weight | 130KG | 180KG | 230KG | 270KG |
| Hopper type |
Rectangle or round |
|||
Screw Conveyor Full Weld Blade
Hopper With Rabbler
Screw Conveyor With Packaging System
Our Services
1. Customized Machines are Available
2. Provide Installation instruction and after-service tracing, resolving the clients' concerns
3. One year guarantee, except for some spare parts
4. Flexible payment terms and trade terms
5. Available factory visiting
6. Other related machines are provided too, such as screw weigher, packaging machine and belt conveyor, etc.
Our advantage
1. Specialize in packaging machinery and food conveying equipment, Focus machinery co., LTD
., is an integrated company with research and development, production, sales and service departments.
2. 8 Years of experience in conveyors and packaging machinery.
3. With research and development team, we welcome OEM and ODM orders.
4. Strict QC process to make sure each product with good quality.
5. Various equipments to meet your need.
6. Unique business philosophy brings reliable quality and considerate service.
More Products to Choose
Cerfifications of Product
About us
1. For providing exact quote, below information is needed.
What to convey?
What is the packing volume and net weight?
2. What is the delivery time?
About 25-35days for standard machines.
3. What about installation and commissioning?
Our price does not include the installation and commissioning charge. The buyer should pay for the round-ticket, visa charge, food and accommodation if installation is need.
4. Any training or after sale service?
Training of machine operating and machine maintaining in our factory is free.
Technical help via internet is free.
