Quick Details
-
Model Number:
-
BTV-34
-
Brand Name:
-
Jiasheng
-
Product Name:
-
Fuel Tanker Tank Trailer Cut Off Emergency Shut Off Bottom Valve
-
Material:
-
Aluminum Alloy or Stainless Steel
-
size:
-
3", 4"
-
Open mode:
-
Pneumatic
-
Temperature:
-
20~70 degree
-
TopSale:
-
Shut Off Valve
-
High quality:
-
Emergency Shut Off Valve
-
Keywords:
-
Fuel Shut Off Bottom
-
Certification:
-
ISO
Quick Details
-
Port Size:
-
3", 4"
-
Warranty:
-
1year
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
BTV-34
-
Brand Name:
-
Jiasheng
-
Product Name:
-
Fuel Tanker Tank Trailer Cut Off Emergency Shut Off Bottom Valve
-
Material:
-
Aluminum Alloy or Stainless Steel
-
size:
-
3", 4"
-
Open mode:
-
Pneumatic
-
Temperature:
-
20~70 degree
-
TopSale:
-
Shut Off Valve
-
High quality:
-
Emergency Shut Off Valve
-
Keywords:
-
Fuel Shut Off Bottom
-
Certification:
-
ISO
Product Description

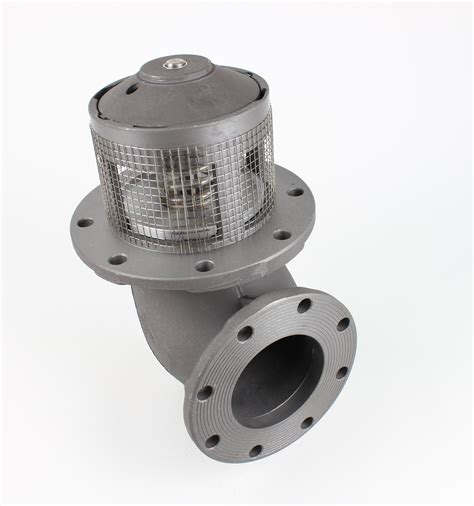

3" 4" Fuel Tanker Tank Trailer Cut Off Emergency Shut Off Bottom Valve
It install on the bottom of the tanker with the disc sealed inside it.Valve body with self-cut groove.When in the event of
accidental damage,the external housing will break away from the self-cut groove,keeping the connection to the valve tank
mounting flange,leaving the bottom valve sealing mechanism within the tank compartment intact,efficiently protecting the tanker from leakage,ensuring the safety of transportation.It is suitable for water,diesel,petrol and other light fuel.
Function & Feature
1.External handle structure with guide bushing, it can directly
fix inhaul cable,
to ensure open & close smoothly
2.The fusible element install on the handle holder, control open
/closed by handle holder
3.Aluminum surface deal with oxidation treatment
Technical Data
| Nominal diameter | 3"/4'' |
| Nominal Pressure | 0.6Mpa |
| Material | Aluminum Alloy |
| Installation | Flanged |
| Open method: | Mechanical |
| Temperature range | -30~+70°C |
2.Pneumatic Bottom Valve 3/4inch
Feature & Benefit
* Special Surface Treatment
The whole valve body is passed a special surface process to improve t anti-corrosion.
* Hydrodynamic Body
Design and high lift popet minimizes pressure drop to give maximum flow rate.
* External Shear Groove
Meets the standard requirements to limit product spillage in the event of an accident.
* Manual Opening Device
When need to emergency discharging, the pneumatic control is useless, it can be opened Air
* Special Surface Treatment
The whole valve body is passed a special surface process to improve t anti-corrosion.
* Hydrodynamic Body
Design and high lift popet minimizes pressure drop to give maximum flow rate.
* External Shear Groove
Meets the standard requirements to limit product spillage in the event of an accident.
* Manual Opening Device
When need to emergency discharging, the pneumatic control is useless, it can be opened Air
Technical Data
| Nominal diameter | 3"/4'' |
| Nominal Pressure | 0.6Mpa |
| Material | Aluminum Alloy |
| Installation | Round/Square Flanged |
| Open method: | Pneumatic by air |
| Temperature range | -30~+70°C |
3 :T Type 3 Way Bottom Valve
1. Installment
1.1 Bottom valve and pipeline connection flange can provide round flange and the method for customers to choose
1.2 Bottom valve before installation, please clean the inside and piping, ensure that the inside and no particulate matter in the pipeline, so as not to damage the valve seal
Using
When shipment thickens oil(for example Crude oil), can remove the valve on the mesh, so as not to affect the flow.
Maintain
Not regularly check the intake pipe or cable damage, to avoid airway problems that cannot be normally open valve
1.1 Bottom valve and pipeline connection flange can provide round flange and the method for customers to choose
1.2 Bottom valve before installation, please clean the inside and piping, ensure that the inside and no particulate matter in the pipeline, so as not to damage the valve seal
Using
When shipment thickens oil(for example Crude oil), can remove the valve on the mesh, so as not to affect the flow.
Maintain
Not regularly check the intake pipe or cable damage, to avoid airway problems that cannot be normally open valve
Application
Stock Photos
Packaging & Shipping
1. Packaging Details: 4PCS/ CARTON
2. Delivery Detail: The product should be stored and dry inside storeroom without corrosive gas, transportation and loading and unloading to should take put down gently.
