Power Frequency Oil-injected Screw Compressor 15-20HP/11KW/15KW Intake Valve AIV-40 air inlet valve

FOB Reference Price: Get Latest Price

≥3 Pieces

US $15

≥10 Pieces

US $14.5

Free Inquiry

Customized Request

Quick Details

Power Frequency Oil-injected Screw Compressor 15-20HP/11KW/15KW Intake Valve AIV-40 air inlet valve

Our company can off you full range screw air compressors spare parts, and spare parts for different air compressor brand.

Coolers for screw air compressor:

air cooled heat exchanger

after cooler:

Aftercoolers are heat exchangers for cooling the discharge from an air compressor. They use either air or water and are an effective means of removing moisture from compressed air.
Aftercoolers reduce the amount of water vapor in a compressed air system by condensing the water vapor into liquid form. Aftercoolers combined with a separator are an excellent way to reduce moisture in a compressed air system. In a distribution or process manufacturing system, liquid water causes significant damage to equipment.
An aftercooler is necessary to ensure the proper functionality of pneumatic or air handling devices that are a part of process manufacturing systems. Aftercoolers can use either air-cooled or water-cooled mechanisms.

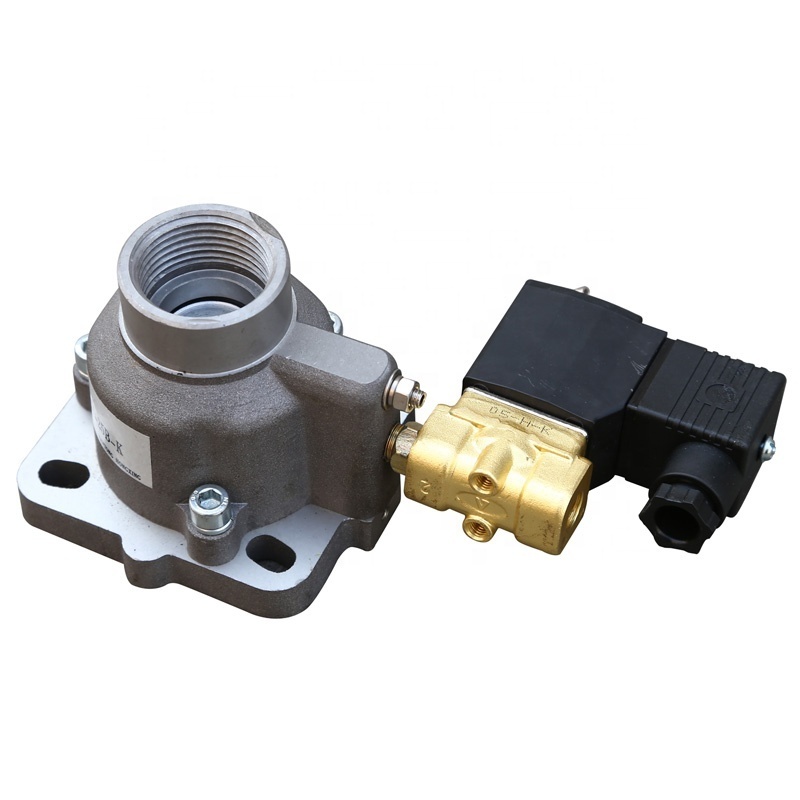

Inlet valve for screw air compressor:

Application: Power Frequency Oil-injected Screw Compressor
It's N/O type and will close in response to a control pressure signal.
Special structure design solves the problem of high start load.
At shutdown, intake valve has check function to prevent oil injection through the compressor.
Intake valve can eliminate cavitation noise from air-end by air admission when unloading.
Integration of discharge valve, air admission valve, solenoid valve and proportional valve into an intake valve makes it install easily and quickly.

Technic Data:

Model AIV-25 AIV-40 AIV-50 AIV-65 AIV-85 AIV-100 AIV-120
Nominal Diameter(mm) 25 40 50 65 88 100 120
Working Pressure(bar) 1~15
Working Medium Temperature(℃) -20~120
Working Environment Temperature(℃) -20~60
Power of Solenoid Valve AC220V 50Hz(Power can be alternative.)
Certificate of Solenoid Valve CE(Certificate can be alternative.)
Inlet Direction Vertical Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal Vertical
