Quick Details
-
Material:
-
Zinc
-
Suitable for:
-
glass door, wooden door
-
Weight:
-
2.0kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
magnetic locks:
-
600lbs/280kgs
-
Input voltage:
-
DC12V or DC24V
-
Material:
-
Zinc
-
Suitable for:
-
glass door, wooden door
-
Weight:
-
2.0kg
Single Door 500kg Magnetic Lock Built In Led And Door Sensor And Time Delay For Electro Magnetic Lock
1.Product Specifications
|
Lock size |
265Lx72Wx40H(mm) |
|
Plate |
185Lx60Wx13H(mm) |
|
Holding Force |
500kg(1200Lbs) |
|
Voltage |
DC12V or DC24V (adjustable) |
|
Current Draw |
12V/420mA 24V/210mA |
|
Signal Output |
Dry Contact, Max Rating of Contact Current 3A |
|
Surface Temp |
≤20°C |
|
Operating Temp |
-10°C ~ 55°C (14°F~131°F) |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Finishes for Shell |
Anodized aluminum surface texture processing |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Weight |
4.5kg |
|
Standard Packing |
4pcs |

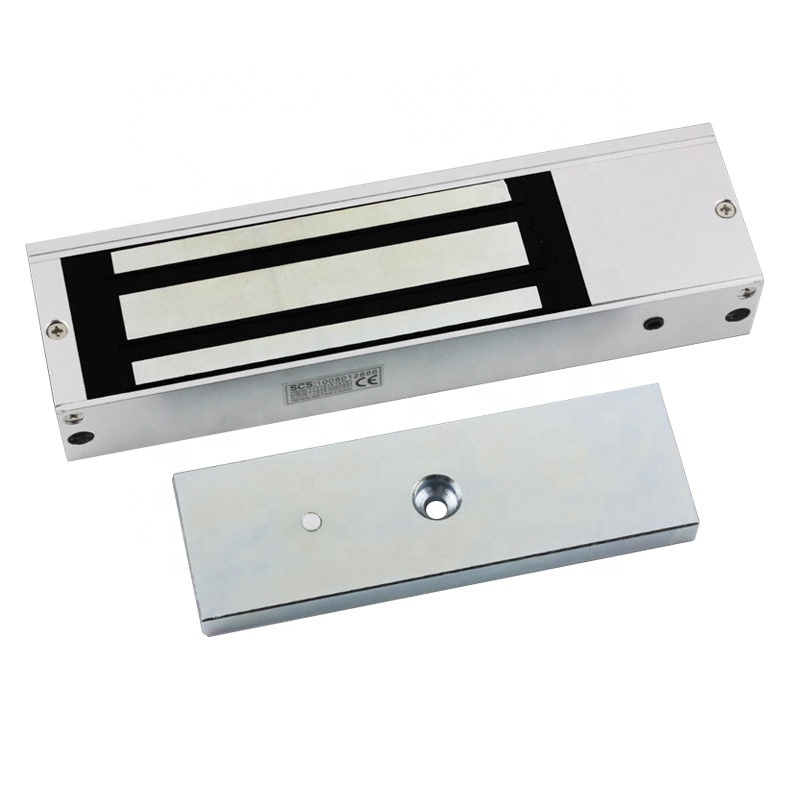

2.Picture Show
