Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ACCTEK
-
Dimension(L*W*H):
-
800*580*380mm
-
Weight (KG):
-
680 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power(W):
-
20W 30W 50W 100W
-
Table:
-
Aluminum alloy up-down table
-
Control Software:
-
EZCAD
-
Cooling system:
-
air cooling system
-
Red point:
-
clear the working path
-
Marking head:
-
galvanometer/field lense
-
PC control system:
-
Windows XP and Win7
-
optional:
-
80mm diameter rotary is optional
-
Certification:
-
ce
Quick Details
-
Engraving Area:
-
600*900
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
12000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ACCTEK
-
Dimension(L*W*H):
-
800*580*380mm
-
Weight (KG):
-
680 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power(W):
-
20W 30W 50W 100W
-
Table:
-
Aluminum alloy up-down table
-
Control Software:
-
EZCAD
-
Cooling system:
-
air cooling system
-
Red point:
-
clear the working path
-
Marking head:
-
galvanometer/field lense
-
PC control system:
-
Windows XP and Win7
-
optional:
-
80mm diameter rotary is optional
-
Certification:
-
ce
1) Compact:
The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
2) High Precision:
Re-position precision is 0.002mm
3) High Speed:
Imported scanning system makes the scanning speed is up to 7000mm/s
4) Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5) High Reliability: MTBF>100,000 hours
6) Energy Saving: The efficiency of optic-electrical converting is up to 30%
7) Low Running Cost: No consumable parts. Free maintaining.
|

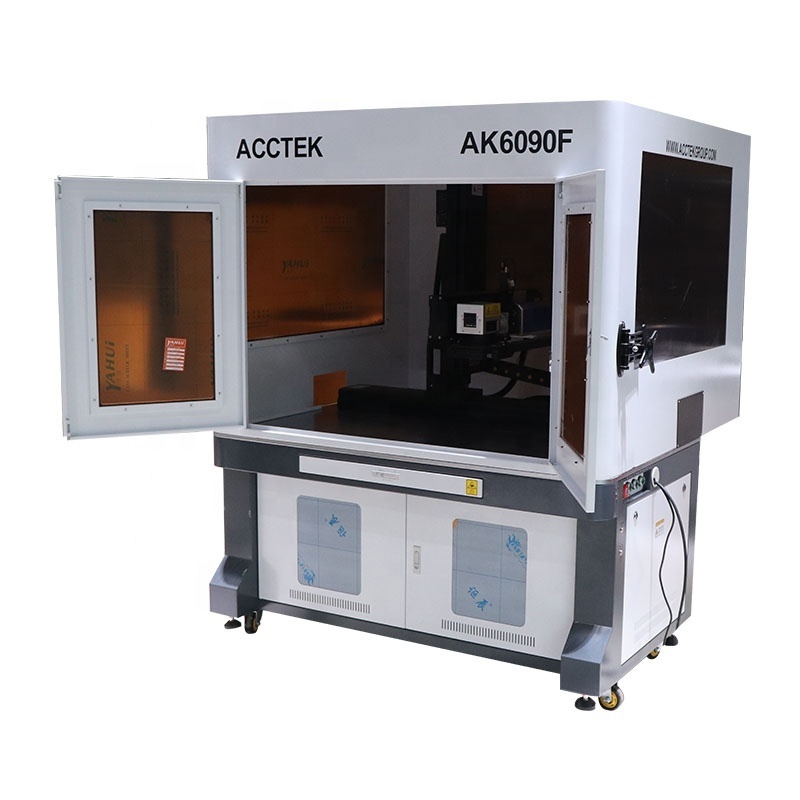

Model
|
AK6090F
|
|
Laser Generator
|
Raycus/IPG/JPT
|
|
Laser Power
|
20W/30W/50W
|
|
Laser Length
|
1064nm
|
|
Quality of Lase Beam
|
m2<1.5
|
|
Laser Repetition Frequency
|
≤100 KHz
|
|
Standard Marking Area
|
600*900mm
|
|
Engraving Depth
|
≤1.2mm
|
|
Engraving Speed
|
≤12000mm/s
|
|
Minimum Line Width
|
0.01mm
|
|
Minimum Character
|
0.05mm
|
|
Resolution Ratio
|
±0.001mm
|
|
Gross Power
|
≤500W
|
|
Working Voltage
|
200V/50Hz/10A
|
|
Cooling Mode
|
Air cooling
|
