Quick Details
-
Voltage:
-
380V
-
Power:
-
5-7KW/20KW/30KW/25KW
-
Dimension(L*W*H):
-
1500*600*1200MM
-
Weight:
-
100 KG
-
Material:
-
304 Stainless Steel
-
Thickness of Cake:
-
0.4-2.5MM
-
Diameter of Cake:
-
8-30CM (Single Head)
-
Shape:
-
Round; Oval; Rectangular
-
Product Weight:
-
10~60G
-
Application:
-
Industry Food Equipment
-
Advantage:
-
Automatic PLC Control
-
Function:
-
Tortilla Maker
-
Certificate:
-
ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL
Quick Details
-
Production Capacity:
-
75KG/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GONDOR
-
Voltage:
-
380V
-
Power:
-
5-7KW/20KW/30KW/25KW
-
Dimension(L*W*H):
-
1500*600*1200MM
-
Weight:
-
100 KG
-
Material:
-
304 Stainless Steel
-
Thickness of Cake:
-
0.4-2.5MM
-
Diameter of Cake:
-
8-30CM (Single Head)
-
Shape:
-
Round; Oval; Rectangular
-
Product Weight:
-
10~60G
-
Application:
-
Industry Food Equipment
-
Advantage:
-
Automatic PLC Control
-
Function:
-
Tortilla Maker
-
Certificate:
-
ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL
Introduction

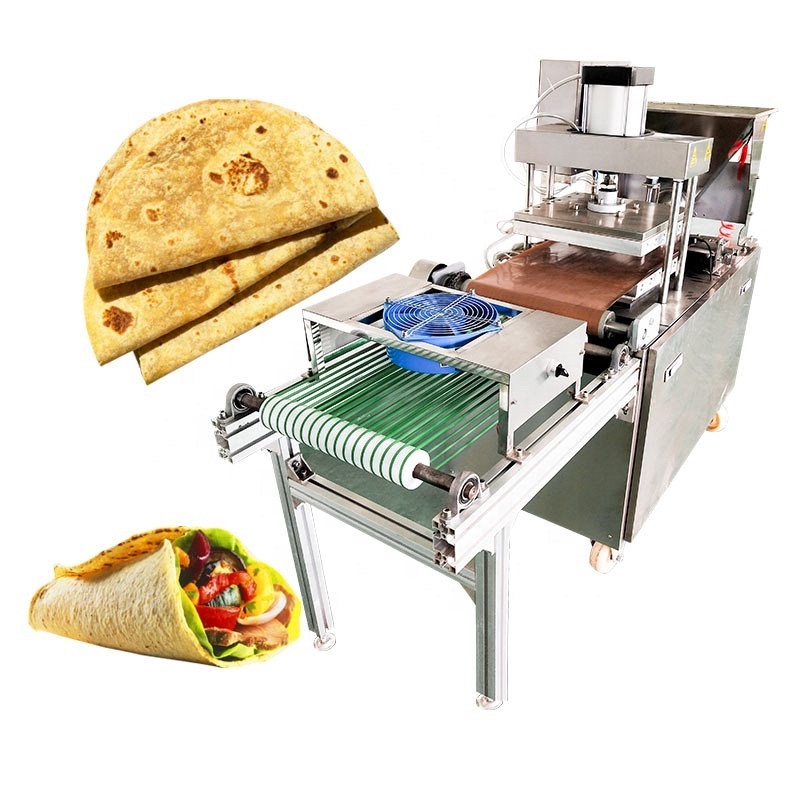

This machine is a variety of fabrics through the motor uniform speed to drive the surface extrusion device, uniform output. The cylindrical rod stock is then cut and formed by the knife mechanism. After the on. Lower pressure plate, pre-press molding, enter on. Lower the baking pan and then enter the air to cool and sprinkle the powder. This machine is equipped with a flour feeding mechanism, through the operation of the motor and brush, so that the flour is evenly sprinkled on the cake, which has a preventive adhesion effect on the viscous product. The lower vias adjust the size of the powder volume to meet the appropriate requirements.
Application
Schools, wholesale markets, chain hotels, factories.
Features
1. Into one side, one continuous cake, no manual intervention, constant temperature grilling, uniform fire.
2. The machine mechanical and electrical integration adjustment system, low noise, high efficiency, simple operation, one can operate, save time and effort.
3. T he whole structure is exquisite, enter the system work smoothly, not easy to occur shortcomings, folding an loading more convenient cleaning.
4.
Taste,diameter(10-350cm),thin thickness(0.3-1mm),fire color, speed can be adjusted.
5. The shape of the round cake made by traditional handwork is more regular, the color is more pure, the taste even more powerful, and it can be stored at low temperature.
6. Imitation hand-made bread cake, absolutely pure natural green food, without any additives.
7. The machine can be produced: round roast, round single cake,duck cake, Mexican burritos.
Paramater
Model | GD350 | GD450 | GD650 |
Capacity | 9—10KG/H | 35KG/H | 75KG/H |
Size | 1.5*0.6*1.2m |
5.3*0.8*1.4m Main machine:2.8m auxiliary machine:2.5m |
5.3*1.05*1.4m Main machine:2.8m auxiliary machine:2.5m |
Voltage | 380V | 380V |
380V
|
Weight | 100KG | 500KG |
550KG |
The thickness of the pie | 0.4—2.5mm | 0.4—2.5mm | 0.4—2.5mm |
The diameter of the pie | 18—30cm | 15—40cm | 18—30cm |
Power | 5—7KW | 20KW | 30KW |
Q1 What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shippment.
Q2 How many employee is needed for the machine?
A:Depends on customer's machine condition. For single machine, need 1 employee; for production line, depends on the situation.
Q3 What about the shipping methods
A: Ocean freight, air freight, land freight and express. Delivery service to the port or to door available.
Q4 What is the warranty ?
A: One year warranty. From the date when machine was received, any fault except for wrong operation during warranty period could be repaired freely. But the travel and hotel expenses should be paid by buyer.
Q5 How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Install waterproof membrane to reduce dust and water pollution
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
