Quick Details
-
Cooling Capacity:
-
1ton
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YC
-
Voltage:
-
Customized
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
20 KG
-
Temperature::
-
-28~6C
-
Voltage::
-
380v/220v
-
Model/ power:
-
DD15/180W
-
Density::
-
35-50kg/m3
-
Cold room panel::
-
PUR /PIR
-
Thermal conductivity:
-
0.019(PIR), =<0.024(PUR)
-
Cold room doors::
-
swing door, sliding door
-
Thickness of panel::
-
75, 100, 150, 200, 250mm
-
After Warranty Service:
-
Online support
-
Showroom Location:
-
None
Quick Details
-
Temperature:
-
-25~10
-
Compressor brand:
-
YC
-
Panel Thickness:
-
75MM,100MM,150MM,200MM
-
Cooling Capacity:
-
1ton
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YC
-
Voltage:
-
Customized
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
20 KG
-
Temperature::
-
-28~6C
-
Voltage::
-
380v/220v
-
Model/ power:
-
DD15/180W
-
Density::
-
35-50kg/m3
-
Cold room panel::
-
PUR /PIR
-
Thermal conductivity:
-
0.019(PIR), =<0.024(PUR)
-
Cold room doors::
-
swing door, sliding door
-
Thickness of panel::
-
75, 100, 150, 200, 250mm
-
After Warranty Service:
-
Online support
-
Showroom Location:
-
None
Product Description
Features and advantages:
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys
can go in and out.
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys
can go in and out.
Details Images
Specification
|
Common Food Freezer
|
|
|
|
|
||||
|
Refrigerator type and composition
|
|
|
|
|
||||
|
NO#
|
Cold room description
|
Room temperature
|
Relative humidity(RH)
|
|
||||
|
1
|
Chilling room
|
0~4
|
——
|
Meat ,eggs etc
|
||||
|
2 |
Freezing room |
-18~-23
|
——
|
Meat,poultry,rabbit ,ice egg, vegetable,etc
|
||||
|
|
|
-23~-30
|
——
|
Fish, shrimp etc.
|
||||
|
3
|
cooling room
|
0
|
85~90
|
Chilled meat ,poultry etc
|
||||
|
|
|
-2~0
|
80~85
|
Fresh eggs
|
||||
|
|
|
-1~+1
|
90~95
|
Meat mincer
|
||||
|
|
|
0~-2
|
85~90
|
Apples , pears etc
|
||||
|
|
|
-1~+1 |
90~95 |
Bigger cabbage,garlic ,onion ,spinach ,coriander, carrot,carrot ,wild cabbage ,celery, asparagus lettuce, etc.
|
||||
|
|
|
+2~+4
|
85~90
|
Potatoes, oranges, lychees, etc
|
||||
|
|
|
+7~+13
|
85~95
|
Persimmon pepper, bean, cucumber, tomato, pineapple, orange, etc
|
||||
|
|
|
+11~+16
|
85~90
|
Banana
|
||||
|
4
|
|
-15~-20
|
85~90
|
Frozen meat, poultry, by-products, frozen eggs, frozen vegetables, popsicles, etc
|
||||
|
|
|
-18~-25
|
90~95
|
Frozen fish, frozen shrimp, frozen drinks, etc
|
||||
|
5
|
Icehouse
|
-4~-6
|
——
|
Saltwater ice
|
||||
Base material of warehouse board surface
Base material specification of warehouse board surface ：
Door category:
1. Color Steel Plate
Shenzhen Huamei ：0.326mm, 0.426mm, 0.526mm, 0.576mm .
Baosteel：0.5mm, 0.6mm, 0.8mm
2. Stainless steel 304# ：0.46mm, 0.56mm, 0.76mm, 0.96mm
3.Galvanized sheet ：0.5mm, 1.0mm, 1.2mm, 1.5mm .
4. Aluminum flower ：0.6mm .5. Antiskid aluminum sheet ：3.0mm, 5.0mm2
Baosteel：0.5mm, 0.6mm, 0.8mm
2. Stainless steel 304# ：0.46mm, 0.56mm, 0.76mm, 0.96mm
3.Galvanized sheet ：0.5mm, 1.0mm, 1.2mm, 1.5mm .
4. Aluminum flower ：0.6mm .5. Antiskid aluminum sheet ：3.0mm, 5.0mm2
Door category:
Single opening convex cover doo, Double door, Single opening and flat cover door,Double door,Single open sliding door(sliding gate), Quick Shutter curtained door, Sliding door

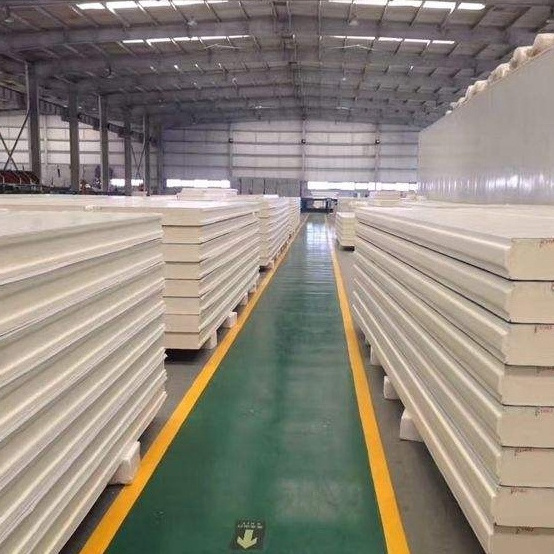

Manufacturing Technique
