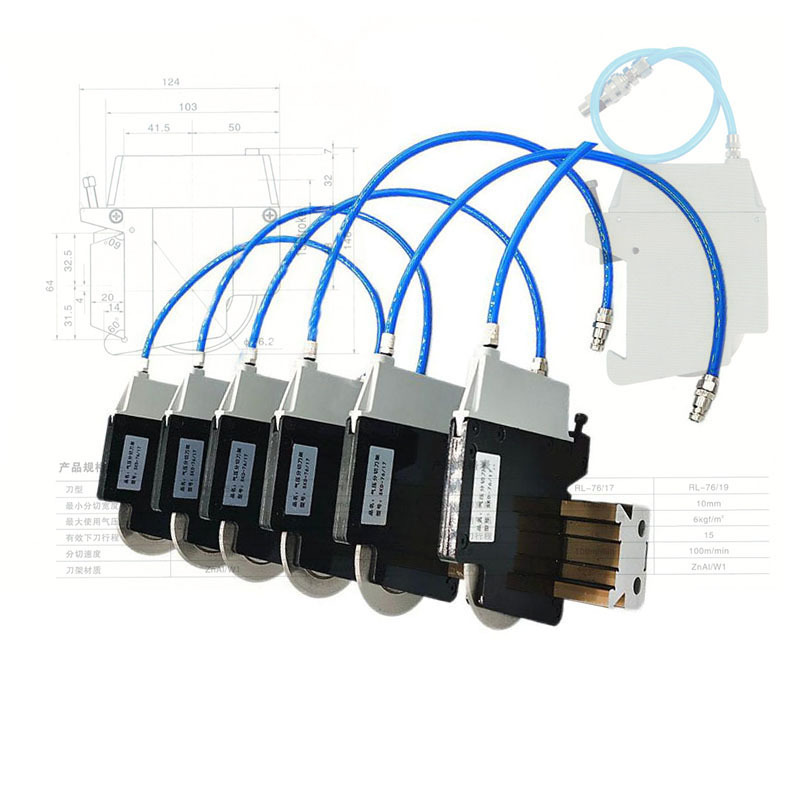

Pneumatic slitting cutter holder pneumatic round blade holder cutter slitting guide bearing cutter 76 * 17

Pneumatic slitting cutter holder pneumatic round blade holder cutter slitting guide bearing cutter 76 * 17

FOB Reference Price: Get Latest Price

≥1 Pieces

US $40

≥5 Pieces

US $38

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: QLTY

Product name:: Pneumatic Knife Blade Holders

Application:: cutting

Quick Details

Marketing Type:: Hot Product

Core Components:: Blade

Type:: Serrated Blade

Brand Name:: QLTY

Product name:: Pneumatic Knife Blade Holders

Application:: cutting

Products Description

one of the most versatile and flexible crush knife-holder for crush slitting.provide stable down force to perform various material slitting job. It can replace score blade/zig zag blade/ k dash blade/wave blade for different slitting application. blade holder is using screw method to fix on guide-bar which is compatible. Because of its versatility, widely used in light rubber, paper, cloth, plastic film...etc.

Product Paramenters

Model	QLTY-76/17
Minimum slitting width	10mm
Maximum air pressure	6kgf/㎡
Slitting speed	100m/min

Pneumatic Blade Holders for Cutting Machine

1. Material: D2,HSS,9Crsi..

2. Hardness:HRC48-68

3. High precision surface,burr-free

4. More than 10 years professional manufacture experience

5. Strict quality management system

6. Small orders accepted.

7. OEM and ODM

8. Standard: ISO / CE / SGS / SASO

QLTY-90/60

Maximum lower knife stroke： 28 mm

Min slitting width：60 mm

Pressure： 4-6 kgf/ ㎡

Maximum applicable slitting speed:1200 m/min

Maximum slitting paper thickness: 500 g/ ㎡

Maximum thickness of slitting film: 1.5 mm

Connector 1/8”

Maximum slitting paper thickness 1000/ ㎡

QLTY-130/80 (QLTY-150/80)

Maximum lower knife stroke： 28 mm

Min slitting width：60 mm
Pressure： 4-6 kgf/ ㎡
Maximum applicable slitting speed:1200 m/min
Maximum slitting paper thickness: 1000 g/ ㎡
Maximum thickness of slitting film: 1.5 mm
Connector 1/8”
Maximum slitting paper thickness 1000/㎡

QLTY-180/80

Maximum lower knife stroke： 28 mm
Min slitting width：60 mm
Pressure： 4-6 kgf/ ㎡
Maximum applicable slitting speed:1200 m/min
Maximum slitting paper thickness: 1200 g/ ㎡
Maximum thickness of slitting film: 1.5 mm
Connector 1/8”
Maximum slitting paper thickness 1000/㎡
