Quick Details
-
Model Number:
-
JLTS1200D / JLTS1500D / JLTS2000D / JLTS2600D
-
Dimension(L*W*H):
-
4x1.7x2.4m
-
Year:
-
2024
-
Weight (KG):
-
22000
-
Power (kW):
-
45kw+45kw/55kw+55kw/75kw+75kw
-
Name:
-

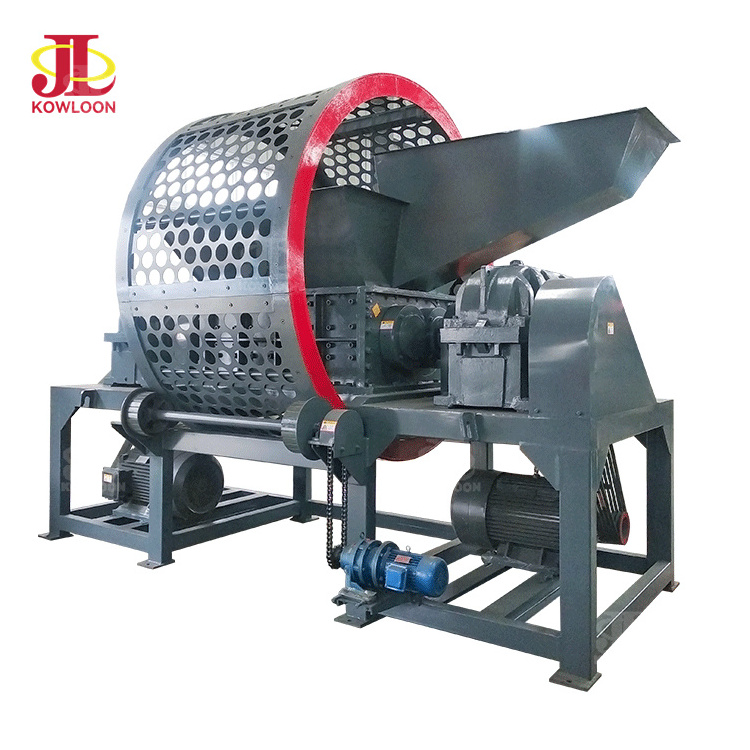

Tire Shredder
-
Raw material:
-
Car/truck/bus/mining tires
-
Application:
-
Rubber crumb plant / Rubber powder plant
-
Model:
-
JLTS1200D / JLTS1500D / JLTS2000D / JLTS2600D
-
Motor:
-
30kw/55kw/75kw/90kw/110kw/160kw
-
Motor brand:
-
WN/Siemens/ABB/WEG
-
Gearbox:
-
2units, planetary type, motor direct connected, gear driven
-
Shredder blade:
-
Dia.530/560/600mm
-
Screen hole size:
-
Dia.50mm-200mm
-
Weight:
-
16500kg-34000kg
Quick Details
-
Place of Origin:
-
Henan
-
Brand Name:
-
Kowloon Machinery
-
Marketing Type:
-
New Product 2024
-
Model Number:
-
JLTS1200D / JLTS1500D / JLTS2000D / JLTS2600D
-
Dimension(L*W*H):
-
4x1.7x2.4m
-
Year:
-
2024
-
Weight (KG):
-
22000
-
Power (kW):
-
45kw+45kw/55kw+55kw/75kw+75kw
-
Name:
-
Tire Shredder
-
Raw material:
-
Car/truck/bus/mining tires
-
Application:
-
Rubber crumb plant / Rubber powder plant
-
Model:
-
JLTS1200D / JLTS1500D / JLTS2000D / JLTS2600D
-
Motor:
-
30kw/55kw/75kw/90kw/110kw/160kw
-
Motor brand:
-
WN/Siemens/ABB/WEG
-
Gearbox:
-
2units, planetary type, motor direct connected, gear driven
-
Shredder blade:
-
Dia.530/560/600mm
-
Screen hole size:
-
Dia.50mm-200mm
-
Weight:
-
16500kg-34000kg
Products Description
Applicable Materials
Bicycle tires, Electric vehicle tires, Motorcycle tires, Passenger car tires, Bus tires, Off-road vehicle tires, Agricultural and Forestry machinery tires, Light truck tires, Construction machinery tires, Industrial vehicle tires.
Technical Parameters
|
Model
|
JLTS1200D
|
JLTS1500D
|
JLTS2000D
|
JLTS2600D
|
|||
|
Motor
|
45kw+45kw
|
55kw+55kw
|
75kw+75kw
|
90kw+90kw /
110kw+110kw
|
|||
|
Motor brand
|
WN/Siemens/ABB/WEG
|
|
|
|
|||
|
Gearbox
|
2units, planetary type, motor direct connected, gear driven
|
|
|
|
|||
|
Shredder chamber
size (inner)
|
1180*1050mm
|
1480*1050mm
|
1920x1250mm
|
2520*1450mm
|
|||
|
Rotor speed
|
8-12rpm
|
8-12rpm
|
6-8rpm
|
6-8rpm
|
|||
|
Shredder blade
|
Dia.530mm
|
Dia.530/560/600mm
|
Dia.560/600mm
|
Dia.720mm/900mm
|
|||
|
Screen hole size
|
Dia.50mm-200mm
|
|
|
|
|||
|
Dimension
|
3.2x2x1.9m
|
4x1.7x2.4m
|
5.5x3.5x3m
|
6.2x4.3x3.3m
|
|||
|
Weight
|
16500kg
|
18000-22000kg
|
25000-28000kg
|
32000-34000kg
|
|||
Details Show
Features
1. Low speed, high torque rotor, cutting and shearing working principle suitable for both soft and hard materials;
2. Blades made of special alloy, different shape, thickness and cutting head quantity providing the optimum solution for different materials.
3. Siemens, abb, weg…etc quality motors are available for different customers’ options
4. Schneider, chint, siements…etc electrical components to ensure steady performance and realize machine 24hours running, also plc system is optional to enabling automatic reverse for overload protection and minimizing blades damages;
5. Individual electrical control panel with plc control system ensure the machine work properly and safety;
6. Detachable type cutting head on shredder blades, makes the maintenance and replacement of wearing parts easier and much shorten maintenance time.
7. Low speed, lower noise, workable in workshop and outdoor.
