Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALLMAN
-
Model Number:
-
AMW
Quick Details
-
Power Source:
-
Electric
-
Application:
-
CRANES
-
Capacity:
-
500kg
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALLMAN
-
Model Number:
-
AMW
Product Description

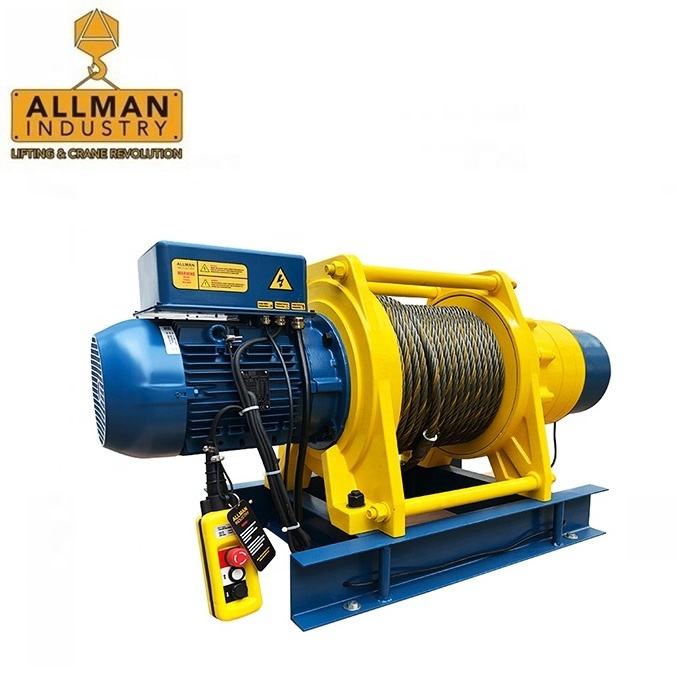

500kg CE Approved Heavy Duty Electric Winch
Electric winch is the ac powered winch, which have high speed in pulling or lifting application. It can be set on the ground and fixed on the I-Beam. The industrial electric winch could designed as several kinds of voltage (230/380/415/440/480V) to meet various demands of power supply. Have a leading technical team, Allman Industry can provide you winch with high quality and competitive price.
Details Images
Product Specifications
|
Model
|
AMW-500
|
AMW-750
|
AMW-1000
|
AMW-1600
|
|||
|
Capacity
|
500kg
|
750kg
|
1000kg
|
1600kg
|
|||
|
Wire Rope Length
|
60m/100m
|
60m/100m
|
60m/100m
|
60m/100m
|
|||
|
Wire Rope Dia.
|
9mm
|
10mm
|
11mm
|
13mm
|
|||
|
Working Speed
|
13-19m/min
|
13-19m/min
|
13-19m/min
|
13-19m/min
|
|||
|
Motor Power
|
1.5kW
|
2.2kW
|
3.0kW
|
4.0kW
|
|||
|
Power Supply
|
3Phase, 220/380/440V
|
|
|
|
|||
|
Model
|
AMW-2200
|
AMW-3200
|
AMW-3600
|
AMW-5000
|
|||
|
Capacity
|
2200kg
|
3200kg
|
3600kg
|
5000kg
|
|||
|
Wire Rope Length
|
60m/100m
|
100m/160m
|
100m/160m
|
200m/300m
|
|||
|
Wire Rope Dia.
|
16mm
|
18mm
|
18mm
|
22mm
|
|||
|
Working Speed
|
9-14m/min
|
9-14m/min
|
9-14m/min
|
6-12m/min
|
|||
|
Motor Power
|
5.5kW
|
7.5kW
|
9.2kW
|
15kW
|
|||
|
Power Supply
|
3Phase, 220/380/440V
|
|
|
|
|||
