Quick Details
-
Model Number:
-
H-CA-321110-1
-
Battery Size:
-
150 kwh battery
-
Place of Origin:
-
Hunan, China
-
Weight:
-
>1500kg, 1500kg
-
The charging ratio:
-
1C ev Bus battery pack
-
The discharge rate:
-
1C 666v battery
-
Electric Energy:
-
151848 Wh
-
Size:
-
LifePo4
-
Voltage:
-
666V
-
Capacity:
-
228AH
-
Cycle life:
-
3000times
-
Battery type:
-
LiFePO4
-
Warranty:
-
3 Years
-
Protection:
-
BMS Protection
-
OEM/ODM:
-
ev battery pack
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Electric Forklifts
-
Brand Name:
-
CTS
-
Model Number:
-
H-CA-321110-1
-
Battery Size:
-
150 kwh battery
-
Place of Origin:
-
Hunan, China
-
Weight:
-
>1500kg, 1500kg
-
The charging ratio:
-
1C ev Bus battery pack
-
The discharge rate:
-
1C 666v battery
-
Electric Energy:
-
151848 Wh
-
Size:
-
LifePo4
-
Voltage:
-
666V
-
Capacity:
-
228AH
-
Cycle life:
-
3000times
-
Battery type:
-
LiFePO4
-
Warranty:
-
3 Years
-
Protection:
-
BMS Protection
-
OEM/ODM:
-
ev battery pack

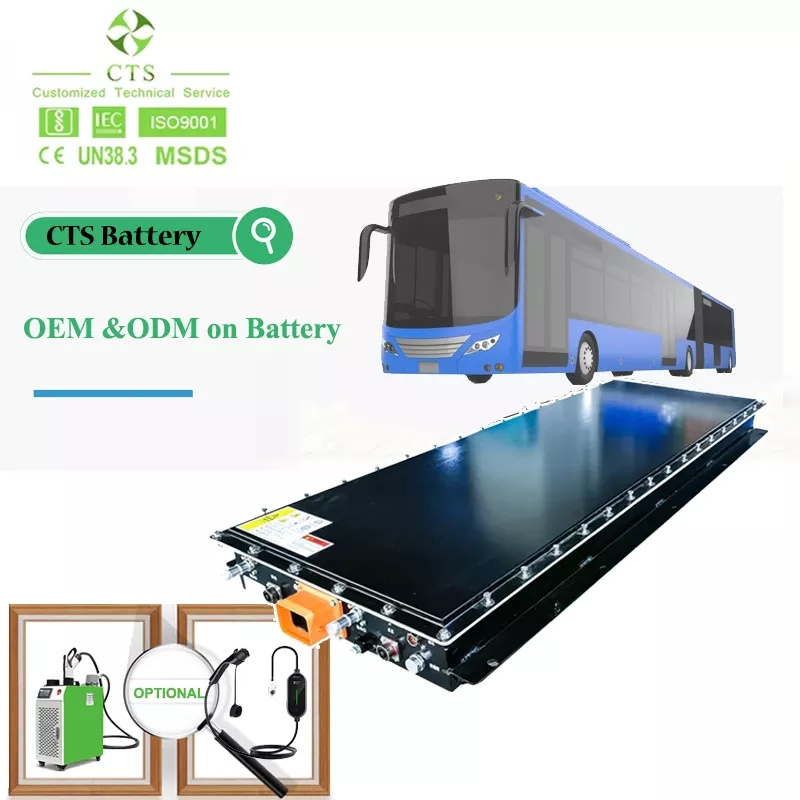

CTS 600V/400V/300v/144V/96V Lifepo4 Battery pack
for Bus/truck/EV
CTS battery solutions for different vehicles
|
Parameters of 666v 228 AH Battery pack
|
|
|
|
|
||||
|
No.
|
Items
|
Technical data
|
Note
|
|
||||
|
1
|
Battery type
|
Lifepo4
|
2P168S
|
|
||||
|
2
|
Capacity
|
228Ah
|
@25℃
|
|
||||
|
3
|
Voltage
|
666V
|
|
|
||||
|
4
|
Power
|
151.8kwh
|
|
|
||||
|
5
|
Weight
|
>1500Kgs
|
|
|
||||
|
7
|
Working voltage range
|
666V
|
|
|
||||
|
8
|
Continuous discharge current
|
200A
|
|
|
||||
|
9
|
Dimension
|
L1427*W530*H200mm
|
|
|
||||
|
10
|
Battery models
|
H-CA-321110-1
|
|
|
||||
|
NMC 72V 200Ah Lithium battery
|
|
|
|
Battery Type
|
NMC
|
|
|
Capacity
|
200Ah @25℃
|
|
|
Voltage
|
72v
|
|
|
Weight
|
130.5kg
|
|
|
Working voltage
|
60v - 84v
|
|
|
Battery power: 14.4 kWh
Client Country: Canada, in operation since 2015
|
|
|
|
NMC 72V 200Ah Lithium battery
|
|
|
|
Battery Type
|
NMC
|
|
|
Capacity
|
200Ah @25℃
|
|
|
Voltage
|
72v
|
|
|
Weight
|
130.5kg
|
|
|
Working voltage
|
60v - 84v
|
|
|
Battery power: 14.4 kWh
Client Country: Canada, in operation since 2015
|
|
|
|
NMC 144V 100Ah lithium battery
|
|
|
|
Battery Type
|
NMC
|
|
|
Capacity
|
100Ah @25℃
|
|
|
Voltage
|
144v
|
|
|
Weight
|
130.5kg
|
|
|
Working Voltage
|
120v - 168v
|
|
|
Battery power: 14.4 kWh
Client Country: Thalaind, In operation since 2020
|
|
|
|
NMC 330V 100Ah Lithium battery
|
|
|
|
Battery Type
|
NMC
|
|
|
Cpacity
|
100Ah @25℃
|
|
|
Voltage
|
330v
|
|
|
Weight
|
276kg
|
|
|
Working voltage
|
276V - 386.4V
|
|
|
Battery power: 33.12 kWh
Client Country: Russia, In operation since 2019
|
|
|
|
Lifepo4 614v 100Ah lithium battery
|
|
|
|
Battery Type
|
Lifepo4
|
|
|
Capacity
|
100Ah @25℃
|
|
|
Voltage
|
614.4v
|
|
|
Weight
|
558kg
|
|
|
Working Voltage
|
480v - 700.8v
|
|
|
Battery power: 61.44 kWh
Client Country: UK, In operation since 2019
|
|
|
