- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
111111111 KG
-
Name:
-
spray painting machine
-
External Dimension:
-
11.0*2.7*2.68m
-
Max Machining Length:
-
0.4-2.44m
-
Max Machining Width:
-
0.2-1.2mm
-
Max Machining Thickness:
-
20-150mm
-
Working Spray Gun:
-
2
-
Servomotor:
-
4kw
-
Air pressure:
-
0.6mpa
-
Power supply:
-
380v 50HZ
-
Keywords:
-
Woodworking Machine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hicas
-
Machine Type:
-
Spray Painting Machine
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
111111111 KG
-
Name:
-
spray painting machine
-
External Dimension:
-
11.0*2.7*2.68m
-
Max Machining Length:
-
0.4-2.44m
-
Max Machining Width:
-
0.2-1.2mm
-
Max Machining Thickness:
-
20-150mm
-
Working Spray Gun:
-
2
-
Servomotor:
-
4kw
-
Air pressure:
-
0.6mpa
-
Power supply:
-
380v 50HZ
-
Keywords:
-
Woodworking Machine
Product Description

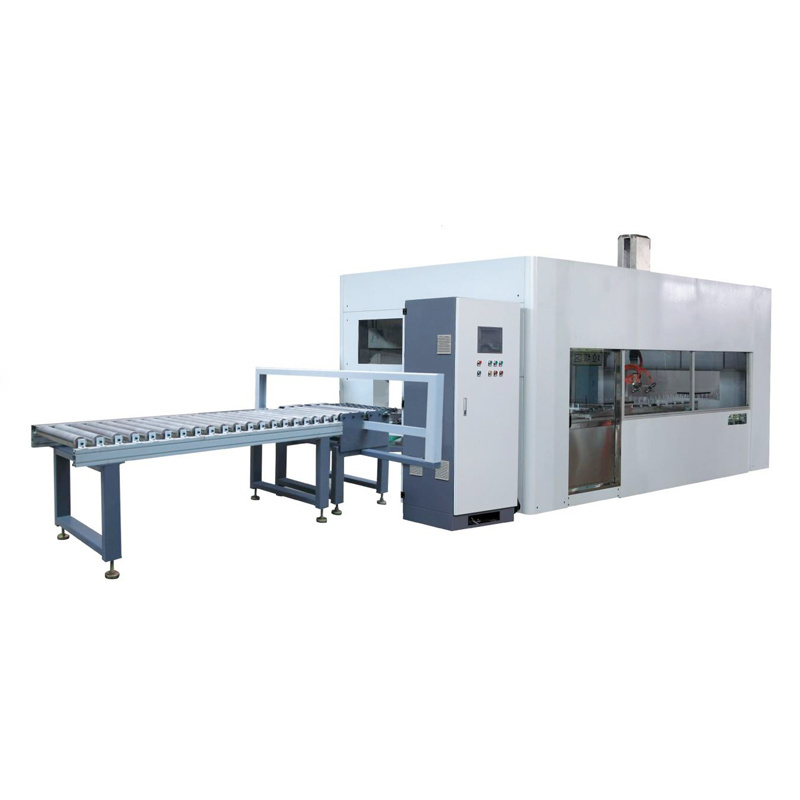

Intelligent Straight Line Sprayer
1.the use of thimble delivery mode feeding,automatic detection of all specifications of the product one-time spraying completed,reducing the process,effectively improve the effciency of production to ensure spray quality.
2.the processing range can be applied to different width of product processing.
3.can be cofigured with other production equipment at the same time the productuin line to increase production efficiency.
1.the use of thimble delivery mode feeding,automatic detection of all specifications of the product one-time spraying completed,reducing the process,effectively improve the effciency of production to ensure spray quality.
2.the processing range can be applied to different width of product processing.
3.can be cofigured with other production equipment at the same time the productuin line to increase production efficiency.
|
External Dimension
|
11.0*2.7*2.68m
|
|
Max Machining Length
|
0.4-2.44m
|
|
Max Machining Width
|
0.2-1.2mm
|
|
Max Machining Thickness
|
20-150mm
|
|
Moving Speed Of Spray Gun
|
0-1500mm/s
|
|
Spray gun caliber
|
0.8/1.0/1.3mm
|
|
Working Spray Gun
|
2
|
|
Servomotor
|
4kw
|
|
Air pressure
|
0.6mpa
|
|
Type of paint
|
PE/PC/PU/UC/NC/UV/water paint
|
|
Gas Consumption
|
700-900L/min
|
|
Power supply
|
380v 50HZ(could choose as your demands,price also different)
|
Plan Sketch For Production Line
Intelligent linear PU/NC/water-based paint spraying production line
Intelligent linear PU/NC/water-based paint spraying production line
Smart line UV coating production line
Application:
