Quick Details
-
Design Style:
-
venetian
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZMYQ/OEM
-
Model Number:
-
ZM25TQ-2/25
-
Usage:
-
Automatic Roller Blinds Motor
-
Product Name:
-
25mm WiFi Tubular Roller Blind Motor
-
Control Method:
-
Percentage+Timer+Voice+App+RF+Manual
-
App Name:
-
Smart life Tuya APP
-
Feature:
-
Wireless App Remote Control
-
Aluminum Tube:
-
38mm
-
Max Load:
-
10kg
-
Color:
-
Black
-
Warranty:
-
12 Months
Quick Details
-
Applicable Window Type:
-
French Window
-
Opening and Closing Method:
-
Upper and Lower Biparting Open
-
Installation Type:
-
Ceiling Installation, Exterior Installation, Side Installation
-
Design Style:
-
venetian
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZMYQ/OEM
-
Model Number:
-
ZM25TQ-2/25
-
Usage:
-
Automatic Roller Blinds Motor
-
Product Name:
-
25mm WiFi Tubular Roller Blind Motor
-
Control Method:
-
Percentage+Timer+Voice+App+RF+Manual
-
App Name:
-
Smart life Tuya APP
-
Feature:
-
Wireless App Remote Control
-
Aluminum Tube:
-
38mm
-
Max Load:
-
10kg
-
Color:
-
Black
-
Warranty:
-
12 Months
Products Description
Tuya WiFi 2N Smart Roller Shade Blinds Motor for 38mm Tube Alexa Google Home Voice Control Zemismart Electric Curtain Motors
*Powered by Tuya
*Wireless Control: WiFi 2.4GHz
*Max load KG:10KG
*Fit to:General window length less than:3 meters & Tube:38mm
*Motor Diameter:25mm，*Torque:2.0Nm
*Rated RPM:33RPM，*Rated power:22W
*IP Class:IP44，*Rated Voltage:100V~240V
*Rated current:0.1A，*Rated Frequency:50/60Hz
*Receiving Frequency:433.92MHz
Advantage of products
Tuya WiFi Roller Blind Motor For 38mm Tube Suitable 3M Window
Length Alexa Voice Control Smart Life Automatic Blinds Curtain Opener
* Built in WiFi module, no hub is required.
* This is WiFi roller shade motor for OD. 36-38 mm /1.5 inches tube.
* You can control the motor by Tuya/Smart Life APP, it can work with Alexa echo and Google Assistant.
* With wide voltage, it can work for 110 v to 240 v.
* With up/ middle/ Down limit for set, meet your mind easily.
Please CONFIRM that the WiFi connection of the mobile phone is 2.4 G firstly. Press the setting keys 3 times in the motor, motor shock once, that could use Tuya APP to ADD new device, follow the steps to match our motor.
* Rated voltage: AC 100 v-240 V
* Rated power: 22 W
* Rated Torque: 2.0 Nm
* Output speed: 33 rpm
* Level of protection: IP44
* Rated frequency: 50/60 Hz
* Carry up to: 10 kg shade fabric
* You can control the motor by Tuya/Smart Life APP, it can work with Alexa echo and Google Assistant.
* With wide voltage, it can work for 110 v to 240 v.
* With up/ middle/ Down limit for set, meet your mind easily.
Please CONFIRM that the WiFi connection of the mobile phone is 2.4 G firstly. Press the setting keys 3 times in the motor, motor shock once, that could use Tuya APP to ADD new device, follow the steps to match our motor.
* Rated voltage: AC 100 v-240 V
* Rated power: 22 W
* Rated Torque: 2.0 Nm
* Output speed: 33 rpm
* Level of protection: IP44
* Rated frequency: 50/60 Hz
* Carry up to: 10 kg shade fabric
Details Images
Tuya WiFi Roller Shade Motor with Battery For 37 38mm Tube Smart Life APP Control Alexa Google Home Control
Stronger Load-Bearing
This motor can pull at least 10kg curtain fabric
Application Scope
Tuya shade battery roller motor used in Rolling curtain ,Shangri-La Curtains and Zebra Blinds
Statement Of Setting Limit
You can set Up and Down limit on Tuya app , The up limit and the down limit must be set before the third limit is set , and the third limit will be deleted automatically when the up limit or down limit is deleted
Voice Control
Open and close blind via Aalexa/Google home /Yandex after set up on Tuya app
App Control
You can use Tuya APP to control the on/off of curtains
RF Control
You can use remote to turn on/off curtains, simple and conveniently
Share Function
You can share the smart roller motor with your family and friends , enjoy smart life together

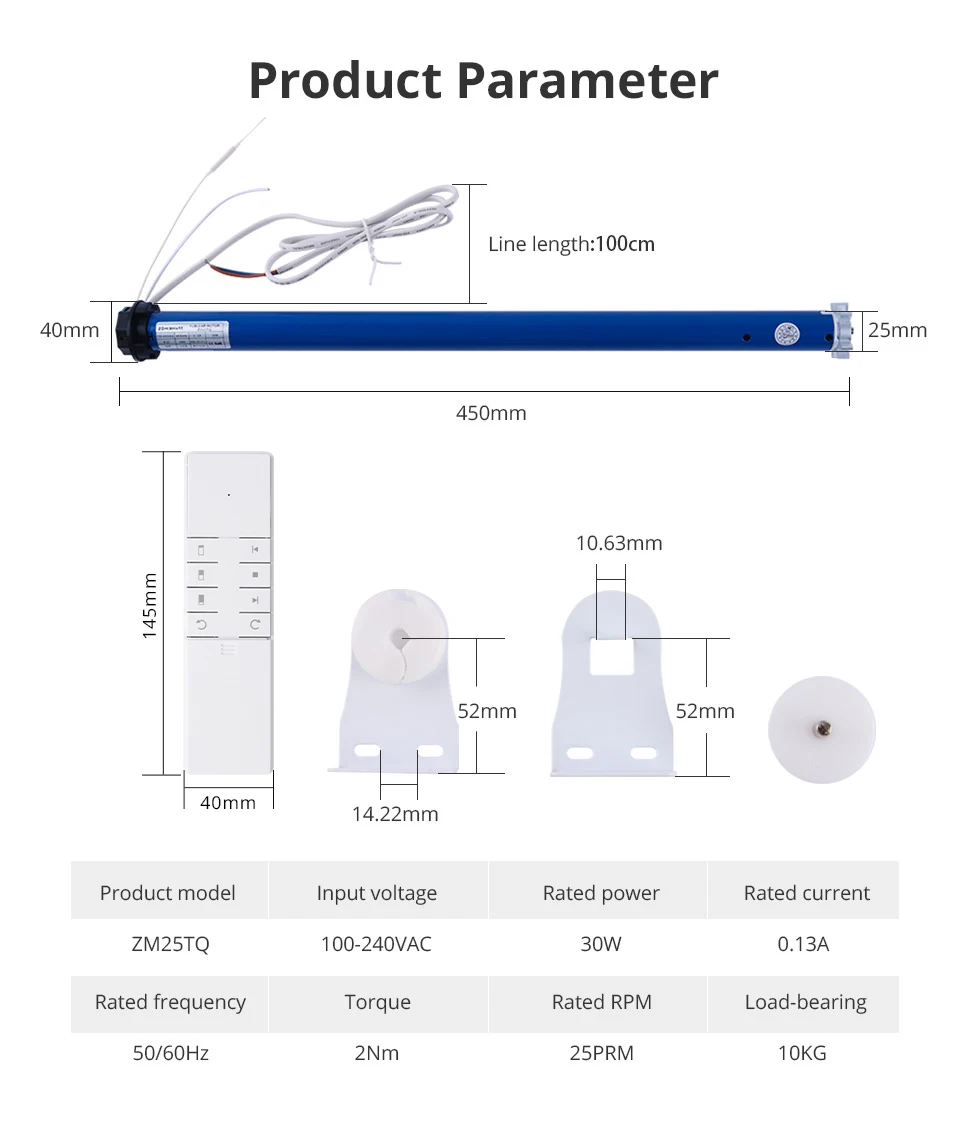

Specification
|
Product Name
|
25mm WiFi /ZigBeeTubular Roller Blind Motor
|
|
Wireless Control
|
WiFi/ZigBee
|
|
Max load KG
|
10KG
|
|
Fit to
|
General window length less than:3 meters & Tube:38mm
|
|
Motor Diameter
|
25mm
|
|
Torque
|
2.0Nm
|
|
Rated Voltage
|
100V~240V
|
|
Rated current
|
0.1A
|
|
Rated Frequency
|
50/60Hz
|
|
Receiving Frequency
|
433.92MHz
|
|
App
|
Tuya Smart Life App
|
|
Voice Control
|
Alexa Google Home Assistant
|
Installation Instructions
Contact Us
A: Yes, we have our own production line, so we can print your logo on the products, and there is without minimum order quantity requirements.
Q2. Can I customize my own package for the smart products?
A: Yes, basically, the minimum order quantity is 300 to 500pcs per model, but if you can't reach this order quantity, we also can support as long as you have a strong brand mind and strategy.
Q3. What about the lead time?
A: Normally samples need 1-5 days. If more then 300pcs per model per order, we will need about 1-2 weeks to finish products production.
Q4. How do you ship the goods and how long does it take to arrive?
A: Normally we delivey products by DHL, UPS, FedEd, TNT, EMS, or any other express which based on customers requirements. And we can ship products with battery without any problem.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional if your order qty is huge.
To Singapore, Malaysia, Indonesia, Philipines, we have DDP shipping ways to ship the goods to you safely.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 24 months warranty to all of our products.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 24 months warranty to all of our products.
Q6:Do you have any MOQ limits for orders?
A6:For samples orders, we accept any quantity requirements . After sample tested passed,
we will request at least one thousand us dollars value per order for mixed models.
we will request at least one thousand us dollars value per order for mixed models.
Q7: How to deal with the faulty products?
1. Products if dead in 30 days after arrival, can’t repair by remotely help, then we will give new ones for replacement together new orders.
2. If products broken in 12 months without misuse or damage by human courses, we offer free repair or free components to repair.If can't be fixed, so replace new one.
3. From 12-24 month, if broken, we offer free repair or free components for repair. If can't repair, so need customer pay for
main-board fee to replace it.
During this 24 months, we normally deliver spare-parts together new order in advance. You collect the defective ones to your warehouse, when it is enough qty to ship back, then ship back to us.
