Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
MSD2F8T-SFP, MSD2F8T-POE, MSD2F8T-SFP/POE/Power Adapter
-
Place of Origin:
-
Shenzhen
-
Product Name:
-
Gigabit Industrial Switches
-
Uplink Port Interfaces:
-
2 x 10/100/1000Base-X SFP
-
Network Port Interfaces:
-
8 x 10/100/1000Base-T
-
Console Interface:
-
1 x Console RJ45 Control Port
-
Power Connector:
-
3P Phoenix Terminal
-
Input Voltage:
-
DC12-55V/AC 100-240V 50-60HZ
-
POE support (optional):
-
802.3af, 802.3at
-
IP Rating:
-
IP40
-
Installation Method:
-
Rail Mounting
-
Size:
-
158 x 118 x 42mm
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
52G
-
Brand Name:
-
OEM
-
Model Number:
-
MSD2F8T-SFP, MSD2F8T-POE, MSD2F8T-SFP/POE/Power Adapter
-
Place of Origin:
-
Shenzhen
-
Product Name:
-
Gigabit Industrial Switches
-
Uplink Port Interfaces:
-
2 x 10/100/1000Base-X SFP
-
Network Port Interfaces:
-
8 x 10/100/1000Base-T
-
Console Interface:
-
1 x Console RJ45 Control Port
-
Power Connector:
-
3P Phoenix Terminal
-
Input Voltage:
-
DC12-55V/AC 100-240V 50-60HZ
-
POE support (optional):
-
802.3af, 802.3at
-
IP Rating:
-
IP40
-
Installation Method:
-
Rail Mounting
-
Size:
-
158 x 118 x 42mm
About order
For Ready to Ship Order：
1. The default
price
does not support SFP, POE
and
does not provide a power adapter
. If you want to support it, please contact customer service.
2.
We have unmanaged and managed industrial switches, please refer to the selection table below.
3.
If you have any question about our company or products, please feel free to
contact us.
Recommend Products
Product Description
General Description

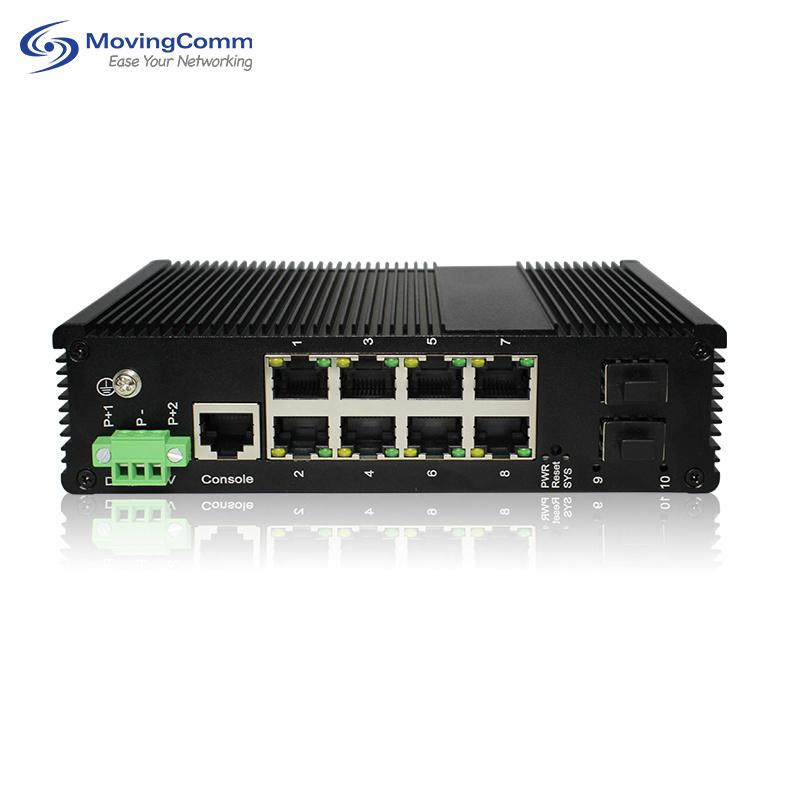

The
MSD2F8T-SFP/MSD2F8T-SFP-POE
is a
managed
industrial
layer-2
Gigabit fiber optic Ethernet switch, equipped with
8 x 10/100/1000Base-T
adaptive RJ45 ports and
2 x 1G SFP optical ports
. Built with a focus on industrial product design and materials, its aluminum alloy shell enhances heat dissipation performance. The fanless heat dissipation circuit design, wide range of working temperature, and high protection level ensure excellent industrial quality, including resistance to high/low temperatures and lightning protection. The switch supports various network functions such as WEB management, VLAN, QoS, SNMP, and IGMP snooping. It also supports Ethernet fast ring network protection with STP/RSTP/MSTP spanning tree ring network and ERPS capabilities.
This device is ideal for challenging environments such as outdoor surveillance, industrial networks, and safe cities, where fanless, low power consumption, and industrial-grade design with an operating temperature range of
-40 to 85°C
are required. It can cater to various industrial sites and offer economical solutions. The MSD2F8T-SFP/MSD2F8T-SFP-POE finds wide applications in broadband data transmission fields, including smart buildings, smart cities, smart communities, smart transportation, telecommunications, security, financial securities, customs, shipping, electric power, water conservancy, and oil fields.
Specification
|
INTERFACE
|
|
|
|
Uplink Port Interfaces
|
2 x 1000/100 SFP Port
|
|
|
Network Port Interfaces
|
8 x 10/100/1000Base-T RJ45 Port
|
|
|
Console Interface
|
1 x Console RJ45 Control Port
|
|
|
Power Connector
|
3P Phoenix Terminal
|
|
|
LED Lights
|
Power Indicator: PWR (Green)
|
|
|
|
System Indicator: SYS (Green)
|
|
|
|
Network Port Indicator: Yellow (1000 or PoE) Green (Speed)
|
|
|
CABLE TYPE AND DISTANCE
|
|
|
|
Twisted Pair
|
0-100m (CAT5e, CAT6)
|
|
|
Single-Mode Fiber
|
20/40/60/80/100/120KM
|
|
|
Multimode Fiber
|
550m/2KM
|
|
|
Fiber Interface
|
LC/SC
|
|
|
Network Topology Mode
|
|
|
|
Ring Topology
|
Support
|
|
|
Star Topology
|
Support
|
|
|
Bus Topology
|
Support
|
|
|
Tree Topology
|
Support
|
|
|
Mixed Topology
|
Support
|
|
|
ELECTRICAL CHARACTERISTICS
|
|
|
|
Input Voltage
|
DC12-55V/AC 100-240V 50-60HZ
|
|
|
Power Consumption
|
Non-PoE Total Power <10W,
|
|
|
|
With PoE < 120W (Full Load)
|
|
|
POE SUPPORT (OPTIONAL POE FEATURE, SPECIFIC POWER CAN BE CUSTOMIZED ACCORDING TO CUSTOMER REQUIREMENTS)
|
|
|
|
PoE Port
|
1-8
|
|
|
PoE Protocol
|
802.3af, 802.3at
|
|
|
PoE Pinout
|
1,2,3,6
|
|
|
PoE Management Mode
|
Support
|
|
|
LAYER 2 SWITCHING
|
|
|
|
Swap Capacity
|
52G
|
|
|
Packet Forwarding Rate
|
26.8Mpps
|
|
|
MAC Address Table
|
16K
|
|
|
VLAN Support and Number
|
Supports 4096 VLAN ID
|
|
|
Report Buffer
|
8M
|
|
|
Forwarding Delay
|
<10us
|
|
|
Port Characteristics
|
Cross-Direct Adaptative
|
|
|
Flow Control
|
Support
|
|
|
Jumbo Frames
|
Support 10Kbytes
|
|
|
Spanning Tree Protocol
|
Support STP/RSTP/MSTP
|
|
|
Ethernet Ring Protocol
|
Support ERPS
|
|
|
Link Aggregation
|
Support 16 Group
|
|
|
Multicast
|
Support IGMP Snooping
|
|
|
Port Mirroring
|
Support
|
|
|
Storm Suppression
|
Support
|
|
|
Port Traffic Statistics
|
Support
|
|
|
Port Flow Statistics
|
Support
|
|
|
QINQ
|
Support
|
|
|
PROTECTION
|
|
|
|
IP Rating
|
IP40
|
|
|
Power Surge Protection
|
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
|
|
|
Network Port Surge Protection
|
IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
|
|
|
Radiated Immunity
|
IEC 61000-4-3 Level 3 (10V/m)
|
|
|
Instantaneous Pulse Immunity
|
IEC 61000-4-4 Level 3 (1V/2V)
|
|
|
Conduction Immunity
|
IEC 61000-4-6 Level 3 (10V/m)
|
|
|
Power Supply Frequency Magnetic Field Immunity
|
IEC 61000-4-8 Level 4 (30A/m)
|
|
|
Voltage Drop
|
IEC 61000-4-11 Level 3 (10V)
|
|
|
EMI
|
Class A
|
|
|
Electrostatic Discharge (ESD) Immunity
|
IEC61000-4-2 Level 4 (15KV/30KV)
|
|
|
Free Fall
|
0.5m
|
|
