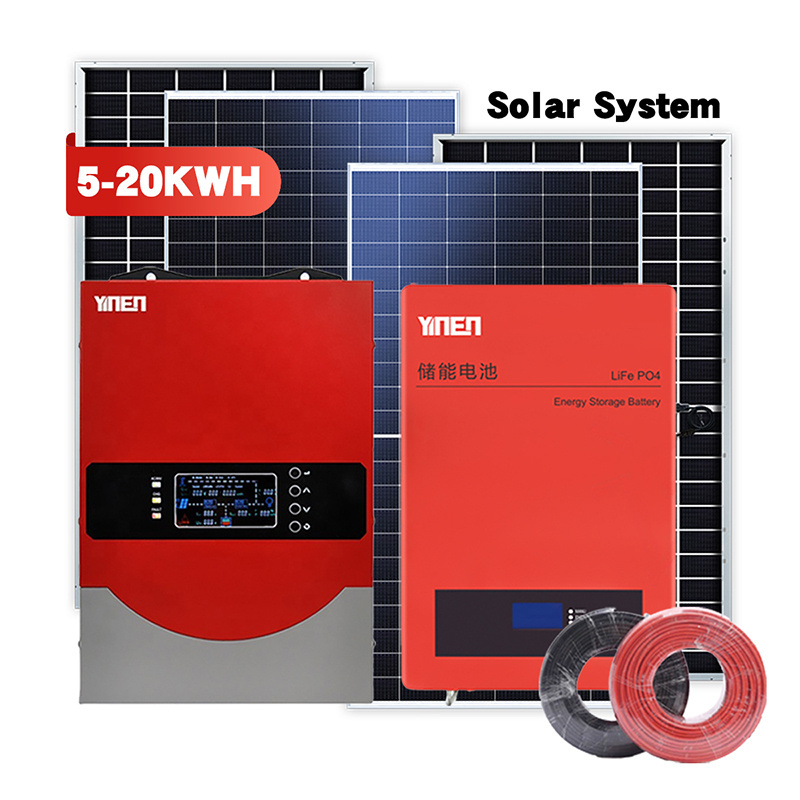

20kwh 50kwh Wall hung house hold 5kw photovoltaic energy storage system with 5kw load for one day

20kwh 50kwh Wall hung house hold 5kw photovoltaic energy storage system with 5kw load for one day

FOB Reference Price: Get Latest Price

≥1 Sets

US $996

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: CE/TUE, TUV/CE

Place of Origin:: Anhui, China

Brand Name:: YINEN

Model Number:: 5KW/10KW/20KW Off Grid Solar System

Output Voltage (V):: 110V/220V

Output Frequency:: 50/60HZ

Work Time (h):: 24

Product name:: Off-grid Solar Power System

Work Time:: 24

Solar system type:: Off-grid solar system

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon, Polycrystalline Silicon

Battery Type:: Lithium Ion

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: CE/TUE, TUV/CE

Place of Origin:: Anhui, China

Brand Name:: YINEN

Model Number:: 5KW/10KW/20KW Off Grid Solar System

Output Voltage (V):: 110V/220V

Output Frequency:: 50/60HZ

Work Time (h):: 24

Product name:: Off-grid Solar Power System

Work Time:: 24

Solar system type:: Off-grid solar system

Product Details

Product Parameters

Specification	5KWH			10KWH	20KWH
Specification		48V/5KW	48V/5KW	48V/10KW	96V/20KW	48V/20KW
Photovoltaic Panel	46.9V/550W	46.9V/550W	46.9V/550W	46.9V/550W	46.9V/550W
		6pcs	8pcs	8pcs	16pcs	24pcs
		2S3P	2S4P	2S4P	4S4P	4S6P
		3300W	4400W	4400W	8800W	13200W
Hybrid inverter	51.2V/5000W	51.2V/5000W	51.2V/6000W	96V/10KW	(48V/10KW)*2
		Max. PV 5.12KW	Max. PV 5.12KW	Max. PV 5.12KW	Max. PV 9.6KW	Max. PV 16KW
		PV Opencircuit voltage 80V-240VDC	PV Opencircuit voltage 80V-240VDC	PV Open circuit voltage 80V-240VDC	PV Open circuit voltage 160V-240VDC	PV Open circuit voltage 100V-500VDC
Lithium battery	(51.2V/102AH)*1	(51.2V/102AH)*1	(51.2V/102AH)*2	(51.2V/102AH)*4	(51.2V/102AH)*4
Lithium battery		Lithium iron phosphate, Lithium ternary, AGM battery Customized
PV cable	4m²(Black and red 50 meters each)	4m²(Black and red 50 meters each)	4m²(Black and red 50 meters each)	4m²(Black and red 200 meters each)	4m²(Black and red 100 meters each)
Combiner box	(Optional)	(Optional)	(Optional)	(Optional)	(Optional)
RS485 communication	PC remote, mobile APP:GPRS/IF/Ethernet/PC upper computer (optional)

Photovoltaic Panel

High Power Density

Lower loss, higher power output

Durability Half-cut cells boost solar panel performance effectively, reduces the risk of hidden cracks and broken gates

PID Resistance Excellent resistance to PID, can effectively ensure the system power generation

Quality Assurance 15 years product warranty

Weight 　　　　　　　　　　　　29.0kg

Dimensions　　　　　 2278x1134x35mm

Cell Type Mono Crystalline　　　　　 182x91mm

Number Of Cells 　　　　　　　　144（6x24）

Glass 　　　　3.2mm Tempered Low Iron Glass

Frame　　　　　　　　　　　 Aluminum Alloy

Junction Box 　　　　　　　Split Junction Box

Connector 　　　　　　　　　Mc4 Compatible

Output Cables 　　　　　4m²,Customized Length

Operating Temperature　　　　　　 -40~+85℃

Number Of Bypass Diodes　　　　　　　　　 3

Maximum System Voltage 　　　　　VDC1500V

5KW 6KW Hybrid Inverter Built-in MPPT Solar Controller

Comprehensive Protection With over charge, over discharge, over temperature, overload and other compr ehensive protection functions.

Strong Compatibility Compatible with lead-acid battery, ternary lithium battery, lithium iron phosphate and other battery types.

Provide Communication RS485 communication, you can view and set charging control, inverter and other operating parameters through PC/APP.

Weight　　　　　　　　　　　　　　　　44Kg

Dimension　　　　　　　　　 338*220*552mm

Rated Power　　　　　　　　　　　　 5000W

Maximum System Voltage 　　　　　　　1500V

Maximum Inverter Efficiency 　　　　　　＞92%

MPPT Efficiency 　　　　　　　　　　﹥99.5%

Battery Type　　　　　　　　　　　 Pmax+3%

Display Mode　　　　　　　　 LCD Color Screen

Working Environment 　　　　　　-25℃ ～+55℃

Use Environment 　　　　Derating Above 3000m

Class Of Protection 　　　　　　　　　　　IP21

Humidness　　　　 10% ~ 90% No Condensation

10KW 12KW Hybrid Inverter Built-in MPPT Solar Controller

Dual-channel MPPT High PV utilization

DC over matching 1.5 times Improve the overall system income.

6 parallel capacity expansion Better compatibility .

Compatible with lithium/lead-acid battery, More ﬂexible conﬁguration.

Efficiency: 97.5%

Numbers of MPPT: 4

Max. output Power: 10KVA

Nominal output Voltage: 220V

Norminal AC Voltage: 220V

Max. AC Input current: 100A

Max. Battery Charging/discharge: 200A

5KWH Wall-mounted battery

Brand-new grade A+ cells ≥6000 times long cycle life

Compact size, Easy Installation

Supports a maximum of 16 batteries in parallels

Compensive BMS to Match all Hybrid Inverters

Convenient RS485,CAN BUS Communication, optional blue tooth

Weight 　　　　　　　　　　　　　　　　33Kg

Rated Capacity 　　　　　　　　　　　　102Ah

Dimension　　　　　　　　　 600×400×178mm

Rated Voltage　　　　　　　　　　　　　 48Ｖ

Cycle Life 　　　　　　　　　　　≥5000cycles

Maximum expansion　　　　　　　　 16 groups

Maximum continuous current　　　　　　 100A

Transient Discharge Current　　　　　　　 110A

Charging cut-off Voltage　　　　　　　　 58.4V

Discharge cut-off voltage　　　　　　　　　 40V

Discharge Temperature 　　　　　　-30~＋60℃

Charging Temperature　　　　　　 -10~＋55℃

Packaging & Logistics

Production Process

Application

Customer Photos

Certifications

FAQ

1. How to install and use the product?

We have the English teaching manual and videos; All the videos about every step of machine
Disassembly, assembly, operation will be sent to our customers.

2. What if I don't have export experience?

We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.

3. How is your technical support?

We provide lifetime online support through WhatsApp/ WeChat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.

4. How can I make sure it's a secure transaction?

Alibaba can protect buyers' interest, all of our transaction will go through Alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you confirm the detailed information, Alibaba will release us the money.

5. Can you get the product customized for us?

Of course, brand name, machine color, designed unique patterns available for customization. 6. How to become your agent? Contact us through Alibaba, we will give you the best price and look forward to your greetings.
