Quick Details
-
Brand Name:
-
SEMRI
-
Material:
-
Chrome steel
-
Product name:
-

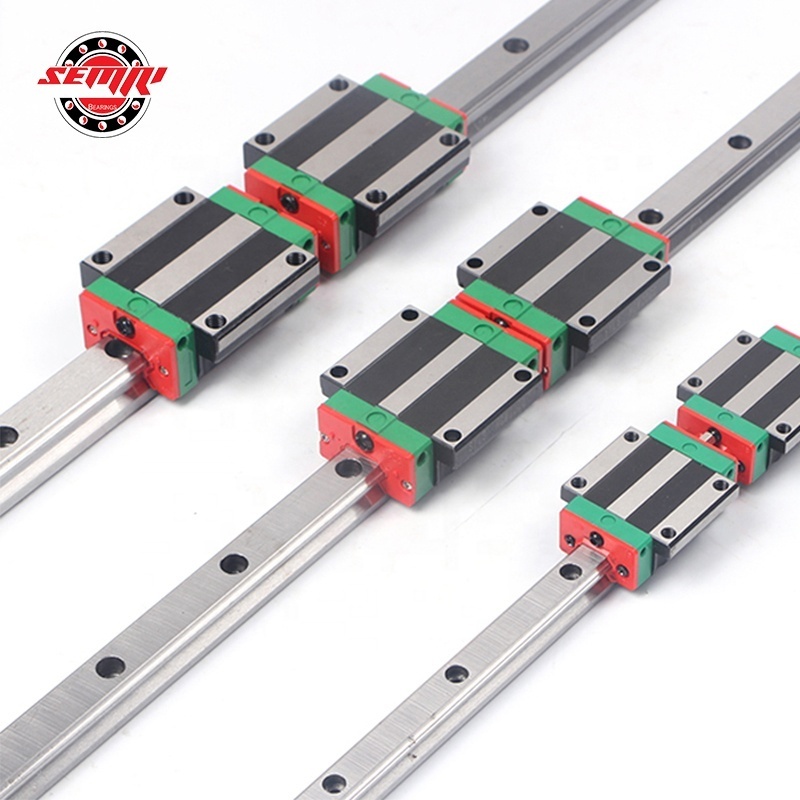

Original CNC Machine Slide Block HGR20 Linear Guide Rail 3000mm
-
Color:
-
Silver
-
Feature:
-
Interchangeable
-
Performance:
-
Smooth Linear Guide Rail
-
Application:
-
CNC Machine
-
Type:
-
linear guide
-
Inside Diameter:
-
20 mm
-
Outside Diameter:
-
44 mm
-
Thickness:
-
30 mm
-
Structure:
-
Slide Rail + Slide Block
Quick Details
-
Weight (KG):
-
10
-
Model Number:
-
HGH20
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SEMRI
-
Material:
-
Chrome steel
-
Product name:
-
Original CNC Machine Slide Block HGR20 Linear Guide Rail 3000mm
-
Color:
-
Silver
-
Feature:
-
Interchangeable
-
Performance:
-
Smooth Linear Guide Rail
-
Application:
-
CNC Machine
-
Type:
-
linear guide
-
Inside Diameter:
-
20 mm
-
Outside Diameter:
-
44 mm
-
Thickness:
-
30 mm
-
Structure:
-
Slide Rail + Slide Block
Product Description
Linear bearings generally use a pad, bushing, or roller system to carry a load on a rail that need not be a straight line. The
rail can be most any length, although that dimension is limited by the actuator.
rail can be most any length, although that dimension is limited by the actuator.
|
Product Name
|
Original CNC Machine Slide Block Bearing HGH20 Linear Guide Rail 3000mm
|
|
Model
|
HGH20
|
|
Size
|
20x44x30 mm
|
|
Type
|
Linear Guide Rail
|
Application
Specification
|
Part number
|
H
|
W
|
B
|
C
|
L
|
M x l
|
|
HGH 15 CA
|
28
|
34
|
26
|
26
|
61,4
|
M4x5
|
|
HGH 20 CA
|
30
|
44
|
32
|
36
|
77,5
|
M5x6
|
|
HGH 20 HA
|
30
|
44
|
32
|
50
|
90,3
|
M5x6
|
|
HGH 25 CA
|
40
|
48
|
35
|
35
|
83
|
M6x8
|
|
HGH 25 HA
|
40
|
48
|
35
|
50
|
103,6
|
M6x8
|
|
HGH 30 CA
|
45
|
60
|
40
|
40
|
97,4
|
M8x10
|
|
HGH 30 HA
|
45
|
60
|
40
|
60
|
120,4
|
M8x10
|
|
HGH 35 CA
|
55
|
70
|
50
|
50
|
112,4
|
M8x12
|
|
HGH 35 HA
|
55
|
70
|
50
|
72
|
138,2
|
M8x12
|
|
HGH 45 CA
|
70
|
86
|
60
|
60
|
138
|
M10x17
|
|
HGH 45 HA
|
70
|
86
|
60
|
80
|
169,8
|
M10x17
|
|
HGH 55 CA
|
80
|
100
|
75
|
75
|
165,7
|
M12x18
|
|
HGH 55 HA
|
80
|
100
|
75
|
95
|
203,8
|
M12x18
|
|
HGH 65 CA
|
90
|
126
|
76
|
70
|
198,2
|
M16x20
|
|
HGH 65 HA
|
90
|
126
|
76
|
120
|
257,6
|
M16x20
|
