Quick Details
-
Table Travel (Z) (mm):
-
50 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Positioning Accuracy (X axis) mm:
-
0.01
-
Positioning Accuracy (Y axis) mm:
-
0.01
-
Positioning Accuracy (Z axis) mm:
-
0.01
-
Range of Spindle Speed(r.p.m):
-
175 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luxing
-
Voltage:
-
Customized, Customized
-
Dimension(L*W*H):
-
1400*1400*2250
-
Weight (T):
-
2 T
-
Product name:
-
cylinder boring machine
-
Model:
-
T8018B(T8018A)
-
Processing diameter:
-
30-180mm
-
Max. boring depth:
-
300mm
-
Spindle Speed r/min:
-
175,230,300,350,460,600
-
Spindle Feed mm/r:
-
0.05,0.10,0.20
-
Main Motor Power kw:
-
3.75kw
-
N.W/G.W kg:
-
2000/2100
-
Brand:
-
Luxing
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
800 mm
-
Table Travel (Y) (mm):
-
100 mm
-
Table Travel (Z) (mm):
-
50 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Positioning Accuracy (X axis) mm:
-
0.01
-
Positioning Accuracy (Y axis) mm:
-
0.01
-
Positioning Accuracy (Z axis) mm:
-
0.01
-
Range of Spindle Speed(r.p.m):
-
175 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luxing
-
Voltage:
-
Customized, Customized
-
Dimension(L*W*H):
-
1400*1400*2250
-
Weight (T):
-
2 T
-
Product name:
-
cylinder boring machine
-
Model:
-
T8018B(T8018A)
-
Processing diameter:
-
30-180mm
-
Max. boring depth:
-
300mm
-
Spindle Speed r/min:
-
175,230,300,350,460,600
-
Spindle Feed mm/r:
-
0.05,0.10,0.20
-
Main Motor Power kw:
-
3.75kw
-
N.W/G.W kg:
-
2000/2100
-
Brand:
-
Luxing

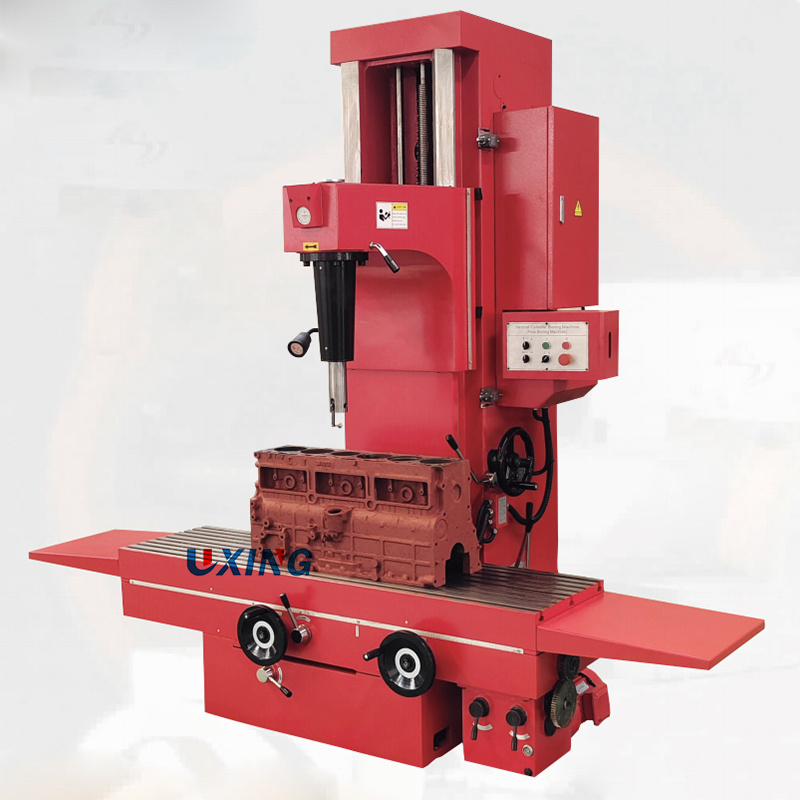

T8018A T8018B T8018C China Cylinder block boring machine tool for Sale
Machine main spedifications:
|
Main Specifications
|
T8018A
|
T8018B
|
T8018C
|
|
Processing Diameter mm
|
30-180
|
30-180
|
42-180
|
|
Max Boring Depth mm
|
300
|
300
|
500
|
|
Spindle Speed r/min
|
Infinitely variable
|
175,230,300,350,460,600
|
175,230,300,350,460,600
|
|
Spindle Feed mm/r
|
0.05,0.10,0.20
|
0.05,0.10,0.20
|
0.05,0.10,0.20
|
|
Main Motor Power kw
|
3.75
|
3.75
|
3.75
|
|
Overall Dimensions mm
(L x W x H)
|
2000 x 1235 x 1920
|
2000 x 1235 x 1920
|
2680 x 1500x 2325
|
|
Packing Dimensions mm
(L x W x H)
|
1370 x 1440 x 2220
|
1370 x 1370 x 2220
|
1578 x 1910 x 2575
|
|
N.W/G.W kg
|
1960/2110
|
1950/2100
|
3500/3700
|
Details:
T8018A:
T8018C:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
