Quick Details
-
Brand Name:
-
worldsunlight
-
Model Number:
-
WSSCC-4
-
Work Time (h):
-
24H
-
Max PV Power:
-
1500W
-
Max PV Voltage:
-
50V
-
Certificate:
-
CE
-
Warranty:
-
1 YEAR, 2 Years
-
Product name:
-
Charger Controller
-
Rated Voltage:
-
12V/ 24V auto adapt
-
Maximum Current:
-
30A 40A 60A 80A 100A
-
Charging Mode:
-
MPPT
-
Control Type:
-
Time/Light Control
-
Max solar input:
-
41V
-
Display:
-
LCD Screen
-
Operating temperature:
-
-35℃ ~+60℃
-
Output Voltage (V):
-
12V/24V
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
worldsunlight
-
Model Number:
-
WSSCC-4
-
Work Time (h):
-
24H
-
Max PV Power:
-
1500W
-
Max PV Voltage:
-
50V
-
Certificate:
-
CE
-
Warranty:
-
1 YEAR, 2 Years
-
Product name:
-
Charger Controller
-
Rated Voltage:
-
12V/ 24V auto adapt
-
Maximum Current:
-
30A 40A 60A 80A 100A
-
Charging Mode:
-
MPPT
-
Control Type:
-
Time/Light Control
-
Max solar input:
-
41V
-
Display:
-
LCD Screen
-
Operating temperature:
-
-35℃ ~+60℃
-
Output Voltage (V):
-
12V/24V
Specification

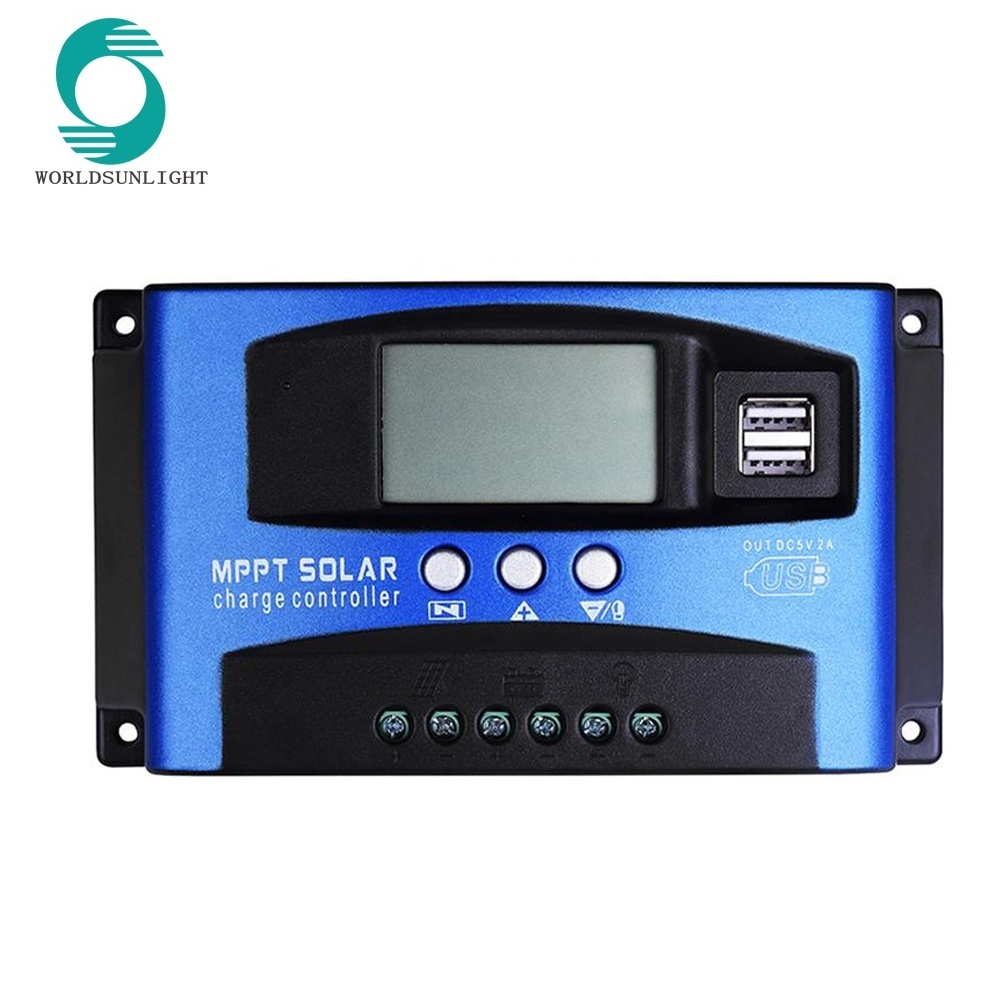

Product Name: LCD solar controller
Material: ROHS+ABS
Size: about 168*94*35mm/6.61*3.70*1.38in
Model: WSSCC-4
System voltage: 12 / 24V adaptive
Rated charging current: 30a | 40a | 50a| 60a | 100a
Rated discharge current: 10a | 20a | 20a | 30a | 30a
Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36 solar panel
Full Voltage Value : Lithium Battery (12.2V) | B02 Colloidal Battery (14.2V) | B03 Open Cell (14.6V)
Floating Charge Voltage : 13.7 V ( Default, Adjustable )
Discharge cut-off voltage::10.7 V ( default, adjustable )
Discharge recovery voltage: 12.6 V ( default, adjustable )
Standby current :10mA
USB Output : 5V / 2A MAX
Operating temperature:- 35 - 60
Note:
Make sure the battery has enough voltage so that the controller can identify the battery before the first installation.
The solar controller is only suitable for lead-acid batteries, such as open type, AGM, gel, etc.
Not suitable for Ni - MH batteries, Li - ion batteries or other batteries.
SOLAR Charge Controller Delivery Time:
1-10 days after confirming order,detail delivery date should be decided according to production season and order quantity.
SOLAR Charge Controller Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Q: If I'm interested in your
SOLAR Charge Controller
when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your
SOLAR Charge Controller
quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 10 days.
Q:How's the warranty period for your
SOLAR Charge Controller
?
A:We offer two year warranty for our customer.
